🔧 Elantra - Water Pump Replacement

The water pump circulates coolant through your engine and radiator. When it leaks or the bearing wears out, you can get overheating, coolant loss, or a squealing/grinding noise. On your Elantra, the water pump is driven by the accessory belt, so you’ll remove the belt and pump, then refill and bleed the cooling system.

Difficulty Level: Intermediate | Estimated Time: 2.5-4.5 hours

Assumption: 1.8L Nu engine with belt-driven water pump.

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap on a hot engine; hot coolant can spray and burn you.
• ⚠️ Support the car with jack stands; never rely on a floor jack alone.
• ⚠️ Keep coolant off belts and pulleys; it can cause slipping and noise.
• ⚠️ Coolant is toxic; catch it in a drain pan and dispose of it properly.
• ⚠️ Battery disconnect is not required, but keep hands/tools away from the radiator fan area.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 2 gallons)
• Funnel
• Shop rags
• Plastic trim clip tool
• Flathead screwdriver
• 10mm socket
• 12mm socket
• 14mm socket
• 17mm socket
• 3/8" ratchet
• 3/8" torque wrench (10–80 ft-lbs range)
• 3/8" breaker bar
• Serpentine belt tool or 14mm wrench
• Pliers (hose clamp pliers preferred)
• Gasket scraper (plastic)
• Brake cleaner spray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket / O-ring (as equipped) - Qty: 1
• Hyundai-compatible P-OAT long-life coolant (50/50 premix) - Qty: 2 gallons
• Accessory drive belt (serpentine belt) - Qty: 1
• Hose clamp(s) (optional if originals are weak) - Qty: 1-2

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool fully (ideally 2+ hours) so the cooling system is not pressurized.
• Move the HVAC controls to HOT (this helps purge air later).
• Raise the front-right corner with a floor jack and support it with jack stands.
• Remove the right-front wheel using a 21mm lug socket (if your lug size differs, match the socket to your lug nuts).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the splash shield for access

• Use a plastic trim clip tool and 10mm socket to remove the right-front inner fender/splash shield fasteners.
• Pull the shield back to expose the accessory belt area.

Step 2: Drain the coolant

• Place a drain pan under the radiator drain area.
• Slowly loosen the coolant reservoir cap by hand to release any leftover pressure.
• Open the radiator drain cock (drain valve) using a flathead screwdriver if needed, and let coolant drain fully.
• Close the drain cock once flow slows to a drip.
• Tip: Save your driveway with cardboard under the pan.

Step 3: Remove the accessory drive belt

• Locate the belt tensioner.
• Use a serpentine belt tool or 14mm wrench to rotate the tensioner and relieve belt tension.
• Slide the belt off a smooth pulley first, then remove it.
• Tip: Snap a photo of belt routing first.

Step 4: Remove the water pump pulley

• Hold the pulley from turning (hand pressure or careful counter-hold) and remove the pulley bolts using a 10mm socket.
• Remove the pulley and set it aside.
• Torque on install: 10 Nm (7 ft-lbs)

Step 5: Disconnect any hoses that block the pump (if equipped)

• Use pliers (hose clamp pliers preferred) to move spring clamps back on the hose.
• Twist the hose gently to break it free, then pull it off.
• Catch any remaining coolant in the drain pan.
• Tip: Don’t pry on plastic fittings.

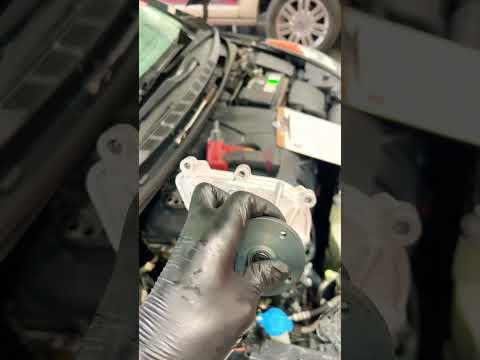

Step 6: Remove the water pump

• Remove the water pump mounting bolts using a 12mm socket (some locations may use 10mm socket depending on bolt style).
• Pull the water pump straight off the engine.
• Remove the old gasket/O-ring.

Step 7: Clean the sealing surface

• Use a plastic gasket scraper to remove old gasket material without gouging the aluminum surface.
• Spray a rag with brake cleaner spray and wipe the surface clean and dry.
• Tip: Clean surface = no leaks.

Step 8: Install the new water pump

• Install the new gasket/O-ring on the new pump (match the original orientation).
• Position the pump and hand-start all mounting bolts.
• Tighten evenly in a crisscross pattern using a 12mm socket.
• Torque to 22 Nm (16 ft-lbs) for water pump mounting bolts.

Step 9: Reinstall hoses and the pulley

• Reinstall any removed hoses and position clamps with pliers.
• Reinstall the water pump pulley and start bolts by hand.
• Tighten pulley bolts with a 10mm socket and finish with a torque wrench.
• Torque to 10 Nm (7 ft-lbs)

Step 10: Install the accessory belt

• Route the belt according to your under-hood diagram (or the photo you took).
• Use a serpentine belt tool or 14mm wrench to rotate the tensioner and slip the belt onto the last pulley.
• Double-check that the belt is centered on every pulley groove.

Step 11: Reinstall splash shield and wheel

• Reinstall the splash shield using a plastic trim clip tool and 10mm socket.
• Reinstall the wheel and snug lug nuts using a 21mm lug socket.
• Lower the car and torque lug nuts with a torque wrench.
• Torque to 90 Nm (66 ft-lbs)

Step 12: Refill and bleed the cooling system

• Make sure the radiator drain cock is closed (use flathead screwdriver if needed).
• Fill the coolant reservoir to the MAX line using a funnel and P-OAT 50/50 premix coolant.
• Start the engine and let it idle with the heater set to HOT and fan on low.
• As the engine warms up, watch the coolant level and add as needed.
• Once the radiator fan cycles on/off and the heater blows hot, shut the engine off and let it cool.
• Recheck level and top off to the MAX line.
• Tip: Small bubbles are normal at first.

---

✅ After Repair

• Start the engine and inspect around the water pump for leaks with a bright light.
• Listen for belt squeal; if present, re-check belt alignment on pulleys.
• Take a 10–15 minute test drive, then re-check coolant level after the engine cools.
• Check for coolant smell or drips over the next 2–3 days.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$950 (parts + labor)

DIY Cost: $90-$260 (parts only)

You Save: $290-$860 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
