🔧 Grand Caravan - Water Pump Replacement

Your Grand Caravan’s water pump circulates coolant through the engine and radiator. When it leaks or the bearing fails, you can get overheating, coolant loss, and engine damage if you keep driving it.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

Assumption: 3.6L Pentastar layout is stock with no aftermarket parts.

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant system hot; wait until fully cold.
• ⚠️ Support the van with jack stands; never rely on a floor jack.
• ⚠️ Disconnect the negative battery cable before alternator wiring work.
• ⚠️ Keep coolant off skin/paint; clean spills immediately (pets are attracted to it).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 3-gallon)
• Funnel
• Trim clip removal tool
• Ratchet 3/8" drive
• Ratchet 1/2" drive
• Socket set 8mm-18mm
• Wrench set 10mm-18mm
• Serpentine belt tool 1/2" drive
• Torx bit set T20-T30
• Torque wrench 10-80 ft-lbs
• Torque wrench 80-250 in-lbs
• Gasket scraper plastic
• Shop rags
• Brake cleaner spray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump (with seal/O-ring) - Qty: 1
• Engine coolant (OAT, 50/50 premix) - Qty: 2-3 gallons
• Serpentine belt - Qty: 1
• Fresh hose clamps (assorted) - Qty: 1 kit

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (radiator hoses should feel cold).
• Disconnect the battery: use a 10mm socket to remove the negative cable and isolate it.
• Raise the front and support it on jack stands under the front pinch welds/subframe points.
• Tip: Take a photo of the belt routing sticker.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the right-front access panels

• Use a floor jack (rated 3-ton minimum) and jack stands (rated 3-ton minimum) to safely support the van.
• Use a trim clip removal tool and 8mm socket to remove the right-front splash shield/inner fender fasteners.
• This opens access to the belt drive area.

Step 2: Drain the coolant

• Place a drain pan (at least 3-gallon) under the radiator drain area.
• Slowly remove the coolant reservoir cap by hand (only when cold).
• Drain coolant from the radiator drain (petcock) if accessible; if not, use pliers on the lower radiator hose clamp and carefully crack the hose loose to drain.
• Tip: Aim the stream with cardboard to reduce mess.

Step 3: Remove the air intake ducting (for working room)

• Use an 8mm socket to loosen the hose clamps on the intake tube.
• Remove any resonator/duct clips by hand and lift the ducting out.

Step 4: Remove the serpentine belt

• Install a serpentine belt tool 1/2" drive (or a 1/2" drive ratchet) on the belt tensioner.
• Rotate the tensioner to relieve belt tension, then slide the belt off the nearest easy pulley.
• Remove the belt from all pulleys and set it aside.
• Serpentine belt tool = long handle for tight spaces.

Step 5: Remove the alternator (to access the water pump)

• Unplug the alternator electrical connector by hand.
• Use a 10mm socket to remove the alternator B+ terminal nut, then move the cable aside.
• Use a 15mm socket and ratchet 3/8" drive to remove the alternator mounting bolts.
• Lift the alternator out.
• Torque to 54 Nm (40 ft-lbs) for alternator mounting bolts (during install).
• Torque to 9 Nm (80 in-lbs) for alternator B+ nut (during install).

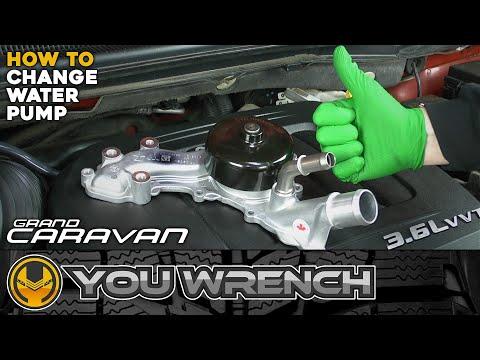

Step 6: Remove the water pump

• Place the drain pan (at least 3-gallon) under the water pump area (more coolant will spill).
• Use an 8mm socket or 10mm socket (varies by fastener) to remove the water pump bolts.
• Pull the water pump straight outward. If it’s stuck, gently work it free by hand—do not pry aggressively against the aluminum timing cover.
• Remove the old seal/O-ring if it stayed in the engine side.

Step 7: Clean the sealing surface

• Use a gasket scraper plastic to remove any residue on the timing cover surface.
• Wipe with shop rags and use brake cleaner spray to leave the surface clean and dry.
• Tip: No gouges—aluminum scratches cause leaks.

Step 8: Install the new water pump

• Confirm the new pump has the seal/O-ring installed correctly and lightly moisten it with fresh coolant.
• Position the pump and start all bolts by hand to avoid cross-threading.
• Tighten evenly in a crisscross pattern using an inch-pound torque wrench.
• Torque to 12 Nm (105 in-lbs) for water pump bolts.

Step 9: Reinstall the alternator

• Set the alternator in place and install bolts by hand first using a 15mm socket.
• Torque to 54 Nm (40 ft-lbs) for alternator mounting bolts.
• Reconnect the B+ cable using a 10mm socket: Torque to 9 Nm (80 in-lbs).
• Reconnect the alternator plug by hand until it clicks.

Step 10: Install the serpentine belt

• Route the belt around the pulleys following the under-hood belt diagram.
• Use the serpentine belt tool 1/2" drive to rotate the tensioner and slip the belt onto the last pulley.
• Visually confirm the belt ribs are seated in every pulley groove.

Step 11: Reinstall splash shield and intake ducting

• Reinstall the splash shield using the trim clip removal tool and 8mm socket.
• Reinstall the intake ducting and tighten clamps using an 8mm socket.

Step 12: Refill and bleed the cooling system

• Lower the van safely using the floor jack (rated 3-ton minimum).
• Reconnect the battery negative cable using a 10mm socket.
• Fill the reservoir slowly with engine coolant (OAT, 50/50 premix) using a funnel.
• If equipped with a bleeder screw near the upper hose/coolant outlet, open it carefully using the appropriate socket set 8mm-18mm until coolant flows without bubbles, then close it.
• Start the engine and set HVAC to full heat. Let it idle while watching the temperature gauge.
• Top off coolant as the level drops. Shut off engine, let it cool, and recheck the level again.

---

✅ After Repair

• Inspect for leaks around the water pump and hose connections with the engine running.
• Verify the heater blows hot air (a sign coolant is circulating).
• Test drive 10-15 minutes, then recheck for leaks and recheck coolant level after a full cool-down.
• If the temperature rises abnormally, stop and shut down immediately.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $120-$260 (parts only)

You Save: $530-$790 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
