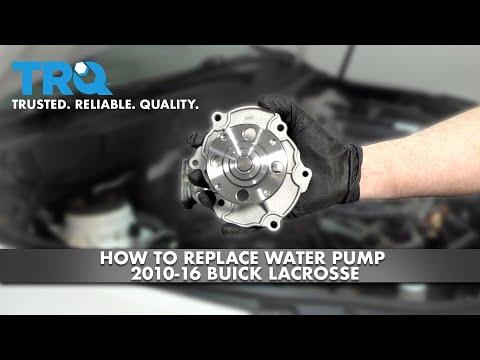

🔧 LaCrosse - Water Pump Replacement

On your LaCrosse, the water pump circulates coolant through the engine and radiator. When it leaks or the bearing wears out, you can get coolant loss, overheating, or a grinding noise from the belt area.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: 3.6L uses an external, belt-driven water pump.

---

⚠️ Safety & Precautions

• 🛑 Work on a fully cool engine to avoid burns from hot coolant.
• 🛑 Support the car with jack stands—never rely on a jack alone.
• 🛑 Keep coolant off belts and electrical connectors; coolant is slippery and harmful to pets.
• 🛑 Wear safety glasses and nitrile gloves.
• 🛑 Battery disconnect is not required, but avoid contacting the starter/positive terminals with tools.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 10-quart)
• Funnel
• Socket set 8mm-18mm
• Ratchet 3/8" drive
• Ratchet 1/2" drive
• Extensions 3" and 6"
• Torque wrench 10-150 ft-lbs
• Serpentine belt tool 3/8" drive (specialty)
• Torx bit set T20-T30
• Trim clip removal tool
• Gasket scraper (plastic)
• Brake cleaner spray
• Shop towels
• Paint marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket / O-ring seal - Qty: 1
• Engine coolant (Dex-Cool compatible, 50/50 premix) - Qty: 2-3 gallons
• Serpentine belt - Qty: 1 Replace if cracked or coolant-soaked
• Hose clamp(s) - Qty: 1-2 If any are damaged

---

📋 Before You Begin

• 🧰 Park on level ground, set the parking brake, and chock the rear wheels.
• 🧰 Let the engine cool completely (upper radiator hose should feel cool).
• 🧰 Put a large drain pan (at least 10-quart) under the front of the engine.
• 🧰 Use a paint marker to sketch the belt routing before removal.
• 🧰 A “serpentine belt tool” is a long handled bar that fits the belt tensioner to release belt tension safely.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front and remove the splash shield

• Use floor jack (rated 3-ton minimum) at the front lift point and place the car on jack stands (rated 3-ton minimum).
• Use wheel chocks at the rear tires.
• Remove the lower engine splash shield (if equipped) using a trim clip removal tool and socket set 8mm-18mm with a ratchet 3/8" drive.

Step 2: Drain the coolant

• Place the drain pan (at least 10-quart) under the radiator drain area.
• Slowly open the coolant surge tank cap to relieve any leftover pressure.
• Drain coolant (use the radiator drain if accessible; otherwise disconnect the lower radiator hose).
• If removing a hose, use socket set 8mm-18mm for any clamps/brackets and position the hose into the drain pan.

Step 3: Remove the serpentine belt

• Use a serpentine belt tool 3/8" drive (specialty) on the belt tensioner to rotate it and release belt tension.
• Slip the belt off one pulley, then release the tensioner slowly. Release slowly to avoid snapping back.
• Remove the belt from the remaining pulleys and set it aside (replace if worn or coolant-soaked).

Step 4: Remove any access covers / brackets blocking the pump

• Depending on exact accessory layout, remove any small shields/brackets near the pump using socket set 8mm-18mm, extensions 3" and 6", and ratchet 3/8" drive.
• If you encounter Torx fasteners, remove them with a Torx bit set T20-T30.

Step 5: Remove the water pump pulley

• Hold the pulley from turning by keeping the belt snug around it (or hold carefully by hand) and remove pulley bolts using socket set 8mm-18mm and ratchet 3/8" drive.
• Remove the pulley and set it aside.
• On reassembly, typical small pulley bolts are Torque to 10 Nm (89 in-lbs).

Step 6: Remove the water pump

• Put the drain pan (at least 10-quart) directly under the pump—more coolant will spill.
• Remove water pump bolts using socket set 8mm-18mm, extensions 3" and 6", and ratchet 3/8" drive.
• Pull the pump straight off. If it’s stuck, gently tap it with your hand—do not pry hard against aluminum surfaces.

Step 7: Clean the sealing surface

• Use a gasket scraper (plastic) to remove old gasket material without gouging the metal.
• Spray a towel with brake cleaner spray and wipe the surface clean using shop towels.
• Clean the bolt holes and surrounding area so the new gasket can seal.

Step 8: Install the new water pump and gasket

• Install the new gasket/O-ring onto the new pump (match the old orientation).
• Position the pump on the engine and start all bolts by hand to avoid cross-threading.
• Tighten bolts evenly in a crisscross pattern using a torque wrench 10-150 ft-lbs.
• Typical water pump bolt spec is Torque to 10 Nm (89 in-lbs), then recheck all fasteners. Snug first, then torque evenly.

Step 9: Reinstall pulley, brackets, and belt

• Reinstall the water pump pulley and tighten bolts using a torque wrench 10-150 ft-lbs: Torque to 10 Nm (89 in-lbs).
• Reinstall any brackets/covers using socket set 8mm-18mm and Torx bit set T20-T30 as needed.
• Route the belt using your under-hood diagram (and your paint marks).
• Use the serpentine belt tool 3/8" drive (specialty) to move the tensioner, slip the belt on, then release tension slowly.

Step 10: Reinstall splash shield and lower the car

• Reinstall the lower splash shield using a trim clip removal tool and socket set 8mm-18mm.
• Raise slightly with the floor jack (rated 3-ton minimum), remove jack stands (rated 3-ton minimum), and lower the car.

Step 11: Refill and bleed the cooling system

• Refill the surge tank slowly using a funnel with Engine coolant (Dex-Cool compatible, 50/50 premix).
• If your engine has an air bleed screw near the thermostat housing, open it with the appropriate bit from your socket set 8mm-18mm or Torx bit set T20-T30 (varies), then close it when coolant flows steadily (no bubbles).
• Start the engine and set HVAC to full heat. Let it idle while watching temperature.
• Top off coolant as the level drops. Do not overfill.
• Shut off, let it cool, and recheck level again. Coolant level can drop after first drive.

---

✅ After Repair

• 🧪 Check for leaks around the water pump, hose connections, and under the car.
• 🧪 Verify the belt is centered on every pulley while idling.
• 🧪 Drive 10-15 minutes, then recheck coolant level after a full cool-down.
• 🧪 If the temperature rises quickly or you get no cabin heat, shut it off and re-bleed air from the system.

---

💰 DIY vs Shop Cost

Shop Cost: $600-$1,200 (parts + labor)

DIY Cost: $120-$300 (parts only)

You Save: $480-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-6 hours.

---
