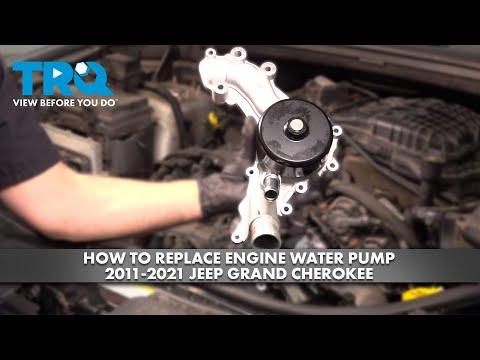

🔧 Water Pump - Replacement

The water pump circulates coolant through the engine so your Grand Cherokee stays at a safe temperature. On the 3.6L V6, the pump is driven by the serpentine belt, so you’ll remove the belt, swap the pump, then refill and bleed the cooling system.

Difficulty Level: Intermediate | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• Work only on a completely cold engine. Hot coolant can cause severe burns.
• Disconnect the negative battery cable before starting.
• Keep coolant away from belts and pulleys. Coolant contamination can damage the new belt.
• Support the vehicle securely if you need access from below.
• Do not run the engine with the cooling system low on coolant or with air trapped inside.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 10mm socket
• 13mm socket
• Ratchet
• Breaker bar
• Serpentine belt tool (specialty)
• Torque wrench
• Drain pan
• Funnel
• Pliers
• Pick tool
• Scraper
• Shop towels
• Safety glasses
• Nitrile gloves
• Jack and jack stands

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump assembly - Qty: 1
• Water pump gasket or seal - Qty: 1
• Engine coolant, HOAT/OAT compatible - Qty: 1-2 gallons
• Serpentine belt - Qty: 1
• Coolant drain plug seal - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine cool fully before opening the cooling system.
• Disconnect the negative battery cable with a 10mm socket.
• If you need access from below, raise the front and support it with jack stands.
• Take a photo of the belt routing first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Place a drain pan under the radiator drain area.
• Open the drain using pliers if needed.
• Remove the pressure cap only when the engine is fully cold.
• Drain enough coolant so the pump area will not spill when opened.

Step 2: Remove the intake duct and cover

• Use an 8mm socket to loosen the intake duct clamps or fasteners if they block access.
• Remove the engine cover by hand.
• Set the removed parts aside in order.

Step 3: Remove the serpentine belt

• Use a serpentine belt tool (specialty) or breaker bar on the tensioner.
• Rotate the tensioner to release belt tension.
• Slip the belt off the pulleys and remove it.
• Replace the belt if it is cracked or glazed.

Step 4: Remove access brackets or covers

• Use a 10mm socket and 13mm socket to remove any front brackets, covers, or hose supports that block the pump.
• Move hoses gently aside without kinking them.

Step 5: Remove the water pump

• Use a 10mm socket to remove the water pump bolts in a crisscross pattern.
• Break the pump loose and pull it straight out.
• Catch remaining coolant with the drain pan and shop towels.
• Remove the old gasket or seal with a pick tool.

Step 6: Clean the mounting surface

• Use a scraper to remove old gasket material from the engine surface.
• Do not gouge the aluminum.
• Wipe the area clean with shop towels.
• A flat, clean surface helps prevent leaks.

Step 7: Install the new water pump

• Install the new gasket or seal on the pump.
• Position the pump on the engine and start all bolts by hand.
• Use a 10mm socket and torque wrench to tighten the bolts evenly in a crisscross pattern.
• Torque to 12 Nm (106 in-lbs).

Step 8: Reinstall brackets and covers

• Reinstall any brackets, covers, or hose supports removed earlier.
• Use the same socket sizes and tighten them securely.

Step 9: Reinstall the serpentine belt

• Route the belt using the underhood belt diagram.
• Use the serpentine belt tool (specialty) or breaker bar to rotate the tensioner.
• Make sure the belt sits fully in every pulley groove.
• Double-check pulley alignment before starting.

Step 10: Refill and bleed the cooling system

• Close the drain plug.
• Use a funnel to fill with the correct coolant.
• Start the engine and set the heater to hot.
• Let it warm up while watching the coolant level.
• Add coolant as the level drops until it stabilizes.

Step 11: Final inspection

• Check the pump area, hoses, and drain area for leaks.
• Reconnect the battery using a 10mm socket.
• Recheck coolant level after the engine cools fully.

---

✅ After Repair

• Start the engine and watch the temperature gauge.
• Check for coolant leaks after a short test drive.
• Recheck coolant level the next day when the engine is cold.
• If the heater blows cold, there may still be air in the system.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $140-$280 (parts only)

You Save: $510-$770 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
