🔧 Maxima - Water Pump Replacement

On your Maxima, the engine water pump is driven by the timing chain and sits behind the front timing cover. That means replacing it is a major job: you’ll remove the belt drive parts, crank pulley, and the timing cover to access the pump.

Difficulty Level: Advanced | Estimated Time: 8-14 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine fully cool before opening the cooling system.
• ⚠️ Support the vehicle with jack stands on solid ground; never rely on a jack.
• ⚠️ The right-side engine mount area is involved; support the engine before removing any mount/bracket hardware.
• ⚠️ Disconnect the negative battery terminal to prevent accidental starts.
• ⚠️ Keep coolant off belts and electrical connectors; clean spills immediately.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 10-quart)
• Funnel
• Metric socket set 8mm-19mm
• Metric wrench set 8mm-19mm
• 3/8" drive ratchet
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20-250 ft-lbs range)
• 3/8" drive torque wrench (in-lb or low Nm range)
• Extensions (3", 6", 12")
• Universal joint adapter
• Serpentine belt tool (specialty)
• Crankshaft pulley holder tool (specialty)
• Crank pulley puller kit (specialty)
• Engine support bar (specialty)
• Trim clip removal tool
• Flat plastic scraper
• Razor scraper
• RTV sealant applicator nozzle
• Shop rags
• Brake cleaner spray
• Paint marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine water pump - Qty: 1
• Water pump O-ring / gasket (as applicable with pump) - Qty: 1
• Front timing cover RTV sealant (OEM-grade) - Qty: 1
• Engine coolant (Nissan-compatible, premix) - Qty: 2-3 gallons
• Crankshaft front oil seal - Qty: 1
• Serpentine drive belt - Qty: 1
• Accessory drive tensioner (recommended if high mileage) - Qty: 1
• Engine oil (recommended due to timing cover reseal work) - Qty: 6 quarts
• Oil filter - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Disconnect the negative battery cable using a 10mm socket.
• Plan for downtime: RTV sealant needs cure time before refilling/starting.
• Label bolts by location as you remove them.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm we’re replacing the correct “water pump”

• This procedure is for the engine coolant pump behind the front timing cover on your Maxima.
• Before I give you the bolt-by-bolt torque map and sealant bead pattern, tell me: is your leak coming from the front cover/water pump area, or are you doing this preventively?

Step 2: Raise the front and remove the right-front splash shielding

• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the right-front wheel using a 19mm socket.
• Remove the RH lower engine splash shield/inner fender clips using a trim clip removal tool and metric socket set 8mm-19mm.

Step 3: Drain coolant

• Place a drain pan (at least 10-quart) under the radiator drain.
• Open the radiator drain and reservoir cap carefully after the engine is cool.

Step 4: Remove the serpentine belt

• Relieve tension using a serpentine belt tool (specialty).
• Slip the belt off and note routing (take a photo).

Step 5: Support the engine (required for mount/bracket clearance)

• Install an engine support bar (specialty) across the strut towers and take the engine’s weight slightly.
• This keeps the engine from shifting when you remove brackets near the timing cover.

Step 6: Remove accessory components blocking the front cover

• Remove the RH side brackets and any obstructing accessories using a metric socket set 8mm-19mm, extensions (3", 6", 12"), and universal joint adapter.
• As bolts come out, mark their locations with a paint marker (lengths vary).
• When reinstalling these fasteners: Torque to Nissan FSM spec for that fastener.

Step 7: Remove the crankshaft pulley

• Hold the pulley with a crankshaft pulley holder tool (specialty).
• Loosen the crank bolt using a 1/2" drive breaker bar and appropriate metric socket.
• Remove the pulley with a crank pulley puller kit (specialty).
• On reassembly: Torque the crankshaft pulley bolt to Nissan FSM spec (critical).

Step 8: Remove the front timing cover

• Remove all front cover bolts using a metric socket set 8mm-19mm and extensions (3", 6", 12").
• Break the RTV seal carefully using a flat plastic scraper; do not gouge aluminum sealing surfaces.
• Clean mating surfaces with a razor scraper, brake cleaner spray, and shop rags.
• On reassembly: Torque timing cover fasteners to Nissan FSM spec by bolt size/location.

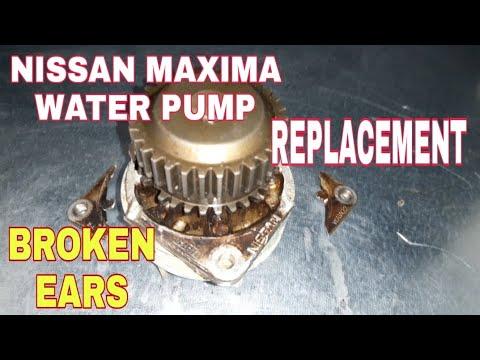

Step 9: Replace the water pump

• With the cover off, remove the water pump fasteners using a metric socket set 8mm-19mm.
• Remove the pump and O-ring/gasket; clean the pump mounting surface using a flat plastic scraper and brake cleaner spray.
• Install the new pump with the new seal.
• On reassembly: Torque water pump fasteners to Nissan FSM spec.

Step 10: Re-seal and reinstall the timing cover

• Apply RTV evenly using the RTV sealant applicator nozzle following the factory bead path.
• Install the cover and hand-start all bolts before tightening.
• Tighten in stages with a 3/8" drive torque wrench: Torque to Nissan FSM spec in the specified sequence.
• RTV cure time matters—don’t rush refilling.

Step 11: Reassemble accessories, belt, and shields

• Reinstall brackets/accessories using a metric socket set 8mm-19mm and torque wrench.
• Install the serpentine belt using a serpentine belt tool (specialty).
• Reinstall the splash shields and wheel using a trim clip removal tool and 19mm socket.
• Lower the vehicle from the jack stands (rated 3-ton minimum).

Step 12: Refill and bleed the cooling system

• Refill coolant using a funnel and engine coolant (Nissan-compatible, premix).
• Run the engine and set heat to HOT to help purge air; top off as needed.
• Check for leaks around the timing cover and pump area.

---

✅ After Repair

• Verify the cooling fans cycle normally and the cabin heat is steady (no air pockets).
• Recheck coolant level after the first full heat-soak and cool-down.
• Inspect for oil seepage at the timing cover and crank seal area.
• If the check engine light comes on, scan for codes before driving far.

---
