🔧 Corolla - Water Pump Replacement

The water pump circulates coolant through your engine and radiator. If it leaks or the bearing fails, the engine can overheat, so replacing the pump quickly helps prevent major damage.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: your Corolla has the 1.8L with a belt-driven mechanical water pump.

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool fully before opening the cooling system.
• ⚠️ Support the car with jack stands; never rely on a floor jack.
• ⚠️ Coolant is toxic—keep it off skin and away from pets.
• ⚠️ Keep hands clear of the belt path when loosening/tightening.
• ⚠️ Battery disconnect is not required, but keep tools away from the positive terminal.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Drain pan (at least 10-quart)
• Funnel
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" torque wrench (10-80 ft-lbs range)
• 3/8" breaker bar
• Serpentine belt tool 14mm (specialty)
• Trim clip remover
• Flathead screwdriver
• Plastic gasket scraper
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump assembly - Qty: 1
• Water pump gasket/O-ring (as applicable) - Qty: 1
• Toyota Super Long Life Coolant (pink) or equivalent premix - Qty: 2 gallons
• Serpentine drive belt - Qty: 1
• Replacement plastic splash shield clips - Qty: 4

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (upper radiator hose should feel cool).
• Raise the front of the car with a floor jack and set it securely on jack stands.
• Remove the lower engine splash shield (it’s the plastic panel under the engine).
• Place a drain pan under the radiator drain area.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower splash shield

• Use a trim clip remover and flathead screwdriver to remove the plastic clips and screws.
• Use a 10mm socket with a 3/8" ratchet for any 10mm bolts.
• Bag the clips so none get lost.

Step 2: Drain the coolant

• Position the drain pan (at least 10-quart) under the radiator drain cock.
• Use a flathead screwdriver to open the radiator drain cock slowly.
• Remove the radiator cap to help it drain (only when cool).
• Close the drain cock when finished (snug by hand; do not over-tighten).

Step 3: Remove the serpentine belt

• Locate the belt tensioner.
• Use a 14mm socket with a serpentine belt tool 14mm (specialty) or 3/8" breaker bar to rotate the tensioner and release belt tension.
• Slip the belt off one pulley, then remove it fully.
• Take a quick photo of belt routing.

Step 4: Remove the water pump pulley (if equipped)

• If your pump uses a small pulley, hold the pulley from turning by keeping light tension on the old belt (or hand-hold carefully).
• Use a 10mm socket with a 3/8" ratchet to remove the pulley bolts.
• Remove the pulley and set it aside.

Step 5: Remove the water pump

• Place the drain pan (at least 10-quart) under the pump area—more coolant will spill.
• Use a 10mm socket and 12mm socket with a 3/8" ratchet to remove the water pump mounting bolts.
• Gently break the seal and pull the pump off. Use a flathead screwdriver carefully only if needed—don’t gouge the aluminum.

Step 6: Clean the sealing surface

• Use a plastic gasket scraper to remove old gasket material from the engine surface.
• Wipe the area clean with shop towels until it’s smooth and dry.
• Do not use metal scrapers on aluminum.

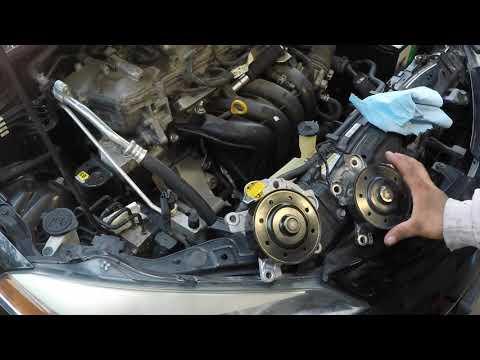

Step 7: Install the new water pump

• Install the new water pump gasket/O-ring onto the new pump as designed (do not add extra sealant unless the gasket instructions require it).
• Position the new pump and start all bolts by hand to avoid cross-threading.
• Use a 10mm socket/12mm socket with a 3/8" ratchet to snug bolts evenly in a crisscross pattern.
• Final tighten with a 3/8" torque wrench: Torque to 10 Nm (89 in-lbs) for typical 6mm water pump bolts.
• Tighten evenly to prevent leaks.

Step 8: Reinstall the pulley (if equipped)

• Reinstall the pulley and start bolts by hand.
• Use a 10mm socket with a 3/8" ratchet to snug the bolts.
• Final tighten with a 3/8" torque wrench: Torque to 9 Nm (80 in-lbs).

Step 9: Install the new serpentine belt

• Route the new belt around the pulleys (use your photo).
• Use a 14mm socket with a serpentine belt tool 14mm (specialty) to rotate the tensioner and slip the belt into place.
• Double-check the belt is fully seated in every pulley groove.

Step 10: Refill coolant and bleed air

• Use a funnel to fill the radiator/expansion tank with Toyota Super Long Life Coolant (pink) or equivalent premix.
• Set the heater to HOT and fan to LOW.
• Start the engine and let it idle. Watch the coolant level and add as it drops.
• Let the engine reach operating temperature; you should feel warm air from the vents.
• Shut the engine off, let it cool, then top off the reservoir to the FULL line.
• Small bubbles are normal at first.

Step 11: Reinstall the splash shield and lower the car

• Reinstall the splash shield using the trim clip remover and 10mm socket.
• Lower the car safely from the jack stands using the floor jack (rated 2-ton minimum).

---

✅ After Repair

• Start the engine and check for leaks around the water pump and hose areas.
• Watch the temperature gauge during a 10-15 minute test drive.
• After the engine cools completely, recheck coolant level and top off as needed.
• Recheck belt alignment—no squealing and belt centered on pulleys.

---

💰 DIY vs Shop Cost

Shop Cost: $500-$900 (parts + labor)

DIY Cost: $120-$280 (parts only)

You Save: $380-$620 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
