🔧 Wrangler - Water Pump Replacement

The water pump circulates coolant through your A/C-heater core and engine. When it leaks or the bearing fails, you can overheat fast, so replacement is important to protect the engine.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a completely cool engine; hot coolant can cause severe burns.
• ⚠️ Coolant is toxic—keep it off skin and away from kids/pets; clean spills immediately.
• ⚠️ Keep hands/tools clear of the fan and belt area; do not run the engine with loose clothing.
• ⚠️ If you raise the front, support with jack stands; never rely on a floor jack alone.
• ⚠️ Battery disconnect is recommended before working near the fan/aux fan wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Drain pan (at least 3-gallon)
• Funnel
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Ratchet (3/8")
• Socket set (8mm, 10mm, 13mm)
• Serpentine belt tool or 3/8" breaker bar
• Torque wrench (in-lb and ft-lb capable)
• Flat-blade screwdriver
• Pliers (hose clamp pliers preferred)
• Trim clip remover
• Gasket scraper (plastic)
• Shop rags
• Fan clutch wrench set 36mm (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump (3.6L) - Qty: 1
• Water pump gasket / O-ring (included with pump on most kits) - Qty: 1
• Engine coolant (OAT, 50/50 or concentrate) - Qty: 2-3 gallons (mixed total)
• Distilled water (if using concentrate coolant) - Qty: 1-2 gallons
• Serpentine belt - Qty: 1 (recommended if worn/cracked)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Let the engine cool fully (overnight is best).
• Disconnect the negative battery terminal using a 10mm socket.
• Take a photo of the belt routing.
• Assumption: your Wrangler has the standard mechanical engine fan and shroud (common on the 3.6L).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Place a drain pan (at least 3-gallon) under the radiator drain area.
• Remove the radiator cap (only if cool) to help it drain faster.
• Open the drain and let coolant flow into the pan.

Step 2: Remove intake pieces for access

• Loosen the intake tube clamps using a flat-blade screwdriver.
• Remove the air intake tube/airbox fasteners using an 8mm socket and/or 10mm socket (as equipped), then move the assembly out of the way.

Step 3: Remove the fan shroud and mechanical fan

• Remove the upper shroud fasteners using an 10mm socket and release any clips using a trim clip remover.
• Use a fan clutch wrench set 36mm (specialty) to loosen the fan clutch nut, then spin the fan off and lift the fan and shroud out together.
• Fan clutch wrench: a thin wrench made to fit the big fan nut without rounding it.

Step 4: Remove the serpentine belt

• Put a serpentine belt tool or 3/8" breaker bar into the belt tensioner.
• Rotate the tensioner to relieve tension, then slide the belt off a smooth pulley.
• Remove the belt from the water pump pulley area and set it aside.

Step 5: Disconnect hoses at the water pump

• Use pliers (hose clamp pliers preferred) to compress the hose clamps and slide them back on the hose.
• Twist the hose gently to break it loose, then pull it off the water pump.
• Catch any remaining coolant with the drain pan and use shop rags for drips.

Step 6: Remove the water pump

• Remove the water pump mounting bolts using an 8mm socket and ratchet (3/8").
• Support the pump as the last bolts come out, then remove it from the engine.
• Clean the mating surface with a gasket scraper (plastic) and shop rags until it’s smooth and dry.

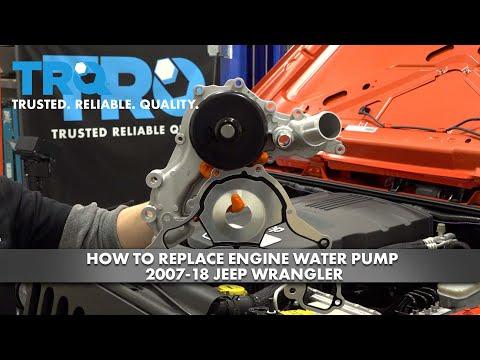

Step 7: Install the new water pump

• Install the new gasket/O-ring onto the new pump (dry—no sealer unless your pump instructions specifically say otherwise).
• Position the pump and start all bolts by hand to avoid cross-threading.
• Tighten bolts evenly using a torque wrench: Torque to 12 Nm (105 in-lbs).

Step 8: Reconnect hoses and reinstall the belt

• Reinstall hoses and position clamps using pliers (hose clamp pliers preferred).
• Route the belt using your photo as a guide, then relieve the tensioner with the serpentine belt tool or 3/8" breaker bar and slip the belt into place.
• Make sure the belt sits in every ribbed groove.

Step 9: Reinstall the fan/shroud and intake

• Lower the fan and shroud back in together, then thread the fan clutch on and snug it using the fan clutch wrench set 36mm (specialty).
• Reinstall shroud fasteners using a 10mm socket.
• Reinstall the intake/airbox parts using an 8mm socket, 10mm socket, and flat-blade screwdriver as needed.

Step 10: Refill and bleed the cooling system

• Close the radiator drain.
• Refill with engine coolant (OAT) using a funnel.
• Start the engine and set the heater to maximum heat, blower on low.
• Let it idle and top off as the level drops; watch for leaks around the pump and hoses.
• Shut off, let it cool, then recheck and top off the reservoir as needed.

---

✅ After Repair

• Check carefully for leaks with the engine running and again after a short test drive.
• Verify heater output is hot (a quick sign coolant is circulating well).
• After the first full cool-down cycle, recheck the coolant level and top off if needed.
• Dispose of old coolant properly (most parts stores accept it for recycling).

---

💰 DIY vs Shop Cost

Shop Cost: $550-$950 (parts + labor)

DIY Cost: $90-$220 (parts only)

You Save: $330-$860 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
