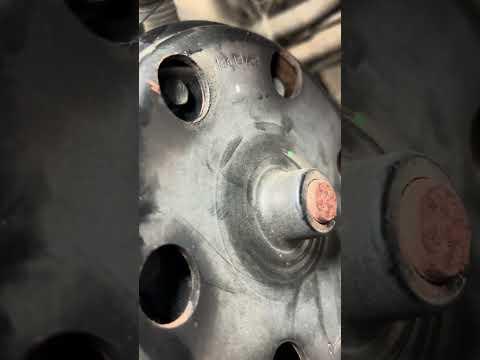

🔧 Tahoe - Water Pump Replacement

The water pump circulates coolant through your A/C condenser, radiator, and engine. When it leaks or the bearing wears out, you can lose coolant and overheat. This job is very doable at home, but you’ll be working around coolant, hoses, and the serpentine belt.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool completely before opening the surge tank cap (hot coolant can spray).
• ⚠️ Disconnect the negative battery cable (electric cooling fans can turn on unexpectedly).
• ⚠️ Capture coolant in a drain pan and dispose of it properly (it’s toxic to people and pets).
• ⚠️ Keep hands and tools clear of the belt path while routing the serpentine belt.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 4-gallon)
• Funnel
• Trim clip removal tool
• Flat-blade screwdriver
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• Serpentine belt tool, 3/8" drive (specialty)
• Hose clamp pliers (specialty)
• Plastic gasket scraper
• Torque wrench (5-60 Nm range)
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket/seal - Qty: 1
• Dex-Cool coolant (pre-mix 50/50) - Qty: 3 gallons
• Upper radiator hose clamp (optional if original is weak) - Qty: 1
• Serpentine belt (optional if cracked/glazed) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool fully (overnight is best).
• Disconnect the negative battery cable using a 10mm socket.
• Serpentine belt tool = long handle to release tension.
• Hose clamp pliers squeeze spring clamps safely.
• Torque wrench tightens bolts to exact spec.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the intake duct (access space)

• Remove the engine cover by lifting it straight up (firm pull).
• Use an 8mm socket or flat-blade screwdriver to loosen the intake duct clamps.
• Disconnect any small breather tube(s) by pulling them off gently.
• Lift the intake duct out and set it aside.

Step 2: Drain the coolant

• Place a drain pan (at least 4-gallon) under the radiator drain area.
• Slowly remove the surge tank cap to release any leftover pressure (engine must be cold).
• Open the radiator drain (petcock) using a flat-blade screwdriver (if equipped), and drain coolant.
• If access is tight, safely raise the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).

Step 3: Remove the serpentine belt

• Locate the belt routing decal (usually near the radiator support). Take a quick photo as backup.
• Install a serpentine belt tool, 3/8" drive (specialty) into the tensioner.
• Rotate the tensioner to relieve tension, then slip the belt off one pulley and remove the belt from the front of the engine.

Step 4: Remove hoses from the water pump

• Use hose clamp pliers (specialty) to compress the spring clamp(s), then slide the clamp back on the hose.
• Twist the hose gently to break it free, then pull it off the water pump.
• Catch any remaining coolant with the drain pan (at least 4-gallon) and use shop rags to keep things clean.

Step 5: Unbolt and remove the water pump

• Remove the water pump mounting bolts using a 10mm socket and a 3/8" drive ratchet with 3/8" drive extension set as needed.
• Support the pump with one hand as you remove the last bolts.
• Pull the water pump straight off the engine.
• Remove the old gasket/seal (it may stick to the pump or engine).

Step 6: Clean the sealing surface

• Use a plastic gasket scraper to clean the engine’s water pump sealing surface.
• Wipe the surface with shop rags until it’s clean and dry.
• Don’t gouge the aluminum surface.

Step 7: Install the new water pump

• Install the new water pump gasket/seal onto the new pump (match the orientation).
• Position the new pump on the engine and start all bolts by hand.
• Tighten the bolts evenly in a crisscross pattern using a 10mm socket.
• Final tighten with a torque wrench (5-60 Nm range): Torque to 22 Nm (16 ft-lbs).

Step 8: Reinstall hoses

• Push hoses fully onto their fittings.
• Use hose clamp pliers (specialty) to move spring clamps back into their original positions.
• Double-check each hose is fully seated and clamps are straight.

Step 9: Reinstall the serpentine belt

• Route the belt using the under-hood diagram (or your photo).
• Use the serpentine belt tool, 3/8" drive (specialty) to rotate the tensioner and slip the belt onto the last pulley.
• Visually confirm the belt is centered in every pulley groove.

Step 10: Reinstall the intake duct and reconnect battery

• Reinstall the intake duct and tighten clamps using an 8mm socket or flat-blade screwdriver.
• Reinstall the engine cover by pressing it down onto its mounting points.
• Reconnect the negative battery cable using a 10mm socket.

Step 11: Refill and bleed the cooling system

• Close the radiator drain (petcock) using a flat-blade screwdriver (snug only).
• Using a funnel, fill the surge tank with Dex-Cool coolant (pre-mix 50/50) to the cold fill line.
• Start the engine and set the HVAC to full heat (this helps circulate coolant through the heater core).
• Let the engine idle until it reaches normal operating temperature and you feel heat from the vents.
• Shut the engine off, let it cool, then recheck and top off the surge tank to the cold line.
• Watch the temp gauge the whole time.

---

✅ After Repair

• Check for leaks around the water pump and hoses with the engine running and again after a full cool-down.
• Verify the heater blows hot and the temperature gauge stays normal.
• After 1-2 drive cycles, recheck the coolant level (cold) and top off if needed.
• If you ever see overheating, coolant loss, or a low-coolant message, stop and recheck for trapped air or a leak.

---

💰 DIY vs Shop Cost

Shop Cost: $700-$1,100 (parts + labor)

DIY Cost: $160-$320 (parts only)

You Save: $540-$780 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
