🔧 Renegade - Water Pump Replacement

The water pump circulates coolant through your engine and radiator. When it leaks or the bearing fails, you can overheat quickly, so replacing it is important to protect the engine.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work only on a fully cool engine; hot coolant can cause severe burns.
• ⚠️ Support the vehicle on jack stands; never rely on a jack alone.
• ⚠️ Capture coolant in a drain pan and dispose of it properly; it’s toxic to people and pets.
• ⚠️ Keep fingers clear of the belt path; the tensioner is spring-loaded.
• ⚠️ Battery disconnect is recommended before working near the alternator wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 10-quart)
• Funnel
• Trim clip removal tool
• Ratchet (3/8" drive)
• Ratchet (1/2" drive)
• Extensions (3/8" drive, assorted)
• Universal swivel joint (3/8" drive)
• Torque wrench (3/8" drive, 10-80 Nm range)
• Torque wrench (1/2" drive, 50-200 Nm range)
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 16mm socket
• 18mm socket
• E10 external Torx socket
• Serpentine belt tool with 15mm low-profile socket (specialty)
• Flat-blade screwdriver
• Pliers (hose clamp)
• Plastic gasket scraper
• Shop rags
• Engine support bar (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump assembly - Qty: 1
• Water pump gasket / O-ring seal (if not included with pump) - Qty: 1
• Serpentine belt (recommended while you’re there) - Qty: 1
• Engine coolant (OAT, 50/50 premix or concentrate + distilled water) - Qty: 2-3 gallons
• Hose clamp (optional, if any clamp is damaged) - Qty: 1-2

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (at least 2-3 hours).
• Disconnect the negative battery cable using a 10mm socket.
• Raise the right-front corner with a floor jack and support with jack stands.
• An engine support bar holds the engine from above so you can remove the right-side mount; it’s a crossbar that spans the fenders/strut towers.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the right-front wheel and inner fender liner

• Remove the wheel using a 19mm socket, then set it aside.
• Remove the inner fender liner fasteners using a trim clip removal tool and 8mm socket.
• Pull the liner back to access the accessory belt and front of the engine.

Step 2: Drain the coolant

• Place a drain pan under the radiator/engine area.
• Slowly loosen the coolant reservoir cap by hand to release any leftover pressure.
• Open the radiator drain (if accessible) using a flat-blade screwdriver, or remove the lower radiator hose clamp using pliers (hose clamp) and carefully pull the hose off.
• Let the coolant fully drain, then reinstall the drain plug/hose temporarily.

Step 3: Support the engine and remove the right engine mount (access step)

• Install the engine support bar (specialty) and take the weight of the engine slightly.
• Remove the right engine mount fasteners using a 16mm socket and 18mm socket.
• Remove the mount and bracket as needed to open access to the water pump area.
• Torque to 85 Nm (63 ft-lbs) for engine mount-to-body bolts during reassembly.
• Torque to 105 Nm (77 ft-lbs) for engine mount-to-bracket bolts during reassembly.

Step 4: Remove the serpentine belt

• Use a serpentine belt tool with 15mm low-profile socket (specialty) to rotate the tensioner and relieve belt tension.
• Slip the belt off a smooth pulley first, then slowly release the tensioner.
• Take a photo of belt routing.

Step 5: Remove components blocking the water pump (as equipped)

• If the alternator blocks access, disconnect its electrical connector and battery cable nut using a 10mm socket, then remove the alternator bolts with a 13mm socket.
• Move wiring harnesses aside after removing retainers with a trim clip removal tool.
• Torque to 54 Nm (40 ft-lbs) for alternator mounting bolts during reassembly.

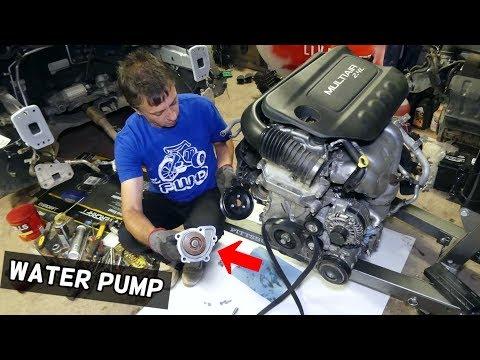

Step 6: Remove the water pump

• Place the drain pan under the pump area because more coolant will spill.
• Remove the water pump bolts using an E10 external Torx socket and ratchet (3/8" drive).
• Gently separate the pump from the engine. If it’s stuck, tap lightly with the handle of a ratchet; do not pry hard on sealing surfaces.
• Remove the old gasket/O-ring from the engine side.

Step 7: Clean the sealing surface

• Use a plastic gasket scraper to remove old gasket material without gouging the aluminum.
• Wipe the surface clean with shop rags until it’s dry and smooth.
• No scratches = no leaks.

Step 8: Install the new water pump

• Install the new gasket/O-ring onto the new pump (follow how it sits on the old one).
• Position the pump and hand-start all bolts using your fingers first to avoid cross-threading.
• Tighten bolts evenly in a crisscross pattern using an E10 external Torx socket.
• Torque to 12 Nm (106 in-lbs) for water pump bolts.

Step 9: Reinstall removed components

• Reinstall the alternator (if removed) using a 13mm socket and torque wrench.
• Reinstall the engine mount and bracket using a 16mm socket and 18mm socket.
• Reinstall the inner fender liner using an 8mm socket and trim clip removal tool.

Step 10: Install the serpentine belt

• Route the belt according to the under-hood diagram (or your photo).
• Use the serpentine belt tool with 15mm low-profile socket (specialty) to rotate the tensioner and slip the belt fully into all pulley grooves.
• Visually confirm the belt is centered on every pulley.

Step 11: Refill coolant and bleed air

• Make sure the radiator drain/lower hose is secured using pliers (hose clamp).
• Fill the coolant reservoir using a funnel with the correct OAT coolant.
• Start the engine and set the heater to max heat.
• Let it idle and top off as the level drops.
• If equipped with a bleed screw, open it using a flat-blade screwdriver until coolant flows without bubbles, then close it.

Step 12: Reinstall wheel and reconnect battery

• Install the wheel using a 19mm socket.
• Lower the vehicle from jack stands using a floor jack.
• Torque to 135 Nm (100 ft-lbs) for wheel lug nuts in a star pattern.
• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• Let the engine reach operating temperature and confirm the heater blows hot.
• Check for leaks around the water pump and hose connections with a flashlight.
• After a complete cool-down, recheck coolant level and top off as needed.
• Watch the temperature gauge on the first test drive; stop if it climbs abnormally.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $140-$320 (parts only)

You Save: $510-$730 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
