🔧 Water Pump - Replacement

On your Sonata, the water pump circulates coolant through the engine and radiator. Replacing it typically involves draining some coolant, removing the serpentine belt, unbolting the pump, and installing a new gasket/seal so it doesn’t leak.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: 2.4L accessory-belt-driven water pump (not timing-chain driven).

---

⚠️ Safety & Precautions

• ⚠️ Never open the cooling system hot; coolant can cause severe burns.
• ⚠️ Support the car with jack stands; never rely on a floor jack alone.
• ⚠️ Keep hands clear of the belt path when rotating the tensioner.
• Use gloves and safety glasses; coolant is toxic and slippery.
• Battery disconnect is not required, but keep tools away from the alternator power stud.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (pair, 3-ton rated)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 2-gallon)
• Funnel
• Shop rags
• Ratchet (3/8" drive)
• Socket set: 10mm, 12mm, 14mm, 17mm
• Wrench set: 10mm, 12mm, 14mm
• Torque wrench (3/8" drive, inch-lb/ft-lb capable)
• Serpentine belt tool or long breaker bar (3/8" drive)
• Trim clip tool
• Plastic gasket scraper
• Brake cleaner spray
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket/O-ring (as equipped) - Qty: 1
• Hyundai/Kia P-OAT long-life coolant (pre-mix or concentrate) - Qty: 1-2 gallons
• Distilled water (if using concentrate coolant) - Qty: 1-2 gallons
• Serpentine drive belt - Qty: 1 (recommended if belt is worn/cracked)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool fully (best: sit overnight).
• Set the HVAC to HOT later during bleeding (this opens the heater circuit).
• Plan for spills: place a drain pan under the radiator area before you open anything.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front and remove the lower splash shield

• Use a floor jack to lift the front jacking point, then place jack stands under the proper support points.
• Use a trim clip tool and 10mm socket to remove the engine under cover/splash shield fasteners.

Step 2: Drain coolant (partial drain is usually enough)

• Place a drain pan under the radiator drain area.
• Slowly loosen the radiator cap (only if fully cool) to release any residual pressure.
• Open the radiator drain cock (petcock) and let coolant drain. Use shop rags for spills.
• Tip: Save clean coolant only if it’s fresh.

Step 3: Remove the serpentine belt

• Take a quick photo of the belt routing with your phone.
• Use a 17mm socket and a serpentine belt tool or long breaker bar to rotate the belt tensioner and relieve belt tension.
• Slip the belt off one pulley, then remove it from the rest of the pulleys.
• Tip: A belt tool is a long handle made for tight spaces.

Step 4: Remove the water pump pulley (if equipped with a separate pulley)

• Hold the pulley from turning by keeping the belt on briefly (if possible), or hold it by hand carefully.
• Use a 10mm socket to remove the pulley bolts, then remove the pulley.
• Torque to 10 Nm (7 ft-lbs) for pulley bolts during reassembly.

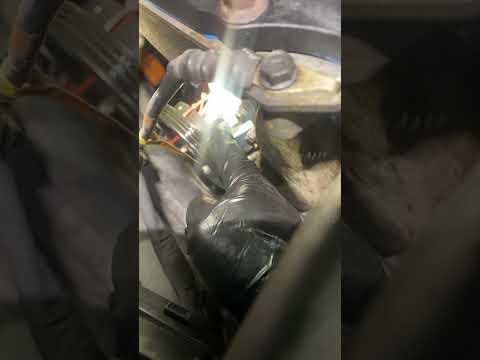

Step 5: Unbolt and remove the water pump

• Place the drain pan under the water pump area—more coolant will come out when the pump is removed.
• Use a 10mm socket and 12mm socket to remove the water pump mounting bolts.
• Remove the pump. If it’s stuck, tap gently with your hand—do not pry hard against aluminum surfaces.

Step 6: Clean the sealing surface

• Use a plastic gasket scraper to remove old gasket material without gouging the aluminum.
• Spray brake cleaner on a rag and wipe the surface until it’s clean and dry.
• Tip: Clean metal = no leaks.

Step 7: Install the new water pump and gasket

• Install the new gasket/O-ring onto the new pump (match orientation exactly).
• Position the pump and start all bolts by hand to prevent cross-threading.
• Tighten bolts evenly in a crisscross pattern using a 10mm socket/12mm socket.
• Torque to 12 Nm (9 ft-lbs) for water pump bolts.

Step 8: Reinstall the pulley and serpentine belt

• Reinstall the pulley and hand-start the bolts using a 10mm socket.
• Torque to 10 Nm (7 ft-lbs) for pulley bolts.
• Route the belt according to your photo, then use a 17mm socket with the serpentine belt tool or long breaker bar to rotate the tensioner and slip the belt on.
• Double-check the belt is seated fully in every pulley groove.

Step 9: Reinstall the splash shield and lower the car

• Use a 10mm socket and trim clip tool to reinstall the under cover.
• Raise slightly with the floor jack, remove jack stands, and lower the car.

Step 10: Refill and bleed the cooling system

• Close the radiator drain cock.
• Fill with Hyundai/Kia P-OAT long-life coolant (50/50 mix if using concentrate) using a funnel.
• Start the engine and set HVAC to HOT with the fan on low.
• Let it idle until warm. Watch for air bubbles at the fill point and keep topping up as the level drops.
• Once the radiator fan cycles and heat blows hot, install the cap and check the overflow bottle level.
• Tip: Squeeze upper hose to burp air.

---

✅ After Repair

• Check carefully for leaks around the pump with the engine running and again after a short drive.
• Verify the temperature gauge stays normal and cabin heat works.
• After the engine cools completely, recheck coolant level in the reservoir and top off if needed.
• Inspect the serpentine belt tracking (it should run centered on pulleys).

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $90-$220 (parts only)

You Save: $360-$630 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
