🔧 K900 - Water Pump Replacement

The water pump circulates coolant through your engine and radiator. When it leaks or the bearing wears out, you can lose coolant, overheat, and risk serious engine damage, so replacing it promptly is important.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• 🧯 Never open the coolant cap on a hot engine; wait until fully cool.
• 🧤 Coolant is toxic and slippery—wear gloves and clean spills immediately.
• 🧰 Support the car with jack stands; never rely on a floor jack alone.
• ⚡ Keep hands clear of the radiator fan area; electric fans can turn on unexpectedly.
• 🔋 Recommended: disconnect the negative battery terminal if your hands will be near the fan wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Drain pan (at least 10-liter)
• Funnel
• Trim clip remover tool
• Flathead screwdriver
• Hose clamp pliers
• 3/8" drive ratchet
• 3/8" drive extensions (3" and 6")
• 10mm socket
• 12mm socket
• 14mm socket
• Serpentine belt tool with 14mm socket (specialty)
• Torque wrench (5–80 Nm range)
• Plastic gasket scraper
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket / O-ring (as equipped) - Qty: 1
• Engine coolant (Hyundai/Kia long-life coolant, 50/50 mix) - Qty: 2-3 gallons
• Accessory drive belt (serpentine belt) - Qty: 1 (recommended if cracked/glazed)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Let the engine get fully cold (at least a few hours).
• Raise the front of the car using a floor jack and support it on jack stands.
• Place a drain pan under the radiator area.
• Assumption: Your K900’s 3.8L uses a belt-driven external water pump (most common setup). Torque values below are best-effort typical for this engine family; use OEM specs if you have a service manual.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower splash shield

• Use a trim clip remover tool and 10mm socket to remove the clips/bolts holding the lower engine cover (splash shield).
• Set the cover and hardware aside in a small pile so nothing gets lost.

Step 2: Drain the coolant

• Remove the coolant reservoir/radiator cap slowly (only when cold).
• Position the drain pan (at least 10-liter) under the radiator drain area.
• Use a flathead screwdriver (if needed) to open the radiator drain cock and let coolant drain.
• If your radiator has no easy drain, use hose clamp pliers to release the lower radiator hose clamp and carefully pull the hose off to drain.

Step 3: Remove the intake ducting (for access)

• Use a flathead screwdriver and 10mm socket to loosen hose clamps and remove the intake ducting near the front of the engine.
• Tip: Take a quick photo first.

Step 4: Remove the radiator fan/shroud assembly (if it blocks access)

• Unplug the fan electrical connector(s) by hand (press tab, then pull).
• Use a 10mm socket to remove the fan/shroud fasteners.
• Lift the fan/shroud assembly straight up and out carefully.
• Radiator fan note: The fan/shroud is the plastic housing holding the electric fan(s).

Step 5: Release tension and remove the serpentine belt

• Install the serpentine belt tool with 14mm socket (specialty) on the belt tensioner bolt.
• Rotate the tensioner to relieve belt tension, then slide the belt off one pulley.
• Remove the belt and set it aside. If you’re reusing it, note the routing.

Step 6: Remove the water pump pulley (if equipped)

• Use a 12mm socket (some variants use 10mm) to remove the water pump pulley bolts.
• If the pulley spins, reinstall the belt temporarily or hold the pulley by hand while loosening bolts.
• Remove the pulley.

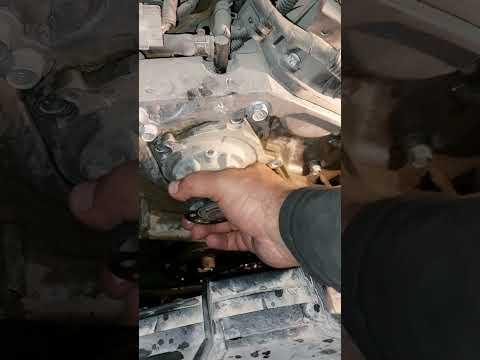

Step 7: Remove the water pump

• Place shop towels under the pump area to catch leftover coolant.
• Use a 10mm socket and 12mm socket to remove the water pump mounting bolts.
• Gently separate the pump from the engine. If stuck, tap lightly by hand—do not pry hard on aluminum sealing surfaces.
• Remove the old gasket/O-ring and discard it.

Step 8: Clean the sealing surface

• Use a plastic gasket scraper to remove old gasket material without gouging the metal.
• Wipe the surface clean with shop towels until it’s dry and smooth.
• Tip: Do not use a metal scraper.

Step 9: Install the new water pump and gasket

• Install the new gasket/O-ring onto the new pump (match the old style).
• Position the pump on the engine and hand-thread all bolts first (prevents cross-threading).
• Tighten bolts evenly in a crisscross pattern using a 10mm socket/12mm socket.
• Final-tighten with a torque wrench: Torque to 10 Nm (7 ft-lbs) for small bolts and Torque to 22 Nm (16 ft-lbs) for larger bolts (if equipped).

Step 10: Reinstall the water pump pulley

• Reinstall the pulley and start bolts by hand.
• Tighten pulley bolts using a 12mm socket.
• Final-tighten with a torque wrench: Torque to 10 Nm (7 ft-lbs).

Step 11: Reinstall the serpentine belt

• Route the belt over all pulleys (leave the easiest pulley for last).
• Use the serpentine belt tool with 14mm socket (specialty) to rotate the tensioner and slip the belt into place.
• Double-check belt alignment in every pulley groove with a flashlight.

Step 12: Reinstall the fan/shroud and intake ducting

• Reinstall the fan/shroud and tighten fasteners using a 10mm socket.
• Reconnect the fan electrical connector(s) fully.
• Reinstall intake ducting and tighten clamps using a flathead screwdriver and 10mm socket.

Step 13: Reinstall the lower splash shield

• Reinstall the splash shield using the 10mm socket and trim clip remover tool (to push clips back in).

Step 14: Refill and bleed the cooling system

• Close the radiator drain cock (use a flathead screwdriver if needed).
• Slowly refill with Hyundai/Kia long-life coolant, 50/50 mix using a funnel.
• Start the engine and set HVAC to HOT with the fan on low (this opens the heater circuit).
• Let the engine idle and watch the temperature gauge. As the thermostat opens, coolant level may drop—top off as needed.
• Once warm, shut the engine off, let it cool fully, then recheck and top off the radiator/reservoir.

---

✅ After Repair

• 🕵️ Check for leaks around the pump and hose connections with the engine running.
• 🧪 Verify the heater blows hot air (a quick sign coolant is circulating).
• 🌡️ On the first test drive, watch the temperature gauge closely.
• 🧴 After the next full cool-down, recheck coolant level and top off if needed.
• 🔍 Inspect the serpentine belt tracking; it should run centered on pulleys.

---

💰 DIY vs Shop Cost

Shop Cost: ₹18,000-₹45,000 (parts + labor)

DIY Cost: ₹6,000-₹18,000 (parts only)

You Save: ₹12,000-₹27,000 by doing it yourself!

Local labor rates vary; this job is typically 3-6 hours of shop time.

---
