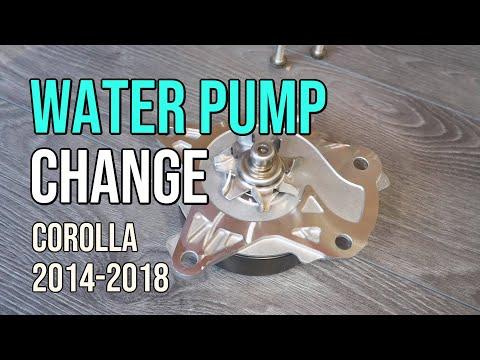

🔧 Corolla - Water Pump Replacement

Your Corolla’s water pump circulates coolant through the engine and radiator. If it’s leaking from the pump “weep hole,” making noise, or causing overheating, replacement is the correct fix. This job involves draining coolant, removing the drive belt, swapping the pump, then refilling and bleeding air from the cooling system.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: 1.8L 2ZR-FE engine with belt-driven water pump.

---

⚠️ Safety & Precautions

• ⚠️ Never open the cooling system hot; let the engine cool fully.
• ⚠️ Support the car with jack stands before working underneath.
• ⚠️ Coolant is toxic; keep away from kids and pets; clean spills.
• ⚠️ Keep fingers clear of the belt and pulleys while rotating parts.
• ⚠️ Battery disconnect is not required, but keep the key off and hands away from the cooling fan area.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 10 liters)
• Funnel
• Trim clip removal tool
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" torque wrench (5-60 Nm range)
• 3/8" extension (3"-6")
• 19mm wrench
• Gasket scraper (plastic)
• Shop rags
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump assembly (with gasket/O-ring) - Qty: 1
• Super Long Life Coolant (pink, pre-mixed 50/50) - Qty: 2 gallons (about 7.6 liters) max
• Serpentine drive belt - Qty: 1 (recommended if belt is cracked/glazed)
• Engine under cover fasteners/clips - Qty: As needed

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool completely (radiator hose should feel cool to the touch).
• Raise the front of the car with a floor jack and support it on jack stands.
• Remove the lower engine splash shield (under cover) using a 10mm socket and trim clip removal tool.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Place a drain pan under the radiator drain area.
• Slowly loosen the coolant reservoir cap to release any leftover pressure.
• Open the radiator drain cock (petcock) and drain coolant into the pan. Use a flashlight to locate it.
• If your drain cock has a small hex/hand-turn style, turn gently—do not force it.

Step 2: Remove the serpentine (drive) belt

• Locate the belt tensioner. The “tensioner” is a spring-loaded arm that keeps belt tight.
• Use a 19mm wrench on the tensioner hex and rotate it to release belt tension.
• Slide the belt off the pulleys and remove it from the engine bay.
• Tip: Take a quick photo of belt routing.

Step 3: Remove the water pump pulley (if equipped)

• If your pump uses a separate pulley, hold the pulley by hand and remove the pulley bolts using a 10mm socket.
• Remove the pulley and set it aside.
• Torque to 21 Nm (15 ft-lbs) when reinstalling pulley bolts.

Step 4: Unbolt and remove the water pump

• Place shop rags under the pump area to catch leftover coolant.
• Remove the water pump mounting bolts using a 10mm socket and 3/8" ratchet.
• Gently wiggle the pump free. Some coolant will spill—catch it in the drain pan.
• Remove the old gasket/O-ring material from the engine mating surface using a plastic gasket scraper.
• Wipe the surface clean with shop rags. Do not gouge the aluminum surface.

Step 5: Install the new water pump

• Confirm the new pump has a new gasket/O-ring installed correctly (no twists or pinches).
• Position the pump onto the engine and start all bolts by hand to avoid cross-threading.
• Tighten the bolts evenly in a crisscross pattern using a 10mm socket.
• Final-tighten with a torque wrench: Torque to 10 Nm (89 in-lbs).
• Tip: Hand-start every bolt before tightening.

Step 6: Reinstall the pulley (if removed) and the drive belt

• Install the pulley and snug bolts using a 10mm socket, then torque: Torque to 21 Nm (15 ft-lbs).
• Route the belt around the pulleys.
• Use a 19mm wrench to rotate the tensioner, slide the belt on, then slowly release the tensioner.
• Visually confirm the belt is seated fully in all pulley grooves.

Step 7: Reinstall the under cover

• Reinstall the splash shield using a 10mm socket and any clips using a trim clip removal tool.

Step 8: Refill and bleed the cooling system

• Lower the car off the jack stands using the floor jack.
• Refill with pink Super Long Life Coolant (50/50 pre-mix) using a funnel.
• Fill the reservoir to the “FULL” line.
• Start the engine and set the heater to HOT with the fan on low.
• Let the engine idle and warm up. Watch for air bubbles and add coolant as the level drops.
• Once the radiator fan cycles and heat blows hot, shut the engine off and let it cool completely.
• Recheck coolant level and top off as needed.

---

✅ After Repair

• Check for leaks around the pump and under the car with a flashlight.
• Verify normal temperature on the dash during a 10-15 minute test drive.
• After the engine cools again, recheck the reservoir level and top off if needed.
• Listen for belt squeal; if present, re-check belt seating on all pulleys.

---

💰 DIY vs Shop Cost

Shop Cost: ₹12,000-₹25,000 (parts + labor)

DIY Cost: ₹3,500-₹8,000 (parts only)

You Save: ₹8,500-₹17,000 by doing it yourself!

Local labor rates vary; this repair typically bills 2-4 hours.

---
