🔧 Santa Fe - Water Pump Replacement

The water pump circulates coolant through your engine and radiator. When it leaks or the bearing wears out, you can get overheating, coolant loss, or a whining noise. On your Santa Fe, the pump is belt-driven on the front of the engine, so replacement is straightforward but messy.

Difficulty Level: Intermediate | Estimated Time: 2.5-4.5 hours

Assumption: This is the belt-driven external water pump (most common on the 3.3L).

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool completely before opening the cooling system.
• ⚠️ Coolant is toxic—catch all fluid in a drain pan and clean spills.
• ⚠️ Support the SUV with jack stands; never rely on a floor jack alone.
• ⚠️ Keep hands clear of the belt path when rotating the tensioner.
• ⚠️ Battery disconnect is not required, but avoid shorting tools near the alternator.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 3/8" drive ratchet
• 3/8" drive extensions (3" and 6")
• 10mm socket
• 12mm socket
• 14mm socket
• 14mm box wrench
• Torque wrench (10–150 ft-lbs range)
• Flathead screwdriver
• Trim clip removal tool
• Hose clamp pliers
• Drain pan (at least 3 gallons)
• Funnel
• Spill-free funnel kit
• Plastic razor blade scraper
• Shop rags
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket / O-ring (as equipped) - Qty: 1
• Hyundai/Kia long-life coolant (P-OAT) 50/50 premix - Qty: 2 gallons
• Serpentine drive belt - Qty: 1 (recommended if belt is worn/cracked)

---

📋 Before You Begin

• 🧰 Park on level ground, set the parking brake, and chock the rear wheels.
• 🧰 Let the engine cool fully; the upper radiator hose should feel cool.
• 🧰 Remove the engine cover (pull upward) for easier access from above.
• 🧰 Place your drain pan under the radiator drain area before loosening anything.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front-right and remove the wheel

• Use a 21mm socket to loosen the lug nuts (slightly) on the ground.
• Lift at the front jacking point using a floor jack, then support with jack stands.
• Remove the wheel with the 21mm socket.

Step 2: Remove the splash shield / liner for access

• Remove plastic clips and small screws using a trim clip removal tool and flathead screwdriver.
• Pull the splash shield/liner back to expose the belt and water pump area.

Step 3: Drain the coolant

• Place a drain pan under the radiator drain.
• Open the radiator cap slowly (only if cool) and then open the drain using a flathead screwdriver (style varies by radiator).
• If needed for faster drain, remove the lower radiator hose using hose clamp pliers.

Step 4: Loosen the water pump pulley bolts (before belt removal)

• With the belt still installed (it helps hold the pulley), use a 10mm socket to crack loose the water pump pulley bolts.
• Do not remove them fully yet.

Step 5: Remove the serpentine belt

• The serpentine belt is the single long belt that drives multiple accessories.
• Use a 14mm socket or 14mm box wrench on the belt tensioner bolt.
• Rotate the tensioner to relieve tension, then slip the belt off a smooth pulley.
• Slowly release the tensioner back to its rest position.

Step 6: Remove the water pump pulley

• Finish removing the pulley bolts using a 10mm socket.
• Remove the pulley and set it aside.

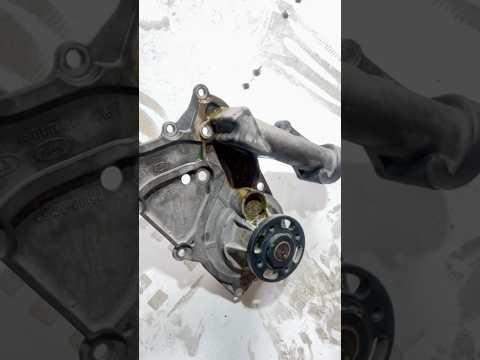

Step 7: Remove the water pump

• Place the drain pan under the pump; more coolant will spill.
• Remove the water pump mounting bolts using a 12mm socket with a 3/8" drive ratchet and extensions.
• Remove the pump from the engine. If it’s stuck, gently wiggle it—do not pry hard on aluminum surfaces.

Step 8: Clean the sealing surface

• Use a plastic razor blade scraper to remove old gasket material or residue.
• Wipe clean with shop rags. The surface must be clean and dry.
• No deep scraping—aluminum gouges can cause leaks.

Step 9: Install the new water pump

• Install the new gasket/O-ring onto the new pump (follow the part’s orientation).
• Position the pump and hand-start all bolts to avoid cross-threading.
• Tighten bolts evenly using a 12mm socket.
• Final tighten with a torque wrench: Torque to 10 Nm (7 ft-lbs) for water pump bolts.

Step 10: Reinstall the pulley and belt

• Install the pulley and start bolts by hand, then snug with a 10mm socket.
• Reinstall the belt by rotating the tensioner with a 14mm socket or 14mm box wrench.
• Ensure the belt is seated in every pulley groove (use a flashlight and look carefully).
• Tighten pulley bolts with a torque wrench: Torque to 10 Nm (7 ft-lbs).

Step 11: Reinstall splash shield and wheel

• Reinstall the liner/splash shield using the trim clip removal tool and flathead screwdriver.
• Reinstall the wheel and hand-tighten lug nuts using a 21mm socket.
• Lower the SUV from the jack stands using the floor jack.
• Final tighten lug nuts with a torque wrench: Torque to 110 Nm (81 ft-lbs).

Step 12: Refill and bleed the cooling system

• Close the radiator drain and reconnect any hoses using hose clamp pliers.
• Fill coolant slowly using a funnel or spill-free funnel kit (this is a funnel that seals to the radiator neck to reduce spills and help burp air).
• Start the engine and set HVAC to full HOT with the fan on low.
• Let it idle until the cooling fan cycles on, topping off coolant as the level drops.
• When bubbles stop and heat is steady, shut off, let cool, then top off the radiator and the overflow reservoir.

---

✅ After Repair

• ✅ Check for leaks around the pump and hoses with the engine idling.
• ✅ Test drive 10–15 minutes, then recheck for leaks and recheck coolant level after it cools.
• ✅ Watch the temperature gauge closely on the first drive; stop if it rises abnormally.
• ✅ Dispose of old coolant properly (most parts stores accept it).

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $130-$280 (parts only)

You Save: $520-$770 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.5 hours.

---
