🔧 Sierra 1500 - Water Pump Replacement

Your Sierra’s water pump circulates coolant through the engine and radiator. If it’s leaking (coolant drip from the pump/weep hole) or the bearing is noisy, replacement is the correct fix to prevent overheating.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine—hot coolant can cause severe burns.
• ⚠️ Disconnect the negative battery cable—your Sierra’s electric cooling fans can turn on unexpectedly.
• ⚠️ Support the truck safely if you raise it—use jack stands, never only a jack.
• ⚠️ Catch and dispose of coolant properly—pets are attracted to it and it’s toxic.
• ⚠️ Keep coolant off the serpentine belt—coolant can make the belt slip.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Drain pan (at least 3-gallon)
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 1/2" drive ratchet
• 3/8" drive torque wrench (10-100 ft-lbs range)
• Socket set (8mm, 10mm, 13mm, 15mm)
• Serpentine belt tool (specialty)
• Extension set (3" and 6")
• Flat-blade screwdriver
• Pliers (hose clamp pliers)
• Trim clip remover
• Gasket scraper (plastic)
• Shop towels
• Funnel

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gaskets/seals - Qty: 1 set
• Dex-Cool coolant (50/50 premix) - Qty: 3 gallons
• Serpentine belt - Qty: 1 Recommended if old/cracked
• Hose clamp set - Qty: 1 If factory clamps are weak

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels.
• 🔋 Disconnect the negative battery cable using a 10mm socket.
• 🧊 Make sure the engine is completely cool (upper radiator hose should feel cool).
• 📝 Take a quick photo of the belt routing sticker (or draw the routing) before removing the belt.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the intake duct (for access)

• Use an 8mm socket or flat-blade screwdriver to loosen the hose clamps on the air intake duct.
• Unclip any small hoses/sensors from the duct by hand, then lift the duct out.

Step 2: Drain the coolant

• Place a drain pan under the radiator drain (petcock).
• Open the drain using a flat-blade screwdriver (some drains are hand-turn; don’t force it).
• Remove the surge tank cap slowly (only when cool) to help it drain faster.

Step 3: Remove the upper fan shroud / fan assembly (if equipped as a removable module)

• Disconnect the cooling fan electrical connectors by hand.
• Remove shroud fasteners using a 10mm socket and a trim clip remover as needed.
• Lift the shroud/fan assembly straight up and out carefully.
• If it resists, recheck hidden clips/bolts.

Step 4: Release serpentine belt tension and remove the belt

• Install the serpentine belt tool on the belt tensioner and rotate it to relieve tension. (A belt tensioner is a spring-loaded pulley that keeps the belt tight.)
• Slide the belt off the water pump pulley first, then remove it from the rest of the pulleys.

Step 5: Remove coolant hoses from the water pump

• Use pliers (hose clamp pliers) to compress the hose clamps and slide them back on the hose.
• Twist the hose gently to break it loose, then pull it off the water pump.
• Use shop towels to catch remaining coolant.

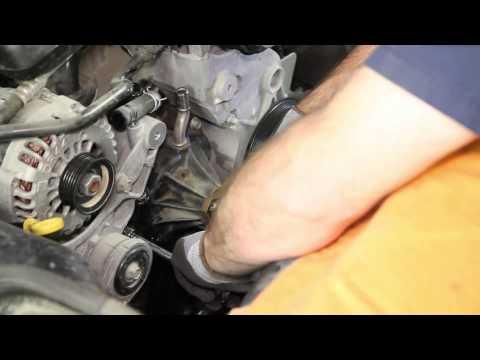

Step 6: Remove the water pump

• Remove the water pump mounting bolts using a 10mm socket and extensions as needed.
• Pull the water pump straight forward and out.
• Remove old gasket material from the engine surface using a plastic gasket scraper.
• Do not gouge the aluminum sealing surface.

Step 7: Install the new water pump and gaskets

• Install the new gaskets/seals onto the new pump (match orientation exactly).
• Position the pump on the engine and start all bolts by hand to avoid cross-threading.
• Tighten bolts evenly in a crisscross pattern using a torque wrench: Torque to 25 Nm (18 ft-lbs).

Step 8: Reinstall hoses, belt, and fan/shroud

• Reinstall coolant hoses and position clamps using hose clamp pliers.
• Route the serpentine belt correctly and apply tension using the serpentine belt tool.
• Reinstall the fan/shroud assembly and bolts using a 10mm socket.
• Reconnect the fan electrical connectors by hand until they click.
• Reinstall the intake duct and tighten clamps using an 8mm socket or flat-blade screwdriver.

Step 9: Refill and bleed the cooling system

• Close the radiator drain.
• Refill the surge tank using a funnel with Dex-Cool coolant (50/50 premix) to the FULL COLD line.
• If equipped with a coolant air bleed screw: open it using the appropriate socket, fill until coolant flows without bubbles, then close it snugly.
• Reconnect the negative battery cable using a 10mm socket.
• Start the engine and set HVAC to heat (full hot) and low fan speed.
• Let it idle until warm, watching the temperature gauge and checking for leaks.
• Shut off, let it cool fully, then top off to FULL COLD.

---

✅ After Repair

• 🔎 Check for leaks around the water pump and hose connections with the engine running and again after a full cool-down.
• 🌡️ Road test 10-15 minutes, then recheck coolant level after it cools.
• 🧼 Clean any spilled coolant off pulleys/belt using shop towels.
• 🛠️ If the belt chirps/squeals, recheck belt routing and make sure coolant didn’t get on it.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $160-$320 (parts only)

You Save: $490-$730 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
