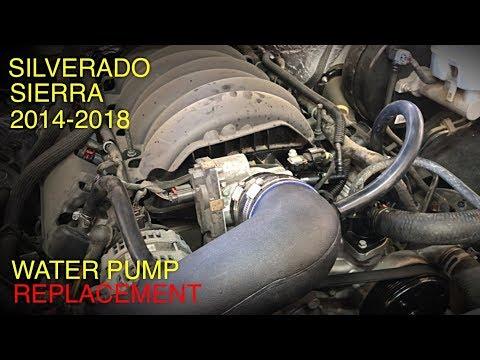

🔧 Sierra 1500 - Water Pump Replacement

Your Sierra 1500’s water pump circulates coolant through the engine and radiator. If it’s leaking (coolant trails, drip at the pump, or wobble/noise), replacement is the correct fix to prevent overheating.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool completely before opening the coolant tank.
• ⚠️ Disconnect the negative battery cable—electric cooling fans can turn on unexpectedly.
• ⚠️ Use jack stands if you raise the front—never rely on a jack alone.
• ⚠️ Coolant is toxic—keep it off the ground and away from pets/children.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Drain pan (at least 3-gallon)
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• Torque wrench (10-50 ft-lbs range)
• Serpentine belt tool (specialty)
• Hose clamp pliers
• Trim clip removal tool
• Flat-blade screwdriver
• Gasket scraper
• Shop rags
• Funnel

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump (includes gasket/seal) - Qty: 1
• Engine coolant (Dex-Cool compatible, 50/50 premix) - Qty: 4-5 gallons
• Serpentine belt - Qty: 1 (recommended if cracked/glazed)
• Hose clamps - Qty: 2-4 (if originals are weak)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool fully (upper radiator hose should feel cool).
• Disconnect the negative battery cable using a 10mm socket.
• Set your HVAC to full hot later during bleeding (helps purge air).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Place a drain pan (at least 3-gallon) under the radiator drain area.
• Slowly open the coolant reservoir cap to release any residual pressure.
• Open the radiator drain (if equipped) using a flat-blade screwdriver, and drain coolant.
• If there’s no easy drain, loosen the lower radiator hose clamp using hose clamp pliers and carefully pull the hose to drain.

Step 2: Remove the intake duct (if it blocks access)

• Loosen the clamps with an 8mm socket and remove the intake duct.
• Set it aside so you can clearly see the belt and front of the engine.

Step 3: Remove the fan shroud and electric fan assembly

• Unplug the fan electrical connectors by releasing the locks with a trim clip removal tool.
• Remove the upper shroud fasteners using a 10mm socket.
• Lift the fan/shroud straight up and out (it’s bulky—go slow).

Step 4: Remove the serpentine belt

• Use a serpentine belt tool (specialty) (a long handled wrench made for belt tensioners) with a 15mm socket to rotate the belt tensioner and relieve belt tension.
• Slip the belt off the water pump pulley first, then remove the belt from the front drive.
• Tip: Take a quick photo of belt routing.

Step 5: Disconnect water pump hoses

• Use hose clamp pliers to release the hose clamps on the water pump connections.
• Twist the hoses gently to break them free, then pull them off.
• Catch remaining coolant in the drain pan (at least 3-gallon).

Step 6: Remove the water pump

• Remove the water pump bolts using a 13mm socket and 3/8" drive ratchet with a 3/8" drive extension set as needed.
• Support the pump as the last bolts come out, then remove it from the engine.
• Clean the sealing surface with a gasket scraper and shop rags until it’s smooth and dry.

Step 7: Install the new water pump

• Place the new gasket/seal on the new pump (as supplied).
• Position the new pump and start all bolts by hand to avoid cross-threading.
• Tighten the bolts evenly using a 13mm socket.
• Final tighten using a torque wrench (10-50 ft-lbs range): Torque to 22 Nm (16 ft-lbs).

Step 8: Reconnect hoses and reinstall the belt

• Reinstall hoses and position clamps using hose clamp pliers.
• Route the belt correctly, then rotate the tensioner using the serpentine belt tool (specialty) and 15mm socket, and slip the belt back on.
• Visually confirm the belt is seated in every pulley groove.

Step 9: Reinstall the fan/shroud and intake duct

• Lower the fan/shroud back into place.
• Install fasteners using a 10mm socket.
• Reconnect fan electrical connectors (push until fully locked).
• Reinstall intake duct and tighten clamps using an 8mm socket.

Step 10: Refill and bleed the cooling system

• Reconnect the negative battery cable using a 10mm socket.
• Fill the coolant reservoir (surge tank) using a funnel with Engine coolant (Dex-Cool compatible, 50/50 premix) to the FULL COLD line.
• Start the engine and set the heater to MAX HEAT and LOW fan.
• Let it idle and watch coolant level; add coolant as the level drops.
• Once warm, check for leaks at the pump and hoses using safety glasses.
• Shut the engine off, let it cool, then top off to FULL COLD again.

---

✅ After Repair

• Verify there are no leaks with the engine hot and again after a full cool-down.
• Confirm the heater blows hot air (sign air is purged).
• Watch the temperature gauge on your first test drive and recheck coolant level afterward.
• Properly dispose of old coolant at a recycling/collection facility.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,100 (parts + labor)

DIY Cost: $180-$420 (parts only)

You Save: $470-$680 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
