🔧 Forte - Water Pump Replacement

The water pump circulates coolant through your engine and radiator. If it’s leaking, noisy, or causing overheating, replacement is the correct fix. On your Forte, the water pump is belt-driven and is serviced from the passenger-side wheel well.

Difficulty Level: Intermediate | Estimated Time: 2.0-4.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the radiator cap on a hot engine; coolant can spray and burn you.
• ⚠️ Support the car with jack stands; never rely on a floor jack alone.
• ⚠️ Keep hands/clothes clear of the belt and pulleys while the engine is running.
• ⚠️ Coolant is toxic; catch it in a drain pan and dispose of it properly.
• ⚠️ Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 21mm lug socket
• Breaker bar 1/2"
• Ratchet 3/8"
• Socket set 8mm-19mm
• 10mm socket
• 12mm socket
• 14mm socket
• Torque wrench 3/8" (10-80 Nm range)
• Trim clip remover
• Flathead screwdriver
• Pliers (hose clamp pliers)
• Drain pan (at least 10-quart)
• Funnel
• Plastic gasket scraper
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket / O-ring (if not included with pump) - Qty: 1
• Serpentine belt - Qty: 1
• Engine coolant (Asian vehicle type, phosphate OAT) - Qty: 2 gallons
• Distilled water (if using concentrate coolant) - Qty: 1-2 gallons

---

📋 Before You Begin

• 🧰 Park on level ground, set the parking brake, and chock the rear wheels.
• 🧰 Let the engine cool fully (ideally 2+ hours) before opening the cooling system.
• 🧰 Set your HVAC to full heat later during bleeding (this opens the heater circuit).
• 🧰 Assumption: Stock belt-driven water pump on the 2.0L engine.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve cooling system pressure

• Put on safety glasses and nitrile gloves.
• Slowly loosen the radiator cap to the first stop to release any leftover pressure, then remove it fully by hand.

Step 2: Raise the passenger front corner and remove the wheel

• Use a 21mm lug socket and breaker bar 1/2" to loosen the lug nuts 1 turn (car on the ground).
• Lift at the front passenger jack point using the floor jack, then set the car securely on jack stands.
• Remove the lug nuts with the 21mm lug socket and take off the wheel.

Step 3: Remove the passenger-side splash shield

• Use a trim clip remover and flathead screwdriver to remove the plastic clips.
• Use a 10mm socket and ratchet 3/8" to remove any small bolts, then pull the splash shield out.
• Splash shield removal improves access a lot.

Step 4: Drain the coolant

• Place the drain pan under the radiator drain area.
• Open the radiator drain cock by hand (use pliers only if needed very gently) and let coolant drain fully.
• Close the drain cock by hand when finished (snug only; do not over-tighten).

Step 5: Remove the serpentine belt

• Take a quick photo of the belt routing before removal.
• Use a 14mm socket and ratchet 3/8" on the belt tensioner to rotate it and release belt tension.
• Slide the belt off one pulley, then remove it fully.
• The tensioner is a spring-loaded arm that tightens the belt.

Step 6: Remove the water pump pulley

• Use a 12mm socket and ratchet 3/8" to remove the water pump pulley bolts while holding the pulley steady by hand.
• Remove the pulley and set it aside.
• Torque to 9.8-11.8 Nm (7-9 ft-lbs) on installation.

Step 7: Remove the water pump

• Position the drain pan under the pump area (more coolant will spill).
• Use a 10mm socket and ratchet 3/8" to remove the water pump mounting bolts.
• Pull the pump straight off. If it’s stuck, tap gently with the handle of a flathead screwdriver (do not pry hard on aluminum surfaces).
• Torque to 9.8-11.8 Nm (7-9 ft-lbs) on installation.

Step 8: Clean the mating surface

• Use a plastic gasket scraper to remove old gasket material from the engine surface.
• Wipe clean with shop towels until the surface is smooth and dry.
• No scratches: aluminum seals need smooth surfaces.

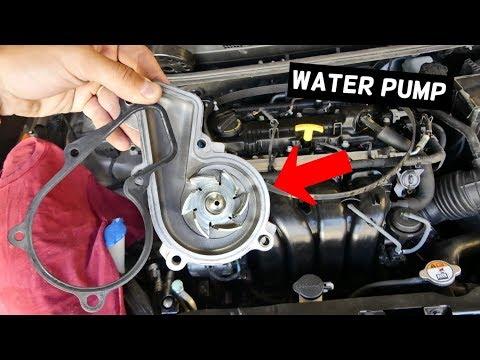

Step 9: Install the new water pump

• Install the new gasket/O-ring onto the new pump (lightly wet an O-ring with fresh coolant; do not use heavy sealant unless your gasket instructions specifically require it).
• Set the pump in place and start all bolts by hand to avoid cross-threading.
• Tighten bolts evenly in a crisscross pattern using a 10mm socket.
• Final tighten with a torque wrench 3/8": Torque to 9.8-11.8 Nm (7-9 ft-lbs).

Step 10: Reinstall the pulley and belt

• Install the water pump pulley and hand-start bolts.
• Tighten with a 12mm socket, then final tighten with a torque wrench 3/8": Torque to 9.8-11.8 Nm (7-9 ft-lbs).
• Route the new belt following your photo, leaving the easiest pulley for last.
• Rotate the tensioner using a 14mm socket, slip the belt on, then slowly release the tensioner.
• Visually confirm the belt is centered on every pulley groove.

Step 11: Refill and bleed the cooling system

• Insert a funnel at the radiator fill and add the correct engine coolant (Asian vehicle type, phosphate OAT).
• Start the engine and set HVAC to hottest temperature with the fan on low.
• Let the engine idle until warm; watch the coolant level and add as it drops.
• Carefully squeeze the upper radiator hose with a gloved hand to help move trapped air.
• When the radiator fans cycle and heat blows hot, top off and install the radiator cap by hand.

Step 12: Reassemble wheel well and reinstall wheel

• Reinstall the splash shield using the 10mm socket, trim clip remover, and flathead screwdriver.
• Reinstall the wheel and snug lug nuts using the 21mm lug socket.
• Lower the car using the floor jack.
• Final tighten lug nuts with a torque wrench 3/8": Torque to 88-108 Nm (65-80 ft-lbs).

---

✅ After Repair

• 🧪 Start the engine and inspect for leaks around the water pump and hoses.
• 🧪 Verify the temperature gauge stays normal and cabin heat works well.
• 🧪 After the first drive and full cool-down, recheck the coolant level and top off as needed.
• 🧪 Check the overflow reservoir level and set it to the “FULL” line when cold.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $90-$220 (parts only)

You Save: $360-$680 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
