🔧 Water Pump - Replacement

On your Transit Connect, the water pump circulates coolant through the engine and radiator to prevent overheating. Replacing it is a bigger job because the pump is driven by the timing belt, so correct engine timing and careful reassembly are critical.

Difficulty Level: Advanced | Estimated Time: 5-8 hours

Assumption: 1.6L timing-belt-driven water pump.

---

⚠️ Safety & Precautions

• 🛑 Let the engine cool fully before opening the coolant system.
• 🧤 Wear gloves and safety glasses; coolant is toxic and slippery.
• ⚡ Disconnect the negative battery cable to prevent accidental cranking.
• 🧱 Support the vehicle with jack stands; never rely on a floor jack.
• ⛓️ Do not rotate the crank/cams with the timing belt removed; it can cause internal engine damage.
• 📌 Use the correct timing lock tools; “timing” means the crankshaft and camshafts stay synchronized.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 2-gallon)
• Funnel
• Trim clip removal tool
• Flat-blade screwdriver
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 18mm socket
• Socket extension set
• 1/4" ratchet
• 3/8" ratchet
• 1/2" breaker bar
• Serpentine belt tool
• Torque wrench (10-200 Nm range)
• Engine support bar (specialty)
• Ford timing locking tool set for 1.6L (specialty)
• Gasket scraper (plastic)
• Brake cleaner spray
• Shop rags
• Cooling system pressure tester (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket/O-ring (as equipped) - Qty: 1
• Timing belt kit (belt + tensioner + idlers) - Qty: 1
• Fresh coolant (Motorcraft-spec coolant) - Qty: 2-3 gallons (mixed as directed)
• Accessory drive belt (serpentine belt) - Qty: 1
• Single-use torque-to-yield bolts (if required for crank pulley/engine mount) - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Open the hood and remove the key from the vehicle so it cannot crank.
• Disconnect the negative battery terminal using a 10mm socket and secure it aside.
• Plan to replace the timing belt components while you’re in here; reusing an old belt is a common failure point.
• Set up your drain pan and have rags ready—coolant will spill when the pump comes off.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front and remove splash shielding

• Loosen the front wheel lug nuts slightly with a breaker bar and correct-size socket (commonly 19mm socket).
• Lift the front with a floor jack and support it on jack stands.
• Remove the wheel using a 19mm socket.
• Remove the lower splash shield and side shields using a trim clip removal tool and 8mm socket.

Step 2: Drain the coolant

• Place a drain pan under the radiator drain area.
• Open the coolant reservoir cap slowly (only when cool) by hand.
• Drain coolant (radiator drain or lower hose) using a flat-blade screwdriver or hose clamp pliers if needed.

Step 3: Remove the accessory (serpentine) belt

• Relieve belt tension using a serpentine belt tool.
• Slide the belt off and remove it from the engine bay.
• Tip: Take a photo of belt routing.

Step 4: Support the engine and remove the right-side engine mount

• Install an engine support bar (specialty) across the strut towers and lightly support the engine.
• Remove the right engine mount fasteners using 13mm socket, 15mm socket, and/or 18mm socket as equipped.
• Set the mount aside in the order it came off.
• Torque on reassembly: Torque to Ford specification (mount fasteners may be one-time-use).

Step 5: Remove timing covers to access the timing belt

• Remove the upper and lower timing covers using a 8mm socket and 10mm socket.
• Keep bolts grouped by cover location so they return to the correct holes.

Step 6: Set the engine to TDC and lock the timing

• Rotate the engine by hand using a breaker bar on the crank bolt until the engine is at TDC (top dead center) on cylinder 1.
• Install the Ford timing locking tool set for 1.6L (specialty) to lock the camshafts and crankshaft. (A “locking tool” physically holds parts in the correct position.)
• Double-check the timing marks/lock positions before loosening anything.

Step 7: Remove the crank pulley (if required for cover access)

• Remove the crank pulley bolt using a 1/2" breaker bar and appropriate socket.
• Remove the pulley; if it’s stuck, work it off evenly by hand—do not pry against sealing surfaces.
• Torque on reassembly: Torque to Ford specification (crank bolt is commonly torque-to-yield; replace if specified).

Step 8: Release timing belt tension and remove the belt

• Relieve the timing belt tensioner using the correct tool from your Ford timing locking tool set for 1.6L (specialty) and/or a torx/hex bit as equipped.
• Remove the timing belt and inspect the tensioner/idlers.
• Tip: If anything feels rough, replace it.

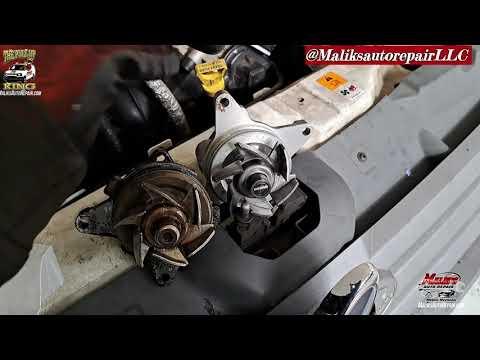

Step 9: Remove the water pump

• Place the drain pan directly under the water pump area.
• Remove water pump bolts using a 10mm socket.
• Gently separate the pump from the engine; coolant will spill as the seal breaks.
• Remove the old gasket/O-ring.

Step 10: Clean the sealing surface

• Clean the engine mating surface using a plastic gasket scraper.
• Wipe with brake cleaner spray on shop rags until clean and dry.
• Do not gouge the aluminum surface.

Step 11: Install the new water pump

• Install the new gasket/O-ring on the new pump (dry unless the gasket instructions say otherwise).
• Position the pump and hand-thread all bolts to avoid cross-threading.
• Tighten bolts evenly in a crisscross pattern using a torque wrench.
• Torque: Torque to Ford specification (water pump fasteners are low-torque; do not overtighten).

Step 12: Install timing belt components and set tension

• Install new idlers/tensioner from the timing belt kit using the correct sockets and a torque wrench.
• Route the new timing belt exactly as specified and set the tensioner indicator per the kit/manual.
• Keep the Ford timing locking tool set for 1.6L (specialty) installed while tensioning.
• Torque: Torque to Ford specification for tensioner/idler fasteners.

Step 13: Verify timing by hand-rotating the engine

• Remove the locking tools.
• Rotate the engine by hand two full revolutions using a breaker bar.
• Reinstall the locking tools and confirm they fit correctly again (this confirms timing alignment).
• If anything doesn’t line up, stop and re-time before proceeding.

Step 14: Reassemble covers, mount, and accessory belt

• Reinstall timing covers using a 8mm socket and 10mm socket.
• Reinstall the crank pulley and bolt using a torque wrench.
• Torque: Torque to Ford specification (replace single-use bolts if required).
• Reinstall the right engine mount using 13mm socket, 15mm socket, and/or 18mm socket, then tighten with a torque wrench.
• Install the new serpentine belt using a serpentine belt tool.

Step 15: Refill coolant and bleed air

• Close the drain and reinstall any hoses/clamps using the appropriate hand tools.
• Refill with the correct Motorcraft-spec coolant using a funnel.
• Start the engine and run the heater on HOT; watch temperature and coolant level.
• Top off as needed as air purges out.

Step 16: Reinstall shields and wheel

• Reinstall splash shields using a trim clip removal tool and 8mm socket.
• Reinstall the wheel using a 19mm socket.
• Lower the vehicle and tighten lug nuts with a torque wrench.
• Torque: Torque to Ford specification for wheel lug nuts.

---

✅ After Repair

• Use a cooling system pressure tester (specialty) to pressure-test and check for leaks.
• Let the engine reach operating temperature and verify the heater blows hot.
• Confirm the radiator fan cycles on and off normally.
• Recheck coolant level after the first full heat cycle and again the next morning (cold).
• Watch for warning lights and any coolant smell or dripping.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor)

DIY Cost: $200-$650 (parts only)

You Save: $700-$1,150 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 5-8 hours.

---
