🔧 Escape - Water Pump Replacement

The water pump circulates coolant through your engine and radiator. If it’s leaking or the bearing is noisy, replacement prevents overheating and engine damage.

Difficulty Level: Intermediate | Estimated Time: 2.5-4.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool completely before opening the coolant cap.
• ⚠️ Coolant is toxic—keep it off skin and away from pets.
• ⚠️ The electric cooling fan can turn on by itself; keep hands/tools clear.
• ⚠️ Support the vehicle with jack stands if you lift it—never rely on a jack alone.
• ⚠️ Battery disconnect is recommended to prevent accidental fan operation.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 10-quart)
• Funnel
• Shop rags
• Plastic trim clip tool
• Serpentine belt tool (specialty)
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–100 Nm range)
• 1/4" drive ratchet
• 1/4" drive torque wrench (2–20 Nm range)
• Socket set: 8mm, 10mm, 13mm, 15mm
• Extension set: 3", 6"
• Torx bit set
• Flat-blade screwdriver
• Hose clamp pliers
• Gasket scraper (plastic)
• Brake cleaner spray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket / seal - Qty: 1
• Engine coolant (Ford-spec orange OAT coolant or equivalent) - Qty: 2-3 gallons (mixed as required)
• Serpentine belt - Qty: 1 (optional but smart if cracked)
• Hose clamp(s) - Qty: 1-2 (only if originals are weak)

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels.
• 🌡️ Make sure the engine is fully cold.
• 🔋 Disconnect the negative battery cable using a 10mm socket.
• 🧴 Place a drain pan under the radiator area to catch coolant.
• 📝 Assumption: This procedure is for the 2.5L engine’s externally-mounted water pump driven by the serpentine belt.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Remove the coolant reservoir cap slowly by hand to release any residual pressure.
• Position the drain pan (at least 10-quart) under the lower radiator area.
• Open the radiator drain (if equipped) or remove the lower splash shield to access the lower hose using a plastic trim clip tool and 8mm socket.
• If draining from the lower hose: use hose clamp pliers to move the clamp back, then twist and pull the hose off carefully.
• Let coolant drain fully, then reinstall the hose and clamp with hose clamp pliers.

Step 2: Remove the right-front lower splash shield (as needed)

• Lift the front-right corner with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the splash shield fasteners using a plastic trim clip tool and 8mm socket.

Step 3: Remove the serpentine belt

• Locate the belt routing sticker (usually on the radiator support). Take a photo for reference.
• Use a serpentine belt tool (specialty) (a long handled lever made for belt tensioners) to rotate the tensioner and relieve belt tension.
• Slip the belt off the water pump pulley first, then remove it from the other pulleys.
• If belt is glazed/cracked, replace it now.

Step 4: Remove the water pump pulley

• Hold the pulley from turning by keeping light tension on the belt (if still installed) or by hand while loosening the bolts.
• Remove the pulley bolts using the appropriate socket and a 3/8" drive ratchet.
• Remove the pulley and set it aside.
• During reassembly: Torque pulley bolts to 25 Nm (18 ft-lbs).

Step 5: Remove the water pump

• Place the drain pan under the pump area—more coolant will spill.
• Remove any obstructing brackets/hoses using a 10mm socket and extensions as needed.
• Remove the water pump mounting bolts using a 10mm socket and 3/8" drive ratchet.
• Pull the water pump straight out. If it’s stuck, tap gently with the palm of your hand—don’t pry hard on the aluminum sealing surface.
• During reassembly: Torque water pump bolts to 10 Nm (89 in-lbs).

Step 6: Clean the sealing surface

• Use a gasket scraper (plastic) to remove old gasket material from the engine surface.
• Spray a small amount of brake cleaner spray on a rag and wipe the surface until clean and dry.
• Clean metal-to-metal sealing prevents leaks.

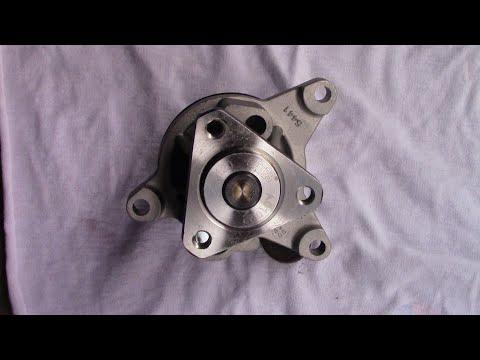

Step 7: Install the new water pump

• Install the new gasket/seal onto the new pump (match orientation exactly).
• Position the pump and start all bolts by hand to avoid cross-threading.
• Tighten bolts evenly in a crisscross pattern using a 10mm socket.
• Final tighten with a 1/4" drive torque wrench (2–20 Nm range): Torque water pump bolts to 10 Nm (89 in-lbs).

Step 8: Reinstall the pulley and serpentine belt

• Reinstall the pulley and start bolts by hand.
• Tighten with a 3/8" drive torque wrench: Torque pulley bolts to 25 Nm (18 ft-lbs).
• Route the belt according to the sticker/photo.
• Use the serpentine belt tool (specialty) to rotate the tensioner and slip the belt onto the last pulley.
• Double-check the belt is fully seated in every pulley groove.

Step 9: Reinstall splash shield and lower the vehicle

• Reinstall the splash shield using a plastic trim clip tool and 8mm socket.
• Lower the vehicle from the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).

Step 10: Refill and bleed the cooling system

• Reconnect the negative battery cable using a 10mm socket.
• Fill the coolant reservoir slowly using a funnel with the correct Ford-spec coolant mix.
• Start the engine and set the heater to max heat and low fan.
• Let the engine idle until it reaches operating temperature and the upper radiator hose gets hot.
• Shut the engine off, let it cool, then top off the reservoir to the proper line.
• Check for leaks around the pump and hose connections using a flashlight and shop rags.

---

✅ After Repair

• 🧪 Road test 10–15 minutes, then re-check for leaks after it cools.
• 🌡️ Watch the temperature gauge—any overheating means stop and recheck coolant level/air pockets.
• 🧴 Recheck coolant level the next morning (engine cold) and top off if needed.
• 🧹 Properly dispose of old coolant at a recycling center—don’t pour it on the ground.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $120-$280 (parts only)

You Save: $530-$770 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
