🔧 Escape - Water Pump Replacement

Replacing the water pump on your Escape means draining the coolant, removing the accessory drive belt, unbolting the old pump, cleaning the sealing surface, and installing the new pump with a fresh gasket. The water pump circulates coolant through the engine and radiator, so a leaking or noisy pump should be replaced before it causes overheating.

Difficulty Level: Intermediate | Estimated Time: 2.5-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool completely before opening the cooling system. Hot coolant can cause severe burns.
• ⚠️ Disconnect the negative battery cable before working near the drive belt area.
• ⚠️ Support your Escape securely with jack stands if raising the front. Never rely on a floor jack alone.
• ⚠️ Keep coolant away from pets and children. It is toxic and often tastes sweet.
• ⚠️ Do not pry against the aluminum engine surfaces. They can gouge easily and cause leaks.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8-inch drive ratchet
• 3/8-inch drive extension set
• 15mm serpentine belt tool (specialty)
• Torque wrench rated 5-80 Nm
• Flat-blade screwdriver
• Plastic gasket scraper
• Drain pan 2-gallon minimum
• Funnel with narrow neck
• Floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• Wheel chocks
• Nitrile gloves
• Safety glasses
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine water pump - Qty: 1
• Water pump gasket or O-ring - Qty: 1
• Engine coolant meeting Ford specification - Qty: 2 gallons premixed or equivalent concentrate mix
• Serpentine belt - Qty: 1 if worn, cracked, glazed, or coolant-soaked

---

📋 Before You Begin

• Park your Escape on level ground and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Allow the engine to cool fully, ideally overnight.
• Open the hood and remove the engine appearance cover if equipped by lifting it upward by hand.
• Disconnect the negative battery cable using a 10mm socket. This prevents accidental starts while your hands are near the belt.
• A serpentine belt is the long rubber belt that drives accessories like the water pump and alternator.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and Secure the Front

• Use a floor jack rated 2-ton minimum to raise the front of your Escape at the front subframe jacking point.
• Place jack stands rated 2-ton minimum under the proper front support points.
• Gently lower the vehicle onto the jack stands and shake the vehicle lightly to confirm it is stable.
• Never work under a jack-only vehicle.

Step 2: Remove the Lower Splash Shield

• Put on safety glasses and nitrile gloves.
• Use an 8mm socket or 10mm socket to remove the lower splash shield fasteners.
• Set the shield and fasteners aside in order so they go back in the same locations.

Step 3: Drain the Coolant

• Place a drain pan 2-gallon minimum under the radiator drain area.
• Slowly remove the coolant reservoir cap by hand to release any remaining pressure.
• Open the radiator drain valve with a flat-blade screwdriver if equipped, or loosen the lower radiator hose clamp carefully if needed.
• Allow the coolant to drain until the flow slows to a drip.
• Close the drain valve by hand or with the flat-blade screwdriver. Do not overtighten plastic drain fittings.

Step 4: Remove the Serpentine Belt

• Take a clear photo of the belt routing with your phone before removal.
• Fit the 15mm serpentine belt tool onto the belt tensioner.
• A belt tensioner is a spring-loaded arm that keeps the belt tight.
• Rotate the tensioner to release belt tension, then slide the belt off the water pump pulley.
• Slowly release the tensioner. Do not let it snap back.
• Remove the belt fully if it is being replaced. Otherwise, move it aside.

Step 5: Remove the Water Pump Pulley

• Use a 10mm socket to loosen the water pump pulley bolts.
• If the pulley spins, hold it carefully by hand with a shop towel while loosening the bolts.
• Remove the pulley bolts and pull the pulley straight off.
• Set the pulley aside with the bolts.

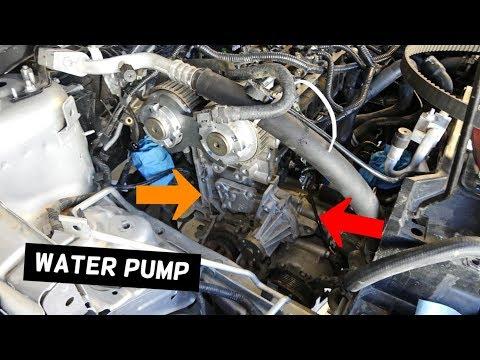

Step 6: Remove the Old Water Pump

• Place shop towels below the pump area to catch remaining coolant.
• Use an 8mm socket or 10mm socket to remove the water pump mounting bolts.
• Note bolt locations if different lengths are used.
• Pull the water pump straight away from the engine.
• If it is stuck, gently tap by hand or carefully work around the edge. Do not gouge the aluminum surface.

Step 7: Clean the Mounting Surface

• Use a plastic gasket scraper to remove old gasket material from the engine surface.
• Wipe the area clean with shop towels.
• Make sure the sealing surface is smooth, dry, and free of old gasket pieces.
• Clean surfaces prevent repeat leaks.

Step 8: Install the New Water Pump

• Install the new water pump gasket or O-ring onto the new pump.
• Position the new engine water pump squarely against the engine.
• Start all bolts by hand first to avoid cross-threading.
• Use a 10mm socket to snug the bolts evenly in a crisscross pattern.
• Use a torque wrench rated 5-80 Nm to tighten the water pump bolts to Torque to 10 Nm (89 in-lbs).

Step 9: Reinstall the Water Pump Pulley

• Place the pulley back onto the water pump hub.
• Start the pulley bolts by hand.
• Use a 10mm socket to snug the bolts evenly.
• Use a torque wrench rated 5-80 Nm to tighten the pulley bolts to Torque to 25 Nm (18 ft-lbs).

Step 10: Reinstall the Serpentine Belt

• Route the belt using your photo and the under-hood belt routing label.
• Use the 15mm serpentine belt tool to rotate the tensioner.
• Slip the belt over the final pulley, then slowly release the tensioner.
• Check that the belt ribs sit fully inside every grooved pulley.
• One rib off can shred the belt.

Step 11: Reinstall the Splash Shield

• Lift the lower splash shield back into place by hand.
• Use an 8mm socket or 10mm socket to reinstall the fasteners.
• Tighten the splash shield fasteners snugly. Do not overtighten plastic retainers.

Step 12: Refill the Cooling System

• Use a funnel with narrow neck to fill the coolant reservoir with engine coolant meeting Ford specification.
• Fill slowly to the cold fill line.
• Reconnect the negative battery cable using a 10mm socket.
• Use a torque wrench rated 5-80 Nm to tighten the battery terminal to Torque to 6 Nm (53 in-lbs).

Step 13: Bleed Air from the Cooling System

• Start the engine and let it idle with the coolant reservoir cap off.
• Set the cabin heater to full hot and fan to low using the dashboard controls.
• Watch the coolant level in the reservoir and add coolant as the level drops.
• When warm air comes from the vents and the upper radiator hose gets hot, most air has purged.
• Install the reservoir cap by hand once the level stabilizes.

Step 14: Final Leak Check

• Use a flashlight if available and inspect around the water pump, hose areas, and radiator drain.
• Shut the engine off and let it cool.
• Recheck the coolant level and top off with the funnel with narrow neck if needed.

---

✅ After Repair

• ✅ Test drive your Escape for 10-15 minutes while watching the temperature gauge.
• ✅ Park on clean pavement and check underneath for coolant drips.
• ✅ After the engine cools completely, recheck coolant level and top off to the cold fill line.
• ✅ Recheck the serpentine belt alignment visually after the test drive.
• ✅ Dispose of used coolant at a recycling center or auto parts store that accepts coolant.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$750 (parts + labor)

DIY Cost: $90-$220 (parts only)

You Save: $300-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
