🔧 Wrangler - Water Pump Replacement

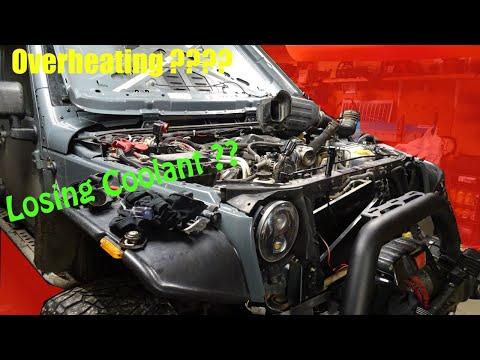

Your water pump circulates coolant through the engine and radiator. When it leaks or the bearing fails, you can lose coolant and overheat, which can damage the engine. This job involves draining coolant, removing the belt and fan/shroud for access, then swapping the pump and refilling/bleeding the cooling system.

Difficulty Level: Intermediate | Estimated Time: 2.5-4.5 hours

---

⚠️ Safety & Precautions

• Let the engine cool completely before opening the radiator cap (hot coolant can spray and burn you).
• Keep hands/tools clear of the fan and belt area; remove the key from the ignition.
• Support the vehicle safely if you raise it: use jack stands, never a jack alone.
• Coolant is toxic—keep it away from kids/pets and dispose of it properly.
• Battery disconnect is recommended: remove the negative cable to prevent accidental fan operation and shorts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Drain pan (at least 10-liter)
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Socket set: 8mm, 10mm, 13mm, 15mm sockets
• Ratchet (3/8" drive)
• Extension set (3/8" drive)
• Torque wrench (in-lb range)
• Torque wrench (ft-lb range)
• Serpentine belt tool (specialty)
• Fan clutch wrench set (36mm) (specialty)
• Flat-blade screwdriver
• Hose clamp pliers
• Trim clip remover
• Gasket scraper (plastic)
• Shop towels
• Funnel

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump (3.6L) - Qty: 1
• Water pump gasket / O-ring (as equipped) - Qty: 1
• Engine coolant (OAT, MS-12106 equivalent) 50/50 premix - Qty: 2-3 gallons
• Serpentine belt - Qty: 1 Replace if cracked/glazed.
• Hose clamps (assorted, worm-gear or OEM-style) - Qty: 1-2

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool fully (ideally overnight).
• Disconnect the negative battery cable using a 10mm socket.
• Set a large drain pan under the radiator area.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Remove the radiator cap slowly once the engine is cool.
• Position the drain pan under the radiator drain.
• Open the radiator drain (petcock) carefully (use a flat-blade screwdriver if needed) and drain the coolant.
• Close the drain once flow stops.

Step 2: Remove the intake ducting (for access)

• Loosen the intake clamps using an 8mm socket and remove the intake tube/resonator as needed.
• Unclip any push-pins with a trim clip remover.

Step 3: Remove the fan shroud and engine-driven fan (if equipped)

• Remove shroud fasteners using a 10mm socket.
• Loosen the fan clutch nut using a fan clutch wrench set (36mm) (specialty).
• Lift the fan and shroud out together carefully to avoid damaging the radiator fins.

Step 4: Release belt tension and remove the serpentine belt

• Rotate the belt tensioner using a serpentine belt tool (specialty) (a long handle tool made to safely move the tensioner).
• Slip the belt off the pulleys and remove it.
• Tip: Take a belt routing photo first.

Step 5: Disconnect hoses at the water pump

• Use hose clamp pliers to slide the clamp back.
• Twist the hose gently to break it free, then pull it off.
• Catch any remaining coolant with the drain pan and use shop towels to control spills.

Step 6: Remove the water pump

• Remove the water pump mounting bolts using a 10mm socket (and extensions as needed).
• Remove the pump from the front cover.
• Clean the sealing surface using a gasket scraper (plastic) and shop towels. Do not gouge the aluminum.

Step 7: Install the new water pump

• Install the new gasket/O-ring onto the new pump (match the old style).
• Position the pump and start all bolts by hand to avoid cross-threading.
• Tighten bolts evenly using a torque wrench (in-lb range): Torque to 12 Nm (105 in-lb).

Step 8: Reconnect hoses and reinstall the belt

• Reinstall hoses and clamps using hose clamp pliers.
• Route the belt according to your photo and apply tension using the serpentine belt tool (specialty).
• Double-check the belt is centered in every pulley groove.

Step 9: Reinstall the fan/shroud and intake ducting

• Reinstall fan and shroud, then tighten the fan clutch nut using the fan clutch wrench set (36mm) (specialty).
• Reinstall shroud fasteners using a 10mm socket.
• Reinstall the intake tube and tighten clamps using an 8mm socket.

Step 10: Refill and bleed the cooling system

• Make sure the radiator drain is closed.
• Fill slowly with OAT, MS-12106 equivalent 50/50 premix coolant using a funnel.
• Start the engine and set the heater to HOT (this helps purge air).
• Let it warm up while watching the temperature gauge.
• Top off the radiator/overflow bottle as the level drops.
• Shut the engine off, let it cool, and recheck the coolant level again.

---

✅ After Repair

• Reconnect the negative battery cable using a 10mm socket.
• Start the engine and check carefully for leaks around the pump and hose connections.
• Test drive 10–15 minutes, then recheck coolant level after it cools.
• If you hear belt squeal or see wobble at the pump area, shut down and recheck belt routing and bolt torque.

---

💰 DIY vs Shop Cost

Shop Cost: ₹18,000-₹35,000 (parts + labor)

DIY Cost: ₹6,500-₹16,000 (parts only)

You Save: ₹11,500-₹19,000 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.5 hours.

---
