🔧 Civic - Water Pump Replacement

On your Civic, the water pump circulates coolant through the engine and radiator. If it’s leaking, noisy, or the engine is overheating, replacing the pump and refilling/bleeding the cooling system will restore proper cooling.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ✅ Work on a fully cool engine; hot coolant can cause severe burns.
• ✅ Support the car with jack stands on a level surface; never rely on a jack alone.
• ✅ Keep fingers/clothing clear of pulleys and belt paths.
• ✅ Coolant is toxic—catch it in a drain pan and dispose of it properly.
• ✅ Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 10-quart)
• Funnel
• Shop towels
• Plastic trim clip remover
• Flathead screwdriver
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" torque wrench (10–80 Nm range)
• 3/8" extension (3"–6")
• Serpentine belt tool or 14mm box wrench
• Plastic razor scraper
• Hose clamp pliers

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket / O-ring (as equipped) - Qty: 1
• Honda-compatible coolant (Type 2 premix) - Qty: 2 gallons
• Serpentine drive belt - Qty: 1 Optional but smart if cracked

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool completely (ideally overnight).
• Raise the front of the car with a floor jack and support it securely with jack stands.
• Remove the lower engine splash shield to access the radiator drain and the belt area.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower splash shield

• Use a plastic trim clip remover and flathead screwdriver to pop the plastic clips.
• Use a 10mm socket with a 3/8" ratchet to remove any bolts.
• Set the shield and fasteners aside so nothing gets lost.

Step 2: Drain the coolant

• Place a drain pan under the radiator drain.
• Slowly loosen the radiator cap (only if fully cool) by hand to relieve any leftover pressure.
• Open the radiator drain cock using a flathead screwdriver (or by hand if it has a finger tab) and drain into the pan.
• Close the drain cock once flow stops.

Step 3: Remove the serpentine belt

• Serpentine belt = the single belt that drives accessories.
• Use a 14mm socket with a 3/8" ratchet (or a 14mm box wrench) on the belt tensioner.
• Rotate the tensioner to relieve belt tension, then slip the belt off a pulley.
• Release the tensioner slowly and remove the belt fully.

Step 4: Remove the water pump pulley (if equipped)

• Use a 10mm socket with a 3/8" ratchet to remove the pulley bolts.
• Remove the pulley and set it aside.
• Torque spec (install later): Torque to 12 Nm (9 ft-lbs)

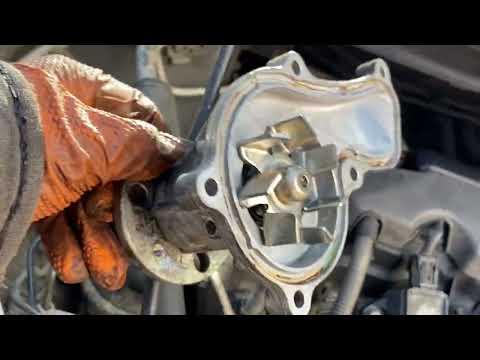

Step 5: Remove the water pump

• Place the drain pan under the pump area (more coolant will spill).
• Remove the water pump mounting bolts using a 10mm socket and/or 12mm socket with a 3/8" ratchet and extension.
• Pull the pump straight off the engine. If it’s stuck, tap it gently by hand—do not pry hard against the aluminum surfaces.
• Remove and discard the old gasket/O-ring.

Step 6: Clean the sealing surface

• Use a plastic razor scraper to clean old gasket material from the engine mating surface.
• Wipe clean with shop towels. The surface must be clean and dry.
• No gouges—aluminum scratches can cause leaks.

Step 7: Install the new water pump

• Install the new gasket/O-ring onto the new pump (match how the old one sat).
• Position the pump and start all bolts by hand to avoid cross-threading.
• Tighten bolts evenly in a crisscross pattern using a 10mm socket/12mm socket and 3/8" ratchet.
• Final tighten with a 3/8" torque wrench (a torque wrench measures tightening force accurately): Torque to 12 Nm (9 ft-lbs)

Step 8: Reinstall the pulley (if removed)

• Install the pulley and start bolts by hand.
• Snug the bolts using a 10mm socket and 3/8" ratchet.
• Final tighten with a 3/8" torque wrench: Torque to 12 Nm (9 ft-lbs)

Step 9: Reinstall the serpentine belt

• Route the belt around the pulleys (take a quick photo beforehand for reference).
• Use a 14mm socket and 3/8" ratchet (or 14mm box wrench) to rotate the tensioner.
• Slip the belt into place, then release the tensioner slowly.
• Visually confirm the belt is fully seated in every pulley groove.

Step 10: Refill and bleed the cooling system

• Bleeding removes trapped air so it won’t overheat.
• Make sure the radiator drain cock is closed.
• Refill the radiator with Honda-compatible coolant (Type 2 premix) using a funnel.
• If your Civic has an air bleeder bolt near the thermostat housing, crack it open with a 10mm socket or 12mm socket (varies by fitting), then close it once coolant flows steadily with no bubbles.
• Fill the reservoir to the MAX line.
• Start the engine and set the heater to HOT. Let it idle until the cooling fan cycles on and off.
• Shut the engine off, let it cool, then top off the radiator and reservoir as needed.

Step 11: Reinstall the splash shield

• Reinstall the shield using the 10mm socket and plastic trim clip remover.
• Double-check all clips/bolts are secure before lowering the car.

---

✅ After Repair

• With the engine warm, inspect around the water pump for any coolant seepage.
• Confirm the temperature gauge stays normal during a 10–15 minute test drive.
• After the next full cool-down, recheck the reservoir level and top off if needed.
• If you hear belt squeal, recheck belt routing and that it’s seated on every pulley.

---

💰 DIY vs Shop Cost

Shop Cost: $500-$900 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $420-$680 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
