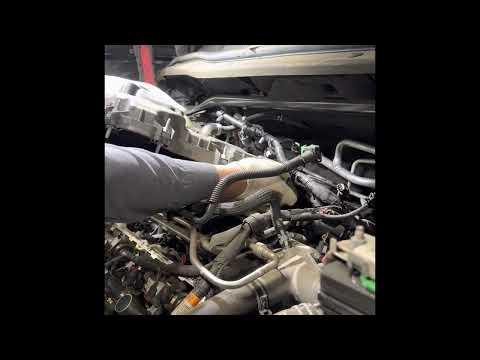

🔧 Water Pump - Replacement

This is an advanced repair on your Explorer because the water pump is mounted behind the timing cover. That means the front of the engine has to come apart, and the timing components must be handled carefully. If the pump has been leaking, also check the engine oil for coolant contamination before driving again.

Difficulty Level: Advanced | Estimated Time: 8-12 hours

---

⚠️ Safety & Precautions

• Let the engine cool completely before opening the cooling system. Hot coolant can cause serious burns.
• Disconnect the negative battery cable before starting. This prevents accidental cranking.
• Support the vehicle securely on jack stands if you need access from below.
• Keep the timing chain and cam timing marks aligned at all times. Engine damage can happen if timing is lost.
• If coolant has mixed with engine oil, do not run the engine until the oil and filter are changed.
• Use drain pans for coolant and oil. Keep pets away from spilled coolant.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Metric socket set
• Metric wrench set
• 1/4-inch drive ratchet
• 3/8-inch drive ratchet
• 1/2-inch drive ratchet
• Torque wrench
• Breaker bar
• Serpentine belt tool
• Harmonic balancer puller (specialty)
• Timing chain holding tool (specialty)
• Seal puller
• Plastic scraper
• Drain pan
• Funnel
• Floor jack (rated 3-ton minimum)
• Jack stands
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket or seal - Qty: 1
• Timing cover gasket set - Qty: 1
• Front crankshaft seal - Qty: 1
• Serpentine belt - Qty: 1
• Engine coolant - Qty: 2 gallons
• Engine oil - Qty: 1 oil change set, if coolant contamination is found
• Oil filter - Qty: 1, if coolant contamination is found
• One-time-use timing cover bolts - Qty: 1 set
• One-time-use crankshaft pulley bolt - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine cool fully.
• Disconnect the negative battery cable.
• Drain the coolant into a clean drain pan.
• Remove the engine cover and air intake ducting for access.
• Keep timing parts organized by location.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the cooling system

• Use a drain pan to remove the coolant from the radiator drain or lower hose.
• Open the coolant reservoir cap slowly after the engine is cold.
• Save only if the coolant is clean and fresh; otherwise replace it.

Step 2: Remove intake and accessory components

• Use a metric socket set to remove the air intake duct, air box parts, splash shields, and any covers blocking the front of the engine.
• Use a serpentine belt tool to release tension and remove the drive belt.
• Use a metric socket set to remove the tensioner or idler parts if they block access.

Step 3: Remove the crankshaft pulley

• Use a breaker bar and metric socket set to loosen the crankshaft pulley bolt.
• Use a harmonic balancer puller (specialty) to pull the crankshaft pulley off the crankshaft.
• Torque on reassembly: follow factory spec for the crankshaft pulley bolt.

Step 4: Remove the front timing cover

• Use a metric socket set to remove the timing cover bolts in a crisscross pattern.
• Carefully separate the cover with a plastic scraper; do not pry into the sealing surfaces.
• Remove the cover and inspect for coolant tracks, sludge, or rust.
• Torque on reassembly: follow factory spec for timing cover bolts.

Step 5: Lock and mark the timing system

• Use a timing chain holding tool (specialty) to keep the cam timing stable.
• Rotate the engine by hand only if needed, and align the timing marks exactly as required.
• Do not rotate the crankshaft after the chain is loose.

Step 6: Remove the water pump

• Use a metric socket set to remove the water pump mounting bolts.
• Remove the pump straight off the engine.
• If the pump is stuck, tap lightly with a soft mallet; do not damage the aluminum surface.
• Clean the mounting surface with a plastic scraper.

Step 7: Install the new water pump

• Install the new gasket or seal on the new pump.
• Set the pump in place and start all bolts by hand.
• Use a torque wrench to tighten the pump bolts evenly in a crisscross pattern.
• Torque to factory spec for the water pump bolts.

Step 8: Reinstall the timing cover and crank pulley

• Install the new front crankshaft seal and timing cover gasket as needed.
• Use a metric socket set to reinstall the timing cover bolts.
• Torque to factory spec for the timing cover bolts.
• Install the crankshaft pulley with a new bolt if required.
• Torque to factory spec for the crankshaft pulley bolt.

Step 9: Reinstall belt and intake parts

• Use a serpentine belt tool to install the drive belt.
• Reinstall the intake ducting, air box parts, and splash shields with a metric socket set.
• Reconnect the negative battery cable.

Step 10: Refill and bleed the cooling system

• Use a funnel to refill with the correct coolant mix.
• Bleed air from the system per Ford procedure until the coolant level stabilizes.
• Check for leaks at the pump, cover, hoses, and drain points.

---

✅ After Repair

• Start the engine and let it idle while checking for leaks.
• Watch the temperature gauge and verify normal operating temperature.
• Top off coolant after the engine cools again.
• If coolant was found in the oil, change the oil and filter before driving.
• Test drive briefly, then recheck coolant level and leak points.

---

💰 DIY vs Shop Cost

Shop Cost: $1,500-$2,800 (parts + labor)

DIY Cost: $250-$600 (parts only)

You Save: $1,250-$2,200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 8-12 hours.

---
