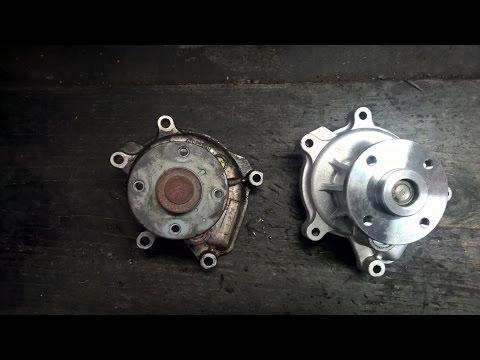

🔧 Water Pump - Replacement

On your Yaris, the water pump circulates coolant through the engine and radiator. A leaking pump can cause overheating, coolant loss, and engine damage, so replacing it at the first sign of seepage or bearing noise is the right move.

Difficulty Level: Intermediate | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• Let the engine cool fully before opening the cooling system. Hot coolant can cause severe burns.
• Disconnect the negative battery cable with a 10mm wrench before starting.
• Use a drain pan and dispose of coolant properly. Coolant is toxic to people and animals.
• Keep hands clear of the belt and pulleys. Do not crank the engine with the belt removed.
• Work on a level surface and support the car with jack stands if you raise it.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• Ratchet
• Short extension
• Torque wrench
• Drain pan
• Funnel
• Flathead screwdriver
• Belt tensioner tool - specialty
• Pliers
• Jack stands
• Floor jack (rated 3-ton minimum)
• Safety glasses
• Gloves
• Gasket scraper
• Plastic trim tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket - Qty: 1
• Toyota Super Long Life Coolant - Qty: 1-2 gallons
• Serpentine belt - Qty: 1
• Water pump bolts - Qty: 1 set

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine cool completely.
• Disconnect the negative battery cable.
• Raise the front of the car only if needed for access, then support it on jack stands.
• Have a drain pan ready before opening the cooling system.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Place the drain pan under the radiator drain area.
• Open the radiator drain or lower hose clamp and drain enough coolant to get below the water pump level.
• Keep coolant off painted surfaces.

Step 2: Remove the engine cover and intake parts

• Use a 10mm socket and flathead screwdriver to remove the upper engine cover and any intake ducting blocking access.
• Set the parts aside in order.

Step 3: Remove the serpentine belt

• Use the belt tensioner tool to rotate the tensioner and release belt tension.
• Slip the belt off the pulleys and remove it.
• If the belt is glazed, cracked, or noisy, replace it now.

Step 4: Remove the water pump pulley and access components

• Use a 12mm socket to remove the water pump pulley bolts if equipped.
• Remove any brackets, splash shields, or covers blocking the pump with a 10mm socket or 14mm socket as needed.

Step 5: Remove the water pump

• Use a 10mm socket to remove the water pump bolts in a crisscross pattern.
• Break the pump loose gently and remove it from the engine.
• Use a gasket scraper to clean the mounting surface until it is smooth and dry.
• Do not gouge the aluminum surface.

Step 6: Install the new water pump

• Install the new water pump gasket and position the new pump on the engine.
• Start all bolts by hand with a 10mm socket on the ratchet.
• Tighten the water pump bolts evenly to 10 Nm (89 in-lbs).
• If your pump uses a pulley, install it and tighten the pulley bolts to 19 Nm (14 ft-lbs).

Step 7: Reinstall the belt and removed parts

• Use the belt tensioner tool to reinstall the serpentine belt on the correct pulley path.
• Reinstall any brackets, covers, intake ducts, and the engine cover using a 10mm socket.
• Make sure the belt is centered on every pulley.

Step 8: Refill and bleed the cooling system

• Use a funnel to refill with Toyota coolant slowly.
• Bleed air from the system by running the engine with the heater set to hot and the radiator cap off if accessible.
• Add coolant as the level drops until the system stabilizes.
• Tighten the radiator drain to 3.4 Nm (30 in-lbs) if equipped with a drain plug.

Step 9: Final tighten and recheck

• With a 10mm socket, recheck all removed fasteners.
• Inspect the pump, hose connections, and drain area for leaks.
• Make sure the coolant reservoir is set to the correct mark.

---

✅ After Repair

• Start the engine and let it reach operating temperature.
• Check for leaks around the pump, hoses, and drain point.
• Verify the heater blows warm air, which helps confirm air is purged.
• Recheck coolant level after the first drive and top off as needed.
• Watch the temperature gauge for the next few trips.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $90-$220 (parts only)

You Save: $360-$630 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
