🔧 Focus - Water Pump Replacement

Replacing the water pump stops coolant leaks and restores proper coolant flow so your Focus doesn’t overheat. On your Focus, the water pump is engine-driven by the accessory (serpentine) belt, so you’ll remove the belt and pump, then refill and bleed the cooling system.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: 2.0L Ti-VCT with external belt-driven water pump.

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant reservoir hot; let the engine cool fully.
• ⚠️ Support the car with jack stands; never rely only on a floor jack.
• ⚠️ Keep coolant off belts and electrical connectors; wipe spills immediately.
• ⚠️ Wear gloves and safety glasses; coolant is toxic and irritating.
• ⚠️ Battery disconnect is not required, but keep tools clear of the radiator fan area.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 2-gallon)
• Funnel
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8" ratchet
• 3/8" breaker bar
• 3" and 6" socket extensions
• Torque wrench (inch-pound)
• Torque wrench (foot-pound)
• Trim clip remover
• Flathead screwdriver
• Pliers
• Gasket scraper
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket / seal - Qty: 1
• Engine coolant (Motorcraft Yellow or equivalent, 50/50) - Qty: 2 gallons
• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (upper radiator hose should feel cool).
• Set your HVAC to heat later during bleeding (you’ll do that after refill).
• Place a drain pan under the radiator area before opening the cooling system.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front and remove the right-front wheel

• Use floor jack to lift the front-right jack point, then set the car on jack stands.
• Remove the wheel using a 19mm lug wrench (if you have one) or your wheel tool kit.
• Wheel off = much better access.

Step 2: Remove the right splash shield (fender liner)

• Use a trim clip remover and flathead screwdriver to remove the plastic clips/screws.
• Pull the liner back to expose the belt drive area on the passenger side.

Step 3: Drain enough coolant to get below pump level

• Place the drain pan under the radiator drain area.
• Slowly loosen the coolant reservoir cap by hand to release any leftover pressure.
• Drain coolant from the radiator drain (or remove the lower radiator hose clamp using pliers if equipped that way).
• Drain until the level is below the water pump area.

Step 4: Remove the serpentine belt

• Locate the belt tensioner.
• Use a 15mm socket with a breaker bar to rotate the tensioner and relieve belt tension.
• Slide the belt off one pulley, then release the tensioner slowly.
• Take a photo of belt routing.

Step 5: Remove the water pump pulley (if equipped)

• If your pump has a bolt-on pulley, remove the pulley bolts using a 10mm socket.
• Torque on install: Torque to 25 Nm (18 ft-lbs).
• If the pulley wants to spin, hold it steady by hand while you crack bolts loose (small turns).

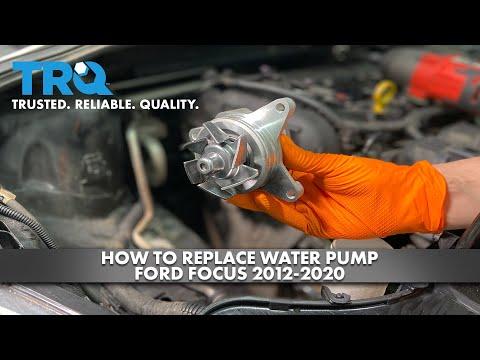

Step 6: Remove the water pump

• Put the drain pan directly under the pump; more coolant will spill.
• Remove water pump mounting bolts using a 10mm socket and extensions.
• Gently separate the pump from the engine. Use a flathead screwdriver carefully if needed, but do not gouge the aluminum surface.
• Remove the old gasket/seal.

Step 7: Clean the sealing surface

• Use a gasket scraper and shop towels to clean the engine’s water pump mounting surface until smooth and dry.
• Do not let debris fall into the opening; wipe frequently.

Step 8: Install the new water pump and gasket

• Install the new gasket/seal onto the new pump (match orientation).
• Position the pump and hand-start all bolts using your fingers (prevents cross-threading).
• Tighten bolts evenly in a crisscross pattern using a 10mm socket.
• Torque: use an inch-pound torque wrench and Torque to 10 Nm (89 in-lbs).
• Even tightening prevents leaks.

Step 9: Reinstall the pulley (if removed)

• Install the pulley and start bolts by hand.
• Tighten with a 10mm socket.
• Torque: Torque to 25 Nm (18 ft-lbs).

Step 10: Reinstall the serpentine belt

• Route the belt per your photo.
• Use a 15mm socket and breaker bar to rotate the tensioner.
• Slip the belt onto the last pulley, then slowly release the tensioner.
• Visually confirm the belt ribs are fully seated in every pulley groove.

Step 11: Reinstall splash shield and wheel

• Reinstall the fender liner using the trim clip remover and flathead screwdriver as needed.
• Reinstall the wheel and snug lug nuts.
• Lower the car using the floor jack and remove jack stands.
• Tighten lug nuts securely (use your wheel tool; a torque wrench is ideal if available).

Step 12: Refill and bleed the cooling system

• Close the radiator drain (or reinstall/secure the lower hose clamp) using pliers.
• Use a funnel to fill the coolant reservoir with 50/50 coolant to the MAX line.
• Start the engine and set HVAC to high heat and low fan.
• Let it idle until the engine reaches normal temperature; watch the coolant level and top off as it drops.
• Check for leaks around the pump with a flashlight (use safety glasses).
• Shut off engine, let cool, then recheck and set the level to the MAX line.

---

✅ After Repair

• Test drive 10–15 minutes, then park and inspect for any fresh coolant drips.
• After the engine cools fully, recheck coolant level and top off if needed.
• Listen for belt squeal; if present, re-check belt seating on all pulleys.
• Dispose of old coolant properly (most parts stores accept it).

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $90-$220 (parts only)

You Save: $360-$680 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
