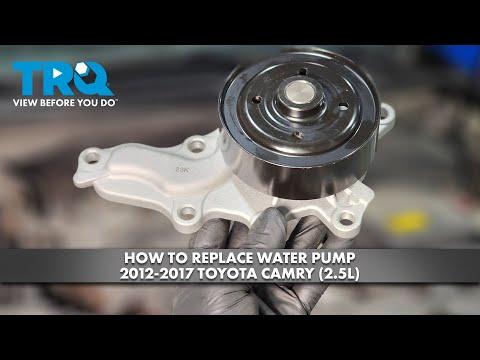

🔧 Water Pump - Replacement

Your Camry uses an engine-driven water pump. This repair involves draining coolant, removing the drive belt, and swapping the pump and gasket. You’ll then refill and bleed the cooling system so the engine doesn’t overheat.

Difficulty Level: Intermediate | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• Let the engine cool completely before opening the cooling system. Hot coolant can cause severe burns.
• Disconnect the negative battery cable before starting.
• Keep coolant away from pets and children; it is toxic.
• Use jack stands if you raise the front of the vehicle. Never rely on a jack alone.
• Replace the drive belt if it shows cracking, glazing, or fraying.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• Ratchet
• Extension bar
• Torque wrench
• Drain pan
• Funnel
• Pliers
• Flat-blade screwdriver
• Floor jack (rated 3-ton minimum)
• Jack stands
• Safety glasses
• Mechanic gloves
• Plastic scraper

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket - Qty: 1
• Coolant - Qty: 1 vehicle fill
• Drive belt - Qty: 1
• Thermostat gasket/O-ring - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine cool fully before draining coolant.
• Disconnect the negative battery cable.
• Raise the front of the vehicle only if needed for splash shield access.
• Keep the drain pan ready before opening anything.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Place a drain pan under the radiator drain area.
• Open the radiator drain cock carefully and drain the coolant.
• If needed, remove the radiator cap after the engine is fully cool to speed draining.
• Dispose of old coolant properly.

Step 2: Remove the engine cover and intake ducting

• Use a 10mm socket to remove the engine cover hardware, if equipped.
• Remove the intake ducting as needed for access using a flat-blade screwdriver and 10mm socket.

Step 3: Remove the drive belt

• Use a 14mm socket or belt tensioner tool on the tensioner arm.
• Rotate the tensioner to release belt tension, then slide the belt off the pulleys.
• Inspect the belt now; replace it if worn.

Step 4: Remove access components

• Remove the right front wheel and splash shield if needed for better access.
• Use a jack and jack stands if you lift the vehicle.
• Use a 10mm socket to remove splash shield fasteners.

Step 5: Remove the water pump

• Use a 10mm socket to remove the water pump bolts.
• Remove the pump straight off the engine.
• Be ready for more coolant to spill out.
• Use a plastic scraper to clean the sealing surface.
• Do not scratch the aluminum surface.

Step 6: Install the new water pump

• Install the new gasket on the pump or engine side as designed.
• Position the new pump and start all bolts by hand.
• Use a torque wrench to tighten the water pump bolts evenly.
• Torque to 10 Nm (89 in-lbs).

Step 7: Reinstall the belt and removed parts

• Route the drive belt correctly over all pulleys.
• Use the 14mm socket to rotate the tensioner and slip the belt into place.
• Reinstall the splash shield, wheel, intake ducting, and engine cover using the correct sockets.

Step 8: Refill coolant and bleed air

• Close the radiator drain cock.
• Refill with the correct Toyota-compatible coolant using a funnel.
• Start the engine and let it idle with the heater set to hot.
• Top off coolant as the air purges.
• Watch for bubbles and keep the coolant level in range.

Step 9: Check for leaks

• Inspect the water pump area, drain cock, and hose connections for leaks.
• Shut the engine off, let it cool, and recheck the coolant level.
• Top off if needed.

---

✅ After Repair

• Road test the vehicle and watch the temperature gauge.
• Recheck for coolant leaks after the test drive.
• Verify the heater blows hot air and the engine stays at normal operating temperature.
• Recheck coolant level again the next morning when cold.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $180-$320 (parts only)

You Save: $470-$730 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
