🔧 Camry - Water Pump Replacement

This job replaces the engine coolant water pump, which circulates coolant through the engine to prevent overheating. A failing pump can leak coolant, make noise, or cause overheating, so replacement is important to protect the engine.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: this is the engine coolant water pump (not the inverter coolant pump).

---

⚠️ Safety & Precautions

• Let the engine cool completely before opening the cooling system; hot coolant can cause severe burns.
• Your Camry is a hybrid: do not touch any orange high-voltage cables or connectors.
• Support the car with jack stands; never work under a car held only by a jack.
• Keep coolant off paint and away from pets; it is toxic and attractive to animals.
• Battery disconnect is not required for the engine water pump, but keep the car OFF while unplugging connectors.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 2-gallon)
• Funnel
• Spill-free coolant funnel kit (specialty)
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (5-80 Nm range)
• 6" extension (3/8" drive)
• Phillips screwdriver
• Trim clip removal tool
• Hose clamp pliers
• Pick tool
• Plastic gasket scraper
• Shop towels
• OBD2 scan tool (basic) (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine water pump assembly (engine coolant pump) - Qty: 1
• Water pump gasket / O-ring (as equipped) - Qty: 1
• Toyota Super Long Life Coolant (pink, pre-mixed) - Qty: 2-3 gallons
• Serpentine drive belt - Qty: 1 (replace if cracked or glazed)
• Hose clamps - Qty: 1-2 (only if originals are weak)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Make sure the engine is stone cold (preferably sit overnight).
• Set the HVAC temperature to HOT later during bleeding (this opens the heater circuit).
• Have a plan to capture and properly recycle used coolant (most parts stores accept it).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front of the car and remove shields

• Use a floor jack (rated 3-ton minimum) to lift the front jack point, then set the car onto jack stands (rated 3-ton minimum).
• Use a 10mm socket, Phillips screwdriver, and trim clip removal tool to remove the front under cover/splash shield fasteners.

Step 2: Drain the engine coolant

• Place a drain pan (at least 2-gallon) under the radiator drain cock.
• Slowly loosen the radiator cap first to release any residual pressure, then open the drain cock and drain coolant fully.
• If equipped with an engine block drain and you can access it safely, use a 10mm socket to open it for a more complete drain.

Step 3: Remove intake/upper access items (as needed)

• Remove the engine cover by pulling upward (no tools).
• Use a 10mm socket and Phillips screwdriver to loosen the air intake duct/clamps and move the duct out of the way for working space.

Step 4: Remove the drive belt (only if your pump is belt-driven)

• Inspect the pump area: if you see a pulley on the pump, it is belt-driven.
• Use a 14mm socket on the belt tensioner bolt and rotate to relieve tension, then slip the belt off. Take a photo of belt routing.
• If you are new to this: the “belt tensioner” is a spring-loaded arm that keeps the belt tight.

Step 5: Disconnect the water pump electrical connector (if equipped)

• If your pump has a connector, press the lock tab and unplug it by hand; use a pick tool gently only if the tab is stuck.
• Keep the car OFF while unplugging connectors.

Step 6: Remove coolant hoses from the pump

• Use hose clamp pliers to compress the clamp and slide it back on the hose.
• Twist the hose gently to break it loose, then pull it off. Use a drain pan (at least 2-gallon) for spills.
• Use shop towels to catch remaining coolant.

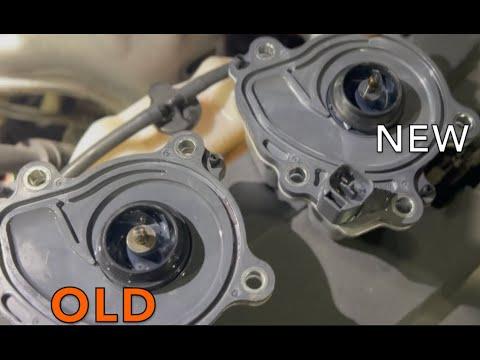

Step 7: Remove the water pump

• Use a 10mm socket and 12mm socket with a 3/8" drive ratchet and 6" extension (3/8" drive) to remove the water pump mounting bolts.
• Remove the pump and old gasket/O-ring.
• Clean the mating surface with a plastic gasket scraper; do not gouge aluminum. Clean and dry is leak-free.

Step 8: Install the new water pump

• Install the new gasket/O-ring onto the new pump (light coolant film is okay for O-rings).
• Position the pump and start all bolts by hand to avoid cross-threading.
• Tighten evenly in a crisscross pattern using a 3/8" drive torque wrench (5-80 Nm range). A torque wrench is a tool that tightens bolts to an exact safe tightness.
• Torque to 10 Nm (89 in-lbs) for typical M6 water pump bolts. If your pump uses larger M8 bolts, Torque to 21 Nm (15 ft-lbs).

Step 9: Reinstall hoses and reconnect electrical connector

• Reinstall hoses fully seated, then position clamps using hose clamp pliers.
• Reconnect the pump connector until it clicks (if equipped).

Step 10: Reinstall the drive belt (if removed)

• Route the belt according to your photo.
• Use a 14mm socket to rotate the tensioner and slip the belt on.
• Double-check the belt is fully seated on every pulley groove.

Step 11: Reinstall splash shield/under cover and lower the car

• Use a 10mm socket, Phillips screwdriver, and trim clip removal tool to reinstall the under cover.
• Lift slightly with the floor jack (rated 3-ton minimum), remove jack stands (rated 3-ton minimum), then lower the car.

Step 12: Refill and bleed the cooling system

• Fill the radiator slowly with Toyota Super Long Life Coolant (pink, pre-mixed) using a spill-free coolant funnel kit (specialty).
• Fill the coolant reservoir to the FULL line.
• Put the car into READY and set HVAC to HOT with fan on low. The engine may start/stop on its own, so watch coolant level closely.
• If the engine won’t stay running long enough to bleed air, use hybrid “maintenance mode” (common Toyota sequence):
• • With the car in IG-ON (not READY), press the accelerator twice.
  • Shift to N, press the accelerator twice.
  • Shift to P, press the accelerator twice.
  • Hold brake and press Power to READY; confirm maintenance/inspection mode if displayed.
• Let it warm up until you get steady heat from the vents, and the radiator fan cycles at least once.
• Top off coolant as bubbles purge, then install the radiator cap.

---

✅ After Repair

• Check for leaks around the pump and hose connections while the engine is warm.
• Test drive 10-15 minutes, then recheck coolant level after it cools and top off the reservoir if needed.
• Use an OBD2 scan tool (basic) (specialty) to clear/check any stored coolant pump or temperature-related codes.
• If you replaced the belt, listen for squeal; if present, recheck belt seating.

---
