🔧 Civic - Water Pump Replacement

The water pump keeps coolant moving through your engine and radiator. When it leaks or the bearing wears out, you can get coolant loss, overheating, or a whining/grinding noise. On your Civic, the water pump is belt-driven on the passenger side of the engine.

Difficulty Level: Intermediate | Estimated Time: 2.5-4.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the radiator cap on a hot engine; hot coolant can cause severe burns.
• ⚠️ Support the car with jack stands; never rely only on a floor jack.
• ⚠️ Keep hands and tools away from the belt path; pinch hazard.
• ⚠️ Coolant is toxic; clean spills immediately and dispose properly.
• 🔋 Battery disconnect is not strictly required, but disconnecting the negative cable helps prevent accidental starts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 10-quart)
• Funnel
• Trim clip remover
• Phillips screwdriver
• 10mm socket
• 12mm socket
• 14mm socket
• 19mm socket
• 3/8" ratchet
• 3/8" torque wrench
• 3/8" breaker bar
• Serpentine belt tool (specialty)
• Plastic scraper
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket/O-ring - Qty: 1
• Engine coolant (Honda Type 2 compatible premix) - Qty: 2 gallons
• Serpentine/drive belt - Qty: 1 Optional but smart if worn

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool fully (ideally overnight) before draining coolant.
• Put the HVAC to HOT (full heat) so coolant can circulate through the heater core during bleeding.
• Disconnect the negative battery terminal using a 10mm socket. This prevents accidental cranking
• Assumption: Bolt torques listed below are best-effort for the 1.8L engine; if you have access to an OEM manual, follow OEM torque specs.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front and remove the passenger wheel

• Use a floor jack to lift the front passenger side at the correct jacking point.
• Set the car on jack stands.
• Remove the passenger front wheel using a 19mm socket.

Step 2: Remove the passenger-side splash shield (fender liner)

• Remove plastic clips with a trim clip remover.
• Remove screws with a Phillips screwdriver.
• Pull the liner back to access the belt and water pump area.

Step 3: Drain the coolant

• Place a drain pan (at least 10-quart) under the radiator drain area.
• Slowly remove the radiator cap once the engine is cold.
• Open the radiator drain (petcock) and let coolant drain fully. Use shop rags to catch drips.

Step 4: Remove the drive belt

• Use a serpentine belt tool (specialty) to rotate the belt tensioner and release belt tension.
• Slip the belt off the pulleys and remove it from the engine bay.
• Tip: Take a quick photo of belt routing.
• What “tensioner” means: it’s a spring-loaded pulley that keeps the belt tight automatically.

Step 5: Remove the water pump pulley (if equipped/accessible)

• If the pulley blocks pump removal, loosen the pulley bolts using a 10mm socket while the belt is still off.
• Remove the pulley and set it aside.
• Tip: Hold the pulley by hand while cracking bolts loose.

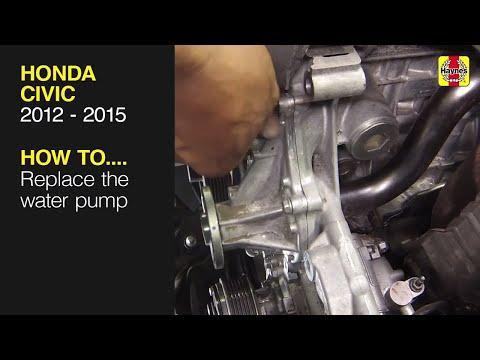

Step 6: Unbolt and remove the water pump

• Place the drain pan under the pump area; more coolant will spill when the pump comes off.
• Remove the water pump mounting bolts using a 10mm socket and/or 12mm socket (bolt heads can vary by fastener location).
• Gently break the seal and pull the pump away from the engine.
• Torque reference (best-effort): Water pump bolts Torque to 12 Nm (9 ft-lbs).

Step 7: Clean the sealing surface

• Use a plastic scraper to remove old gasket material without gouging the aluminum.
• Wipe clean with shop rags until the surface is smooth and dry.
• Tip: Do not use a metal razor on aluminum.

Step 8: Install the new water pump and gasket

• Install the new gasket/O-ring on the new pump.
• Position the pump on the engine and hand-start all bolts to prevent cross-threading.
• Tighten bolts evenly in a crisscross pattern using a 3/8" ratchet.
• Final tighten with a 3/8" torque wrench: Torque to 12 Nm (9 ft-lbs).

Step 9: Reinstall the pulley (if removed) and drive belt

• Reinstall the pulley and snug bolts using a 10mm socket.
• Torque reference (best-effort): Water pump pulley bolts Torque to 12 Nm (9 ft-lbs).
• Route the belt and rotate the tensioner with the serpentine belt tool (specialty), then slip the belt fully onto all pulleys.
• Visually confirm the belt ribs sit correctly in every pulley groove.

Step 10: Reinstall splash shield and wheel

• Reinstall the fender liner using the trim clip remover and Phillips screwdriver.
• Reinstall the wheel using a 19mm socket.
• Lower the car with the floor jack.
• Torque reference (best-effort): Wheel lug nuts Torque to 108 Nm (80 ft-lbs) using a 3/8" torque wrench (or appropriate torque wrench).

Step 11: Refill and bleed the cooling system

• Refill the radiator with Honda Type 2 compatible premix coolant using a funnel.
• Fill the overflow reservoir to the MAX line.
• Reconnect the negative battery cable using a 10mm socket.
• Start the engine and let it idle with the radiator cap off until the thermostat opens (upper hose gets hot) and bubbles reduce.
• Top off coolant as the level drops, then install the radiator cap.
• Let the engine reach operating temperature and confirm the heater blows hot air.

---

✅ After Repair

• Check for leaks around the water pump with the engine running and again after a short drive.
• Watch the temperature gauge; stop driving immediately if it climbs unusually high.
• After the first full heat-soak/cool-down cycle (next day), recheck the radiator and overflow reservoir and top off as needed.
• Inspect belt tracking: the belt should run centered and quiet.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $120-$280 (parts only)

You Save: $370-$930 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
