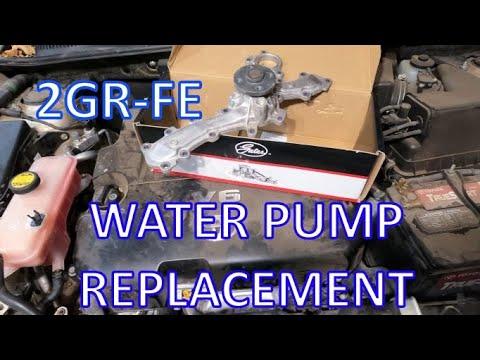

🔧 RAV4 - Water Pump Replacement

The water pump circulates coolant through your A4—sorry, your RAV4—engine and radiator to prevent overheating. On your RAV4’s V6, the pump is belt-driven, so you’ll remove the serpentine belt, unbolt the pump, clean the sealing surface, then refill and bleed the cooling system.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine; hot coolant can cause severe burns.
• ⚠️ Support the vehicle with jack stands; never rely on a floor jack alone.
• ⚠️ Coolant is toxic—use a drain pan and keep it away from kids/pets.
• ⚠️ If you remove the right engine mount, you must support the engine from below.
• ⚠️ Battery disconnect is not required, but disconnecting the negative terminal helps prevent accidental shorts near the alternator.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 10-quart)
• Funnel
• Metric socket set (10mm, 12mm, 14mm, 17mm, 19mm)
• 3/8" drive ratchet
• 3/8" drive extensions (3" and 6")
• Torque wrench (inch-pound)
• Torque wrench (foot-pound)
• 14mm combination wrench
• Trim clip removal tool
• Flat-blade screwdriver
• Gasket scraper (plastic)
• Shop rags
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket / O-ring - Qty: 1
• Toyota Super Long Life Coolant (pink, pre-mixed) - Qty: 2-3 gallons
• Serpentine drive belt - Qty: 1 Recommended while you’re here

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (overnight is best).
• Remove the radiator cap only when cool to release any leftover pressure.
• If you plan to remove the right-side engine mount, position a floor jack under the engine with a block of wood to spread the load. Wood protects the oil pan

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the vehicle and remove splash shields

• Use floor jack (rated 3-ton minimum) to lift the front, then set it on jack stands (rated 3-ton minimum).
• Use trim clip removal tool and 10mm socket to remove the engine under cover/splash shield hardware.
• If access is tight, remove the right front wheel using a 19mm socket.

Step 2: Drain the coolant

• Place a drain pan (at least 10-quart) under the radiator drain cock.
• Use a flat-blade screwdriver (if needed) to open the radiator drain cock and drain coolant.
• Remove the radiator cap (engine cool) to help it drain faster.

Step 3: Loosen the water pump pulley bolts (before belt removal)

• With the belt still on (it helps hold the pulley), use a 10mm socket to crack loose the water pump pulley bolts (do not remove them yet).
• Just “break them free” now—finish later.

Step 4: Remove the serpentine belt

• Use a 14mm combination wrench on the belt tensioner to rotate it and relieve belt tension.
• Slide the belt off one pulley, then remove it fully.
• Snap a quick photo of belt routing.

Step 5: Create access (right-side mount area)

• Position the floor jack (rated 3-ton minimum) with a wood block under the engine and gently take the engine’s weight.
• Use a 14mm socket and 17mm socket (as equipped) to remove the right-side engine mount fasteners and the mount/bracket as needed for access.
• Torque on reassembly (engine mount fasteners): Torque to 64 Nm (47 ft-lbs)
• Torque on reassembly (mount bracket bolts): Torque to 52 Nm (38 ft-lbs)
• Keep bolts grouped by location.

Step 6: Remove the water pump pulley

• Use a 10mm socket to remove the pulley bolts the rest of the way.
• Remove the pulley and set it aside.
• Torque on reassembly (pulley bolts): Torque to 21 Nm (15 ft-lbs)

Step 7: Remove the water pump

• Place the drain pan (at least 10-quart) under the pump area (more coolant will spill).
• Use a 10mm socket and 12mm socket (as equipped) to remove the water pump mounting bolts.
• Remove the pump from the engine. If it’s stuck, tap gently with the palm of your hand—do not pry hard on aluminum.

Step 8: Clean the sealing surface

• Use a gasket scraper (plastic) and shop rags to clean the old gasket material off the engine.
• Do not gouge the aluminum sealing surface. It must be smooth and clean.
• Cleanliness prevents leaks.

Step 9: Install the new water pump

• Install the new water pump gasket / O-ring onto the new pump (match how the old one sat).
• Position the new pump and hand-thread all bolts first to avoid cross-threading.
• Use a torque wrench (inch-pound) to tighten water pump bolts evenly.
• Torque to 10 Nm (89 in-lbs)
• Tighten in a crisscross pattern.

Step 10: Reinstall pulley, mount/brackets, and belt

• Reinstall the pulley and use a torque wrench (foot-pound) to tighten the pulley bolts.
• Torque to 21 Nm (15 ft-lbs)
• Reinstall the right-side mount/brackets using 14mm socket / 17mm socket as removed.
• Torque (engine mount fasteners): Torque to 64 Nm (47 ft-lbs)
• Torque (mount bracket bolts): Torque to 52 Nm (38 ft-lbs)
• Route the belt, rotate the tensioner with the 14mm combination wrench, and slip the belt back on.

Step 11: Reinstall splash shields and wheel

• Reinstall the splash shields using the 10mm socket and trim clip removal tool.
• If removed, reinstall the wheel using a 19mm socket.
• Torque wheel lug nuts: Torque to 103 Nm (76 ft-lbs)

Step 12: Refill and bleed the cooling system

• Close the radiator drain cock (snug by hand; do not overtighten).
• Use a funnel to fill the radiator with Toyota Super Long Life Coolant (pink, pre-mixed) until full, then fill the overflow reservoir to the “FULL” line.
• Start the engine and set the heater to HOT (this helps move coolant through the heater core).
• Let it idle and watch the coolant level; top off as air burps out.
• Once the radiator fans cycle and you have steady heat from the vents, shut it off, let it cool, then recheck the radiator and reservoir levels.

---

✅ After Repair

• Check for leaks around the water pump and under the vehicle with a flashlight.
• Test drive 10–15 minutes, then recheck coolant level after a full cool-down.
• Verify the temperature gauge stays normal and the heater works.
• If you hear belt squeal, recheck belt routing and seating on every pulley groove.

---

💰 DIY vs Shop Cost

Shop Cost: $700-$1,200 (parts + labor)

DIY Cost: $180-$380 (parts only)

You Save: $520-$820 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
