🔧 Corolla - Water Pump Replacement

Your Corolla’s water pump circulates coolant through the engine and radiator. If it’s leaking (pink/white crusty residue) or the bearing is noisy, replacing the pump prevents overheating and engine damage.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Only work on a fully cool engine; hot coolant can burn you.
• ⚠️ Support the car with jack stands; never rely on a jack alone.
• ⚠️ Keep coolant off belts and pulleys; it can cause slipping.
• ⚠️ Coolant is toxic—catch it in a drain pan and dispose of it properly.
• ⚠️ Battery disconnect is not required, but keep hands clear of the cooling fan.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 10-quart)
• Funnel
• 10mm socket
• 12mm socket
• 3/8" ratchet
• 3/8" torque wrench (ft-lb)
• 1/4" torque wrench (in-lb) (specialty)
• 3" extension
• Serpentine belt tool or 19mm wrench
• Hose clamp pliers
• Trim clip removal tool
• Plastic scraper
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine water pump - Qty: 1
• Water pump O-ring / gasket - Qty: 1
• Engine coolant (Toyota Super Long Life Coolant, pink, premixed) - Qty: 2 gallons
• Serpentine drive belt - Qty: 1 Recommended if belt is cracked/glazed

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (preferably overnight).
• Raise the front of the car with a floor jack and set it securely on jack stands.
• Remove the lower engine splash shield/under cover to access the pump area.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower splash shield

• Use a trim clip removal tool to pop out the plastic clips.
• Use a 10mm socket with a 3/8" ratchet to remove any 10mm bolts holding the cover on.
• Set the cover and fasteners aside in a small tray.

Step 2: Drain the coolant

• Place a drain pan (at least 10-quart) under the radiator drain cock (bottom of radiator).
• Remove the radiator cap slowly (only when cool) to release any residual pressure.
• Open the drain cock and let coolant drain fully into the pan.
• Tip: Use shop towels to prevent splash.

Step 3: Relieve belt tension and remove the serpentine belt

• The belt tensioner is spring-loaded (it automatically keeps the belt tight).
• Use a serpentine belt tool or 19mm wrench on the tensioner and rotate to relieve tension.
• Slide the belt off one pulley, then remove the belt completely.
• Tip: Take a quick photo of belt routing.

Step 4: Remove the water pump pulley

• Hold the pulley by hand and use a 10mm socket with a 3/8" ratchet to loosen the pulley bolts.
• Remove the pulley bolts, then remove the pulley.
• During reassembly: Torque pulley bolts to 21 Nm (15 ft-lbs).

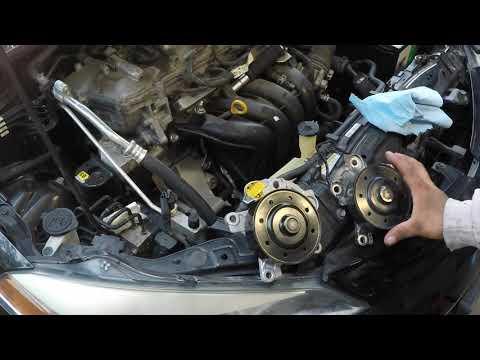

Step 5: Remove the water pump

• Place the drain pan under the pump area; more coolant will spill when the pump comes off.
• Use a 10mm socket with a 3/8" ratchet and extension to remove the water pump mounting bolts.
• Remove the pump from the engine. If it’s stuck, wiggle it gently—don’t pry hard on aluminum surfaces.
• Remove the old O-ring / gasket.

Step 6: Clean the sealing surface

• Use a plastic scraper and shop towels to clean the engine’s water pump mounting surface.
• Do not gouge the aluminum. The surface must be clean and smooth for the new seal.

Step 7: Install the new water pump

• Install the new O-ring / gasket onto the new pump (or in the groove as designed).
• Position the pump and hand-start all bolts to avoid cross-threading.
• Use a 10mm socket to snug the bolts evenly in a crisscross pattern.
• Final tighten with a torque wrench: Torque water pump bolts to 10 Nm (89 in-lbs).

Step 8: Reinstall the pulley and belt

• Reinstall the pulley and start the bolts by hand.
• Use a 10mm socket to snug them, then torque to 21 Nm (15 ft-lbs).
• Route the belt back on all pulleys.
• Use the serpentine belt tool or 19mm wrench to rotate the tensioner and slip the belt onto the last pulley.
• Double-check the belt is fully seated in every pulley groove.

Step 9: Refill and bleed the cooling system

• Close the radiator drain cock.
• Use a funnel to fill the radiator with Toyota Super Long Life Coolant (pink, premixed) until full.
• Fill the coolant reservoir to the “FULL” line.
• Start the engine and set the heater to HOT with the fan on LOW.
• Let the engine warm up until the radiator fan cycles and the upper radiator hose gets hot (thermostat opened).
• Shut the engine off, let it cool, then recheck and top off radiator and reservoir as needed.
• Tip: Watch the temp gauge; shut off if it rises.

Step 10: Reinstall the splash shield and final check

• Reinstall the under cover using the 10mm socket and trim clip removal tool.
• Lower the car from the jack stands using the floor jack.
• With the engine running, inspect around the pump for leaks using a flashlight (no hands near the belt).

---

✅ After Repair

• Check coolant level again after 1-2 heat cycles (a couple normal drives); top off the reservoir if it drops.
• Look under the car for drips and recheck the pump area for dried coolant residue.
• If you hear belt squeal, recheck belt routing and that it’s seated in grooves.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$950 (parts + labor)

DIY Cost: $120-$250 (parts only)

You Save: $430-$700 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
