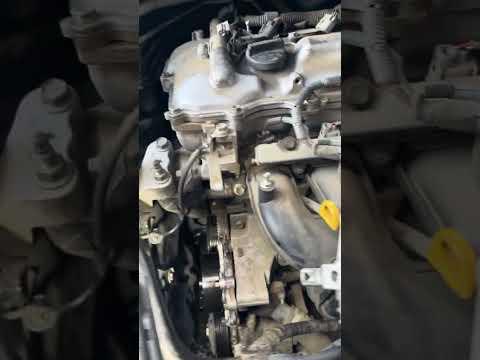

🔧 Corolla - Water Pump Replacement

On your Corolla, the water pump circulates coolant through the engine and radiator. Replacing it involves draining coolant, removing the drive belt, swapping the pump and gasket/O-ring, then refilling and bleeding the cooling system to prevent overheating.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the radiator cap hot—coolant can spray and burn.
• 🧤 Support the car with jack stands; never rely on a floor jack alone.
• 🧯 Keep coolant off belts and wiring; it’s slippery and harmful to pets.
• 🔋 If working close to the alternator wiring, disconnect the negative battery cable.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 2-gallon)
• Funnel
• 10mm socket
• 10mm wrench
• 12mm socket
• 14mm socket
• 19mm wrench
• 3/8" drive ratchet
• 3/8" drive extension (6")
• Torque wrench (inch-pound)
• Torque wrench (ft-lb)
• Trim clip remover
• Flathead screwdriver
• Gasket scraper (plastic)
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine water pump - Qty: 1
• Water pump gasket / O-ring (as supplied with pump) - Qty: 1
• Toyota Super Long Life Coolant (pink, pre-mixed) - Qty: 2 gallons
• Serpentine drive belt - Qty: 1 (recommended if cracked/glazed)

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels.
• 🧊 Let the engine cool completely (best is overnight).
• 🧰 A “torque wrench” is a tool that tightens bolts to an exact spec so you don’t strip threads.
• 🔋 Optional but smart: use a 10mm wrench to disconnect the negative battery cable.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front of the car safely

• Use wheel chocks behind the rear wheels.
• Use a floor jack to lift the front passenger-side jacking point.
• Set the car onto jack stands before you work underneath.

Step 2: Remove the right-front splash access (as needed for access)

• Use a trim clip remover and flathead screwdriver to remove the plastic clips/screws from the passenger-side lower splash shield.
• Pull the shield back enough to reach the belt and water pump area.

Step 3: Drain the coolant

• Place a drain pan under the radiator drain cock (bottom of radiator).
• Slowly remove the radiator cap by hand once fully cool.
• Open the drain cock by hand (or with a flathead screwdriver if needed) and drain coolant into the pan.
• Close the drain cock when finished (snug by hand—do not over-tighten).

Step 4: Loosen the water pump pulley bolts (while the belt is still on)

• Use a 10mm socket and 3/8" ratchet to crack loose the water pump pulley bolts (do not remove them yet).
• Tip: The belt helps hold the pulley.

Step 5: Remove the serpentine belt

• Locate the belt tensioner (a spring-loaded arm that keeps belt tension).
• Use a 19mm wrench on the tensioner bolt head and rotate to relieve belt tension.
• Slip the belt off one pulley, then release the tensioner slowly.
• Remove the belt and set it aside. If reusing, note the belt routing.

Step 6: Remove the water pump pulley

• Use a 10mm socket to remove the pulley bolts completely.
• Remove the pulley by hand.
• On install later: Torque to 21 Nm (15 ft-lbs).

Step 7: Remove the water pump

• Put shop towels under the pump area to catch remaining coolant.
• Use a 10mm socket with a 3/8" ratchet and extension to remove the water pump mounting bolts.
• Pull the pump straight off. Expect more coolant to drain—keep the drain pan underneath.

Step 8: Clean the sealing surface

• Use a plastic gasket scraper to clean old gasket material from the engine mating surface.
• Wipe clean with shop towels until dry and smooth.
• Tip: Don’t gouge aluminum surfaces.

Step 9: Install the new water pump and gasket/O-ring

• Install the new gasket/O-ring onto the new pump (as supplied).
• Position the pump and start all bolts by hand to avoid cross-threading.
• Tighten evenly in a crisscross pattern using a 10mm socket.
• Final tighten using an inch-pound torque wrench: Torque to 10 Nm (89 in-lbs).

Step 10: Reinstall the water pump pulley

• Install the pulley and hand-start the bolts.
• Use a 10mm socket to snug them evenly.
• Final tighten using a ft-lb torque wrench: Torque to 21 Nm (15 ft-lbs).

Step 11: Reinstall the serpentine belt

• Route the belt around the pulleys the same way it came off.
• Use the 19mm wrench to rotate the tensioner, slip the belt on, then release the tensioner slowly.
• Visually confirm the belt is centered in every pulley groove.

Step 12: Reinstall splash shield and lower the car

• Reinstall the splash shield using the trim clip remover and flathead screwdriver as needed.
• Use the floor jack to lift slightly, remove jack stands, then lower the car.

Step 13: Refill and bleed the cooling system

• Pour Toyota Super Long Life Coolant (pink, pre-mixed) into the radiator using a funnel until full.
• Fill the coolant reservoir to the “FULL” line.
• Start the engine and set the heater to HOT with the fan on LOW.
• Let the engine idle until warm; watch for air bubbles and add coolant as the level drops.
• When the radiator fan cycles and the heater blows hot, top off and reinstall the radiator cap.

---

✅ After Repair

• 🔍 With the engine running, check for leaks around the pump and hoses.
• 🌡️ Test drive 10–15 minutes while watching the temperature gauge.
• 🧊 After it cools completely, recheck the radiator and reservoir level and top off as needed.
• 🧪 Dispose of old coolant properly (most parts stores accept it).

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $90-$220 (parts only)

You Save: $360-$630 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
