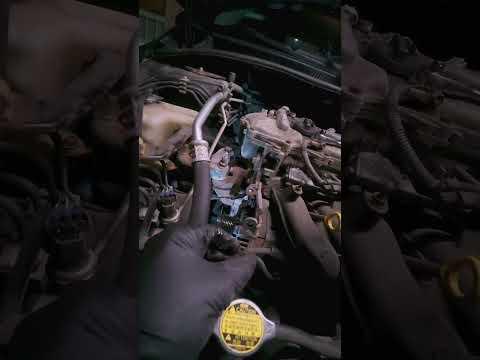

🔧 Water Pump - Replacement

Your Corolla uses a belt-driven water pump on the 1.8L engine. This job involves draining coolant, removing the drive belt, swapping the pump, and refilling/bleeding the cooling system so the engine stays at the right temperature.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Never open the cooling system when the engine is hot. Hot coolant can cause severe burns.
• Support the car securely on jack stands if you need access from below.
• Disconnect the negative battery cable before working near the starter, belt, or alternator wiring.
• Use Toyota-approved coolant mixed to the correct ratio.
• Replace the water pump gasket and any coolant seals with the pump.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Metric socket set
• 10mm socket
• 12mm socket
• Ratchet
• Short extension
• Torque wrench
• Belt tensioner tool or long-handled wrench
• Drain pan
• Funnel
• Plastic scraper
• Gasket scraper (plastic)
• Shop towels
• Jack stands
• Floor jack
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump assembly - Qty: 1
• Water pump gasket - Qty: 1
• Engine coolant - Qty: 1-2 gallons
• Thermostat gasket - Qty: 1
• Drive belt - Qty: 1

---

📋 Before You Begin

• Park on level ground and let the engine cool completely.
• Set the parking brake and block the rear wheels.
• Disconnect the negative battery cable.
• Place a drain pan under the radiator drain.
• Take a photo of the belt routing first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Use a drain pan under the radiator.
• Open the radiator drain cock carefully and drain enough coolant to get below the water pump level.
• Close the drain cock once the flow stops.

Step 2: Remove the engine cover and drive belt

• If equipped, lift off the engine cover by hand.
• Use a belt tensioner tool or long-handled wrench to relieve tension on the drive belt.
• Slide the belt off the pulleys and remove it.

Step 3: Remove access components

• Use a 10mm socket and 12mm socket to remove any brackets or covers blocking the water pump.
• Move hoses or wiring clips aside as needed, but do not damage them.

Step 4: Remove the old water pump

• Use a 10mm socket to remove the water pump bolts evenly.
• Pull the pump away from the engine.
• Drain the remaining coolant into the pan.

Step 5: Clean the mounting surface

• Use a plastic scraper and gasket scraper (plastic) to remove old gasket material.
• Wipe the surface clean with shop towels.
• Do not gouge the aluminum surface.

Step 6: Install the new water pump

• Position the new water pump gasket on the new pump or engine side, depending on design.
• Install the pump by hand first to avoid cross-threading.
• Use a 10mm socket to snug the bolts in a crisscross pattern.
• Torque to 10 Nm (89 in-lbs).

Step 7: Reinstall brackets and drive belt

• Reinstall any removed brackets or covers using a 10mm socket or 12mm socket.
• Route the belt exactly as it was before.
• Use the belt tensioner tool or long-handled wrench to install the belt on the final pulley.

Step 8: Refill the cooling system

• Use a funnel to fill with the correct Toyota coolant mix.
• Fill the radiator and reservoir to the proper level.
• Leave the radiator cap off for initial bleeding if needed.

Step 9: Bleed air from the system

• Start the engine and let it idle with the heater set to hot.
• Watch the coolant level and add fluid as air escapes.
• When the thermostat opens, the level may drop. Top it off.
• Install the radiator cap once no more bubbles appear.

Step 10: Final inspection

• Use a flashlight to check the pump area for leaks.
• Check belt tracking and listen for unusual noises.
• Recheck coolant level after a full heat cycle and again the next day.

---

✅ After Repair

• Verify the temperature gauge stays normal during a full drive.
• Inspect for coolant leaks around the pump, hose connections, and drain cock.
• Recheck the reservoir level after the engine cools completely.
• If the heater does not blow hot, the system still has air and needs more bleeding.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $120-$260 (parts only)

You Save: $330-$640 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
