🔧 Optima - Water Pump Replacement

Your Optima’s water pump circulates coolant through the engine and radiator. When it leaks or the bearing wears out, it can cause overheating and coolant loss, so replacement is important to protect the engine.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Let the engine cool completely before opening the coolant reservoir cap.
• ⚠️ Support the car with jack stands; never rely on a floor jack alone.
• ⚠️ Keep coolant off belts and pulleys; it can cause belt slip.
• ⚠️ Coolant is toxic—clean spills immediately and dispose of old coolant properly.
• ⚠️ Battery disconnect is not required, but keep hands/tools clear of the radiator fan (it can turn on unexpectedly).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" breaker bar
• 3/8" ratchet
• 3/8" torque wrench
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" extension set
• Flat-blade screwdriver
• Trim clip remover
• Serpentine belt tool (specialty)
• Drain pan (at least 2 gallons)
• Funnel
• Gasket scraper or plastic razor scraper
• Shop rags
• Brake cleaner spray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket / O-ring (usually included with pump) - Qty: 1
• Hyundai/Kia long-life coolant (P-OAT) premix 50/50 - Qty: 2 gallons
• Serpentine drive belt (recommended while you’re in there) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool fully (upper radiator hose should feel cool).
• Quick fitment check: look at the passenger-side/front of the engine for a water pump with a pulley driven by the serpentine belt. These steps assume the pump is belt-driven and accessible from the wheel-well/undercover.
• If your pump is behind the timing cover, stop and tell me.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front and remove the passenger front wheel

• Use a 21mm socket and 1/2" breaker bar to loosen lug nuts 1 turn while the car is on the ground.
• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the wheel with the 21mm socket.
• Reinstall later and Torque to 108 Nm (80 ft-lbs).

Step 2: Remove the lower splash shield and passenger splash liner (as needed)

• Use a 10mm socket, trim clip remover, and flat-blade screwdriver to remove the clips/bolts holding the lower engine cover and the passenger-side splash liner.
• Set fasteners aside in a tray so nothing gets lost.

Step 3: Drain the coolant

• Place a drain pan (at least 2 gallons) under the radiator drain area.
• Slowly loosen the coolant reservoir cap by hand to release any residual pressure.
• Open the radiator drain (petcock) and allow coolant to drain fully. Use a flat-blade screwdriver only if your drain style requires it.
• Close the drain when finished.

Step 4: Remove the serpentine belt

• Use a serpentine belt tool (specialty) to rotate the belt tensioner and slide the belt off a smooth pulley.
• Snap a photo of belt routing first.
• Inspect the belt for cracks/glazing; replace if worn.

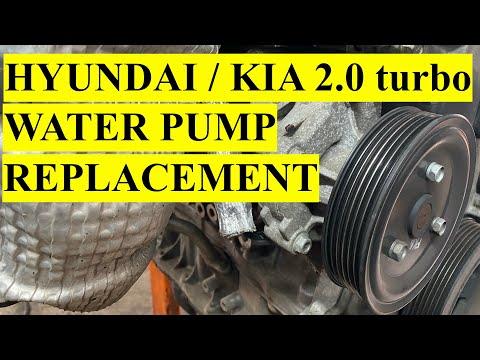

Step 5: Remove the water pump pulley

• Hold the pulley from turning by keeping light tension on the belt (if still routed) or by holding the pulley carefully by hand while loosening bolts.
• Use a 10mm socket (common size here) and a 3/8" ratchet to remove the pulley bolts, then remove the pulley.
• When reinstalling the pulley bolts, Torque to 10 Nm (7 ft-lbs).

Step 6: Remove the water pump

• Put shop rags under the pump area (more coolant will spill).
• Remove water pump mounting bolts using a 12mm socket with a 3/8" ratchet and 3/8" extensions as needed.
• Pull the pump straight off the engine. If it’s stuck, gently tap it by hand—do not pry hard on aluminum sealing surfaces.

Step 7: Clean the sealing surface

• Use a gasket scraper or plastic razor scraper to remove old gasket material from the engine surface.
• Spray a little brake cleaner spray on a shop rag and wipe the surface until it’s clean and dry.
• Do not gouge the aluminum.

Step 8: Install the new water pump

• Install the new gasket/O-ring onto the new pump (match the original orientation).
• Position the pump and start all bolts by hand to avoid cross-threading.
• Tighten bolts evenly in a crisscross pattern using a 12mm socket and 3/8" ratchet.
• Final tighten with a 3/8" torque wrench: Torque to 12 Nm (9 ft-lbs).

Step 9: Reinstall the pulley and serpentine belt

• Install the pulley and hand-start bolts, then tighten with a 10mm socket.
• Use a 3/8" torque wrench to finish: Torque to 10 Nm (7 ft-lbs).
• Route the belt correctly (use your photo), rotate the tensioner with the serpentine belt tool (specialty), and slip the belt fully onto the last pulley.
• Visually confirm the belt ribs are seated in every pulley groove.

Step 10: Reinstall splash shields and the wheel

• Reinstall the splash liner/undercover using the 10mm socket, trim clip remover, and flat-blade screwdriver.
• Reinstall the wheel and snug lug nuts with the 21mm socket.
• Lower the car and final-tighten lug nuts with a 3/8" torque wrench: Torque to 108 Nm (80 ft-lbs).

Step 11: Refill coolant and bleed air

• Pour coolant in using a funnel until the reservoir reaches the MAX line.
• Start the engine and set the heater to HOT (this helps purge air).
• Let it idle and watch the coolant level; add as needed with the funnel.
• Once the radiator fan cycles and you have steady heat, shut the engine off and let it cool completely, then top off to MAX.

---

✅ After Repair

• Check for leaks around the water pump with the engine idling and again after a short test drive.
• Recheck coolant level the next morning (cold engine) and top off if needed.
• Listen for belt squeal; if present, re-check belt routing and seating on pulleys.
• If the temperature gauge rises above normal, shut down and re-bleed the cooling system.

---

💰 DIY vs Shop Cost

Shop Cost: $500-$900 (parts + labor)

DIY Cost: $120-$250 (parts only)

You Save: $380-$650 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
