🔧 Grand Cherokee - Water Pump Replacement

The water pump circulates coolant through your engine and radiator. When it leaks or the bearing fails, you can overheat quickly, so replacing it promptly prevents engine damage.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine; hot coolant can cause severe burns.
• ⚠️ The electric cooling fan can turn on unexpectedly; disconnect the battery negative cable before working near the fan/belt area.
• ⚠️ Support the hood securely and keep hands/clothes away from the belt path.
• ⚠️ Capture coolant in a drain pan; keep it away from kids/pets and dispose of it properly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Drain pan (10-liter minimum)
• Funnel
• Trim clip removal tool
• Flat-blade screwdriver
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8" ratchet
• 3/8" breaker bar
• 3/8" torque wrench (inch-pound)
• 1/2" torque wrench (ft-lb)
• Serpentine belt tool (specialty)
• Hose clamp pliers
• Plastic scraper
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket / seal - Qty: 1
• Engine coolant (OAT, 50/50 premix) - Qty: 2-3 gallons
• Serpentine belt - Qty: 1
• Hose clamp(s) - Qty: 1-2

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Let the engine cool completely (radiator hoses should feel cool).
• Disconnect the battery negative cable using a 10mm socket.
• Remove any engine cover if equipped (pull upward firmly by hand).
• Place a drain pan (10-liter minimum) under the radiator area.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Remove the coolant reservoir cap slowly to release any leftover pressure.
• Open the radiator drain cock (petcock) and drain into your drain pan (10-liter minimum).
• If your drain cock is stuck, do not force it; use a flat-blade screwdriver gently.

Step 2: Remove the upper air intake duct (if it blocks access)

• Loosen the intake clamps using an 8mm socket or flat-blade screwdriver.
• Unclip/remove the duct and set it aside.

Step 3: Remove the cooling fan assembly (for working room)

• Unplug the fan electrical connector.
• Remove the fan shroud fasteners using a 10mm socket.
• Lift the fan assembly straight up and out carefully.

Step 4: Remove the serpentine belt

• Take a quick photo of the belt routing before removal.
• Rotate the belt tensioner using a serpentine belt tool (specialty) with a 15mm socket. A serpentine belt tool is a long handle made to reach the tensioner in tight spaces.
• Slip the belt off one pulley, then release the tensioner slowly and remove the belt.

Step 5: Disconnect hoses at the water pump area

• Use hose clamp pliers to slide the clamp back on the hose.
• Twist the hose gently to break it free, then pull it off.
• Catch any remaining coolant with shop towels and the drain pan (10-liter minimum).

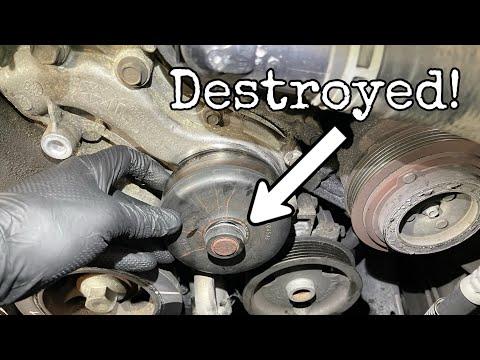

Step 6: Remove the water pump

• Remove the water pump mounting bolts using a 10mm socket.
• Note bolt locations/lengths; lay them out in order on a towel.
• Pull the water pump straight off. If it’s stuck, tap gently by hand—do not pry hard against aluminum surfaces.

Step 7: Clean the sealing surface

• Use a plastic scraper to remove old gasket material from the engine front cover.
• Wipe clean with shop towels. The surface must be clean and dry.
• Do not use metal scrapers on aluminum.

Step 8: Install the new water pump and gasket

• Install the new gasket/seal onto the new pump (most pumps index into place).
• Position the pump and hand-start all bolts to avoid cross-threading.
• Tighten bolts evenly in a crisscross pattern using a 10mm socket.
• Final tighten using a 3/8" torque wrench (inch-pound): Torque to 12 Nm (106 in-lb).

Step 9: Reconnect hoses and reinstall the belt

• Reconnect the hoses and position clamps using hose clamp pliers.
• Route the belt according to your photo and apply tension with the serpentine belt tool (specialty) and 15mm socket.
• Make sure the belt ribs are fully seated in every pulley groove.

Step 10: Reinstall the fan assembly and intake duct

• Lower the fan/shroud back into place.
• Install fasteners using a 10mm socket.
• Plug the fan connector back in.
• Reinstall the intake duct and tighten clamps using an 8mm socket or flat-blade screwdriver.

Step 11: Refill and bleed the cooling system

• Close the radiator drain cock.
• Fill the reservoir slowly using a funnel with engine coolant (OAT, 50/50 premix) until it reaches the FULL mark.
• Reconnect the battery negative cable using a 10mm socket.
• Start the engine and set the heater to HOT with the fan on low.
• Let the engine warm up and watch the coolant level; top off as needed.
• Shut the engine off, let it cool, then recheck and top off again to the FULL mark.

---

✅ After Repair

• Check for leaks around the water pump and hose connections while idling.
• Verify the heater blows hot air (this helps confirm coolant circulation).
• Road test 10-15 minutes, then recheck coolant level after a full cool-down.
• Watch the temperature gauge closely for the next few drives.

---

💰 DIY vs Shop Cost

Shop Cost: ₹18,000-₹40,000 (parts + labor)

DIY Cost: ₹6,000-₹16,000 (parts only)

You Save: ₹12,000-₹24,000 by doing it yourself!

Shop labor rates vary but typically run ₹800-₹2,000/hour. This repair takes a shop approximately 3-5 hours.

---
