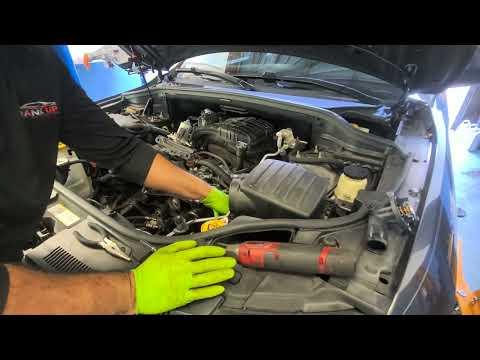

🔧 Water Pump - Replacement

The water pump circulates coolant through your Grand Cherokee’s engine and radiator. If it’s leaking or the bearing is failing, you can get overheating, coolant loss, or a squealing/grinding noise.

Difficulty Level: Intermediate | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant system hot; let the engine cool fully.
• ⚠️ Support the vehicle on jack stands; never rely on a jack alone.
• ⚠️ Keep coolant off skin/eyes and away from pets; it’s toxic.
• ⚠️ If you’ll unplug the electric cooling fan, disconnect the negative battery cable first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 3-gallon)
• Funnel
• Socket set (8mm, 10mm, 13mm, 15mm)
• Ratchet (3/8" drive)
• Extension set (3" and 6")
• Serpentine belt tool or 15mm long-handle wrench
• Torque wrench (in-lb capable)
• Trim clip remover
• Hose clamp pliers
• Plastic scraper
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump (3.6L) - Qty: 1
• Water pump gasket - Qty: 1
• Engine coolant (OAT, 50/50 premix compatible) - Qty: 2-3 gallons
• Serpentine belt - Qty: 1 (recommended if worn or cracked)
• Hose clamp(s) - Qty: 1-2 (only if originals are weak)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (radiator hoses should feel cool).
• If you plan to unplug/remove the electric cooling fan: use a 10mm socket to disconnect the negative battery cable.
• Take a quick photo of the serpentine belt routing before removal. Photos save rework.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front and set up safely

• Use a floor jack to lift the front of the SUV at the approved lift point.
• Place jack stands under the front support points and lower onto them.
• Set wheel chocks behind the rear tires.

Step 2: Drain the coolant

• Place a drain pan under the lower radiator area.
• Slowly loosen the coolant reservoir cap by hand to release any remaining pressure.
• Drain coolant from the radiator drain (if equipped) or by loosening the lower radiator hose clamp using hose clamp pliers.
• Once drained, re-secure the hose/clamp using hose clamp pliers.

Step 3: Remove the upper air intake duct (if it blocks access)

• Loosen intake clamps using an 8mm socket (or flat-blade if your clamp uses a screw head).
• Remove any intake fasteners using a 10mm socket.
• Lift the duct out and set it aside.

Step 4: Remove the electric cooling fan assembly (for working room)

• If not already done, disconnect the negative battery cable using a 10mm socket.
• Unplug the fan electrical connector by releasing the lock tab by hand.
• Remove the fan/shroud fasteners using a 10mm socket.
• Lift the fan assembly straight up and out carefully.
• Electric fan blades are sharp—wear gloves.

Step 5: Remove the serpentine belt

• Place a 15mm long-handle wrench (or serpentine belt tool) on the belt tensioner.
• Rotate the tensioner to relieve tension, then slide the belt off one pulley.
• Slowly release the tensioner back to rest, then remove the belt fully.

Step 6: Disconnect hoses from the water pump area

• Use hose clamp pliers to move the clamp back on the hose.
• Twist the hose gently by hand to break it free, then pull it off.
• Catch any remaining coolant with the drain pan and wipe up with shop towels.

Step 7: Remove the water pump

• Remove the water pump mounting bolts using a 10mm socket and ratchet with extensions as needed.
• Pull the water pump straight off the engine.
• Use a plastic scraper to clean old gasket material off the mating surface.
• Do not gouge aluminum surfaces.

Step 8: Install the new water pump and gasket

• Position the new gasket on the new pump.
• Set the pump in place and start all bolts by hand to avoid cross-threading.
• Tighten bolts evenly using a 10mm socket.
• Final-tighten using an in-lb torque wrench: Torque to 12 Nm (105 in-lb).

Step 9: Reinstall hoses, belt, and fan

• Reinstall hoses and position clamps using hose clamp pliers.
• Route the belt according to your photo, then use the 15mm long-handle wrench (or serpentine belt tool) to slip the belt over the last pulley.
• Reinstall the electric fan assembly using a 10mm socket, then reconnect the fan electrical connector.
• Reconnect the negative battery cable using a 10mm socket.

Step 10: Refill coolant and bleed air

• Use a funnel to refill the coolant reservoir with OAT-compatible 50/50 coolant to the MAX line.
• Start the engine and set the heater to HOT with the blower on LOW.
• Let it idle and watch the temperature gauge. Add coolant as the level drops.
• Once the cooling fan cycles and heat blows hot, shut the engine off and let it cool fully.
• Recheck and top off the reservoir to the MAX line.

---

✅ After Repair

• Check for leaks around the pump and hose connections with the engine running.
• Test drive 10–15 minutes, then recheck coolant level after a full cool-down.
• If the temperature climbs or the heater blows cold, stop and re-bleed (air is still trapped).
• Dispose of used coolant properly (most parts stores accept it).

---

💰 DIY vs Shop Cost

Shop Cost: $700-$1,200 (parts + labor)

DIY Cost: $120-$280 (parts only)

You Save: $420-$1,080 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
