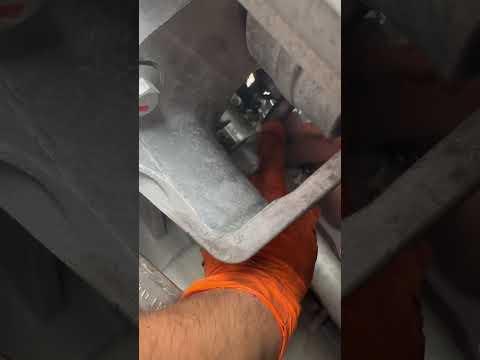

🔧 Equinox - Water Pump Replacement

You’ll be removing the right engine mount and timing chain side covers to replace the water pump on your Equinox. The pump is chain-driven inside the front of the engine, so this job is more complex than a typical belt-driven pump.

Difficulty Level: Advanced | Estimated Time: 6-9 hours

---

⚠️ Safety & Precautions

• ⚠️ Always work on a cold engine; hot coolant can cause serious burns.
• ⚠️ Support the engine with a jack and block of wood whenever the right engine mount is removed.
• ⚠️ Coolant is toxic; keep away from children and animals and clean spills immediately.
• ⚠️ Disconnect the negative battery cable before working near the starter or main harness.
• ⚠️ Use jack stands under the vehicle; never rely on a jack alone.
• ⚠️ The water pump is driven by the timing chain; incorrect assembly can cause engine damage.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (2-ton or higher, Qty: 2)
• 🛠️ Wheel chocks
• 🛠️ Safety glasses
• 🛠️ Mechanic’s gloves
• 🛠️ Socket set (8mm–21mm, 3/8" and 1/2" drive)
• 🛠️ Metric combination wrench set (8mm–19mm)
• 🛠️ 3/8" drive ratchet
• 🛠️ 1/2" drive ratchet
• 🛠️ 3/8" drive torque wrench (5–80 ft-lbs range)
• 🛠️ 1/2" drive torque wrench (50–150 ft-lbs range)
• 🛠️ 3/8" drive extensions (3", 6")
• 🛠️ 1/2" drive breaker bar
• 🛠️ E-torx socket set (E6–E14)
• 🛠️ Torx bit set (T20–T50)
• 🛠️ Serpentine belt tool or 3/8" drive long-handled ratchet
• 🛠️ Water pump sprocket holding tool (GM EN-48953 or equivalent) (specialty)
• 🛠️ Timing chain wedge/retainer tool (GM EN-46112 or equivalent) (specialty)
• 🛠️ Engine support/jack with wood block for oil pan
• 🛠️ Flathead screwdriver (medium)
• 🛠️ Trim clip removal tool
• 🛠️ Pry bar (small)
• 🛠️ Plastic scraper
• 🛠️ Coolant drain pan (at least 10 liters)
• 🛠️ Funnel (coolant-safe)
• 🛠️ Shop rags
• 🛠️ Brake cleaner spray
• 🛠️ Flashlight or work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Water pump (chain-driven type for 2.4L) - Qty: 1
• 🔩 Water pump gasket/O-ring - Qty: 1
• 🔩 Water pump mounting bolts (set, torque-to-yield) - Qty: 1
• 🔩 Right engine mount bolts (mount-to-body and mount-to-engine, torque-to-yield) - Qty: 1 set
• 🔩 Front timing cover gasket set - Qty: 1
• 🔩 Crankshaft pulley bolt (torque-to-yield) - Qty: 1
• 🔩 Serpentine belt - Qty: 1
• 🔩 Dex-Cool compatible coolant (50/50 premix or concentrate) - Qty: ~2 gallons total capacity
• 🔩 RTV silicone sealant (engine oil-resistant, GM-spec equivalent) - Qty: 1 tube
• 🔩 Coolant reservoir cap (optional, if old or cracked) - Qty: 1
• 🔩 Hose clamps (assorted sizes, stainless) - Qty: as needed

---

📋 Before You Begin

• Park the Equinox on a flat, solid surface with plenty of light.
• Set the parking brake and place wheel chocks behind the rear wheels.
• Let the engine cool completely (at least 1–2 hours).
• Disconnect the negative battery cable using a 10mm socket.
• Raise the front of the vehicle with the floor jack and support it securely on jack stands under the front subframe.
• Make sure your coolant drain pan is ready under the radiator before loosening any hoses.
• Read through all steps first so you understand the order.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Place the coolant drain pan under the lower right corner of the radiator.
• Remove the coolant reservoir cap by hand to release pressure.
• Use a flathead screwdriver to loosen the lower radiator hose clamp at the radiator and carefully pull the hose off to drain coolant.
• After draining, push the hose back on and snug the clamp with the flathead screwdriver so it doesn’t drip.
• Coolant may keep dripping slowly for a while.

Step 2: Remove right front wheel and splash shields

• Use a 21mm socket and breaker bar to slightly loosen the right front wheel lug nuts on the ground.
• Raise the front again if needed, support with jack stands, then remove the lug nuts fully with a 21mm socket and remove the wheel.
• Use a trim clip removal tool and 10mm socket to remove plastic clips and screws holding the right inner fender liner and lower splash shield.
• Pull the liner and shield out to expose the crank pulley area.

Step 3: Support the engine and remove the right engine mount

• Place the floor jack with a wide wood block under the oil pan to spread the load.
• Lightly jack up until the wood just contacts the oil pan and supports the engine; do not crush the pan.
• In the upper right engine bay, use a 15mm socket to remove the engine mount-to-body bolts.
• Use a 18mm socket to remove the engine mount-to-engine bracket bolts.
• Lift the mount out of the engine bay and set it aside.
• Always replace torque-to-yield mount bolts with new ones.

Step 4: Remove the serpentine belt

• Note the belt routing or take a photo for reference.
• Insert a 3/8" drive ratchet or serpentine belt tool into the tensioner square hole.
• Rotate the tensioner clockwise to relieve tension and slip the belt off the pulleys by hand.
• Remove the belt from the engine bay.

Step 5: Remove crankshaft pulley (harmonic balancer)

• From the wheel well, use a 21mm socket and breaker bar on the crankshaft pulley bolt.
• Put the transmission in Park and have a helper hold the brakes, then break the crank bolt loose.
• Remove the crank bolt completely with the 21mm socket.
• Use a suitable puller if needed (attach to pulley, turn center bolt with a ratchet) to pull the crank pulley off.
• Do not pry directly on the timing cover.

Step 6: Remove front timing cover and access the water pump area

• Use a 10mm socket to remove bolts holding the plastic upper engine cover and any brackets that block timing cover access.
• Use a 10mm socket and E-torx sockets as needed to remove all timing cover bolts around the perimeter.
• Gently pry the cover free with a plastic scraper or small pry bar, being careful not to damage the sealing surfaces.
• Remove the cover and set it aside; note any dowel pins.
• Clean old RTV and gasket material from the engine and cover with a plastic scraper and brake cleaner.

Step 7: Secure the timing chain and water pump sprocket

• This engine uses a chain-driven water pump; you must hold the chain and sprocket so timing does not jump.
• Install the timing chain wedge/retainer tool between the timing chain and the chain guides according to the tool instructions to prevent slack.
• Install the water pump sprocket holding tool (EN-48953 or equivalent) on the pump sprocket to keep it from rotating.
• Keep the chain tight on the cam/crank side at all times.

Step 8: Remove the water pump and sprocket connection

• Use an appropriate E-torx socket and ratchet to remove the bolts that secure the water pump sprocket to the water pump hub (access through the timing cover opening).
• Leave the sprocket and chain in place, held by the holding tool.
• On the side of the engine block, use a 10mm socket to remove the external water pump mounting bolts.
• Carefully pull the water pump out of the block; some coolant will spill, so keep the drain pan under the area.
• Note the orientation of the pump and gasket.

Step 9: Prepare and install the new water pump

• Clean the water pump mounting surface on the engine with a plastic scraper and brake cleaner until smooth and clean.
• Install the new gasket or O-ring on the new pump; some designs snap into a groove.
• Position the new pump against the engine block, aligning bolt holes and the hub with the sprocket.
• Hand-thread the pump mounting bolts using a 10mm socket and extension, then snug them evenly.
• Tighten the pump mounting bolts with a 10mm socket to 10 Nm (89 in-lbs) in a criss-cross pattern.
• Reinstall the sprocket-to-pump bolts with the E-torx socket and tighten them to 25 Nm (18 ft-lbs).
• Remove the sprocket holding tool and timing chain wedge carefully, ensuring the chain remains properly seated.

Step 10: Reinstall the timing cover

• Apply a thin, continuous bead of RTV silicone sealant to the specified joint corners (oil pan-to-block and block-to-head corners) following GM guidance.
• Install the new timing cover gasket onto the cover.
• Position the timing cover on the engine, aligning dowel pins, and gently push it into place.
• Install all timing cover bolts by hand using a 10mm socket and E-torx sockets, then snug them in stages.
• Tighten the small timing cover bolts with a 10mm socket to 10 Nm (89 in-lbs).
• Tighten the larger bolts to 25 Nm (18 ft-lbs) using the appropriate E-torx socket.
• Allow RTV to skin per sealant instructions (typically 1 hour) before filling oil or coolant.

Step 11: Reinstall the crankshaft pulley and engine mount

• Slide the crank pulley onto the crankshaft by hand, making sure the keyway aligns.
• Install a new crankshaft bolt and snug it with a 21mm socket.
• Hold the crank (Park + helper on brakes or flywheel holding tool) and tighten the crank bolt with a 1/2" drive torque wrench to 95 Nm (70 ft-lbs) plus 75° turn.
• In the upper engine bay, reinstall the right engine mount to the engine bracket using new bolts and a 18mm socket; torque to 90 Nm (66 ft-lbs) plus 45°.
• Reinstall the mount-to-body bolts with a 15mm socket; torque to 60 Nm (44 ft-lbs) plus 45°.
• Lower the jack slightly so the engine weight rests back on the mount, then remove the jack.

Step 12: Reinstall serpentine belt and splash shields

• Route the new serpentine belt around the pulleys following your photo or under-hood diagram.
• Use the 3/8" drive ratchet or belt tool on the tensioner to relieve tension and slip the belt fully into position.
• Double-check the belt is centered on all grooves.
• Reinstall the inner fender liner and splash shield with the trim clip tool and 10mm socket for bolts.
• Reinstall the wheel with a 21mm socket; snug lug nuts now, and final-torque later.

Step 13: Refill and bleed the cooling system

• Lower the vehicle back to the ground carefully using the floor jack.
• Torque the wheel lug nuts with a 21mm socket and torque wrench to 140 Nm (103 ft-lbs) in a star pattern.
• Mix Dex-Cool compatible coolant to 50/50 if using concentrate.
• Using a funnel, slowly fill the coolant reservoir to the full cold line.
• Reconnect the negative battery cable with a 10mm socket.
• Start the engine and let it idle with the heater set to HOT and fan on low.
• Watch the temperature gauge and coolant level; add coolant as the level drops.
• Let the engine reach operating temperature until the radiator fan cycles on, then shut off and let cool fully.
• Recheck the coolant level in the reservoir and top off to the full cold line if needed.

Step 14: Final checks

• Inspect around the water pump, timing cover, and hose connections for any signs of leaks.
• Check that the serpentine belt tracks correctly and is quiet.
• Take a short test drive, then recheck for leaks and coolant level again when cooled.
• Recheck coolant level for several days after repair.

---

✅ After Repair

• Start the engine and confirm there are no warning lights for temperature or low coolant.
• Verify cabin heat works properly, which shows coolant is circulating.
• Check under the vehicle and around the pump/timing cover after the first drive for any fresh coolant or oil.
• Monitor the temperature gauge and coolant level for the next week of driving.
• If you notice overheating, noise from the timing area, or leaks, shut the engine off and recheck your work immediately.

---
