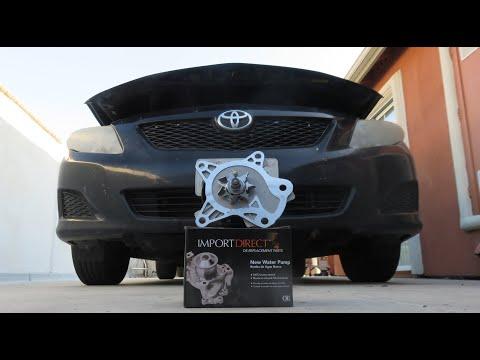

🔧 Corolla - Water Pump Replacement

The water pump circulates coolant through your Corolla’s engine and radiator. If it’s leaking, noisy, or the engine is overheating, replacing the pump restores proper cooling and prevents engine damage.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the radiator cap on a hot engine; let it cool completely.
• ⚠️ Support the car on jack stands; never rely on a floor jack alone.
• ⚠️ Coolant is toxic; keep away from kids and pets and clean spills.
• ⚠️ Keep fingers/clothes clear of the belt path while rotating the tensioner.
• 🔋 Battery disconnect is not required, but remove the key and keep the car off.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (pair, rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 8 liters)
• Funnel
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" extension set
• Torque wrench (inch-pound or low-range Nm)
• Serpentine belt tool or long-handled 14mm wrench
• Trim clip remover
• Flathead screwdriver
• Pliers
• Plastic gasket scraper
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket/O-ring (as supplied with pump) - Qty: 1
• Toyota Super Long Life Coolant (pink, premixed 50/50) - Qty: 2 gallons
• Serpentine drive belt - Qty: 1 (recommended if worn/cracked)
• Plastic under-cover clips - Qty: 4 (as needed)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool fully (upper radiator hose should feel cool).
• Set your HVAC to HEAT later during bleeding so coolant flows through the heater core.
• Take a quick photo of the belt routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front and remove the splash shields

• Use a floor jack to lift the front pinch weld/jacking point, then support with jack stands.
• Remove the lower engine under-cover/splash shield using a 10mm socket and trim clip remover.

Step 2: Drain the coolant

• Place a drain pan under the radiator drain (petcock).
• Slowly remove the radiator cap to relieve any leftover pressure.
• Open the radiator drain using a flathead screwdriver (if slotted) and drain coolant.
• Close the drain when finished (snug only; do not overtighten).

Step 3: Remove the serpentine belt

• Locate the belt tensioner and rotate it to release belt tension using a serpentine belt tool or long-handled 14mm wrench.
• Slide the belt off one pulley, then remove it from the rest of the pulleys.
• If reusing the belt, mark its rotation direction.

Step 4: Remove components blocking the water pump (as equipped)

• If an access shield/liner blocks the pump area, remove it using a 10mm socket and trim clip remover.
• If a hose clamp or bracket prevents access, release it with pliers or remove bolts with a 10mm socket.

Step 5: Remove the water pump

• Place shop towels under the pump area to catch remaining coolant.
• Remove the water pump mounting bolts using a 10mm socket (and extensions as needed).
• Carefully pull the pump away from the engine. More coolant will spill into the drain pan.
• Remove and discard the old gasket/O-ring.

Step 6: Clean the sealing surface

• Use a plastic gasket scraper to clean the engine’s water-pump mounting surface.
• Wipe clean with shop towels. The surface must be smooth and dry.
• Do not gouge aluminum; scrape gently.

Step 7: Install the new water pump

• Install the new gasket/O-ring onto the new pump (match the old position).
• Position the pump and hand-start all bolts to avoid cross-threading.
• Tighten bolts evenly in a crisscross pattern using a 10mm socket.
• Final tighten using a torque wrench: Torque to 10 Nm (89 in-lbs).

Step 8: Reinstall the serpentine belt

• Route the belt around the pulleys exactly as your photo shows.
• Rotate the tensioner with the serpentine belt tool or long-handled 14mm wrench and slip the belt into place.
• Visually confirm the belt ribs are seated in every pulley groove.

Step 9: Reinstall splash shields and lower the car

• Reinstall the under-cover and any access shields using a 10mm socket and trim clip remover.
• Lower the vehicle using the floor jack and remove the jack stands.

Step 10: Refill coolant and bleed air

• Use a funnel to fill the radiator with Toyota Super Long Life Coolant (pink, premixed).
• Fill the overflow reservoir to the FULL line.
• Start the engine and let it idle with the heater set to HOT.
• As the engine warms up, watch the coolant level and top off as needed (air pockets can drop the level).
• When the radiator fan cycles on and off and you have steady cabin heat, shut the engine off and let it cool.
• Recheck and top off the radiator and reservoir once fully cool.

---

✅ After Repair

• Check for leaks around the water pump with the engine running and again after a full cool-down.
• Verify the temperature gauge stays normal during a 10–15 minute test drive.
• Recheck coolant level the next morning (engine cold) and top off if needed.
• Listen for belt squeal; if present, confirm the belt is fully seated on all pulleys.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $80-$220 (parts only)

You Save: $270-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
