🔧 F-150 - Water Pump Replacement

The water pump circulates coolant through your A/C-heater core and radiator to keep the engine at the right temperature. If it’s leaking, squealing, or causing overheating, replacing it prevents engine damage and coolant loss.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Work only on a fully cold engine; hot coolant can spray and burn.
• ⚠️ Support the truck with jack stands before going underneath.
• ⚠️ Keep hands/tools clear of the fan area; it can start unexpectedly on electric-fan trucks.
• ⚠️ Disconnect the negative battery cable if you’ll be working near the fan wiring or main power cables.
• ⚠️ Properly capture/dispose coolant; it’s toxic to people and pets.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 4-gallon)
• Funnel
• Shop rags
• Plastic trim clip tool
• Flat-blade screwdriver
• 1/4" drive ratchet
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Socket set (8mm, 10mm, 13mm, 15mm)
• Wrench set (8mm, 10mm, 13mm, 15mm)
• Serpentine belt tool (specialty)
• Torque wrench (10-150 ft-lbs range)
• Hose clamp pliers (specialty)
• Gasket scraper (plastic)
• Razor blade scraper
• 36mm fan clutch wrench set (specialty)
• Fan pulley holding tool (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket - Qty: 1
• Engine coolant (Ford Gold / Yellow equivalent, 50/50 premix) - Qty: 4-5 gallons
• Distilled water - Qty: 1-2 gallons (if using concentrate)
• Thermostat + gasket/O-ring - Qty: 1 (recommended)
• Serpentine belt - Qty: 1 (recommended if worn/cracked)
• Hose clamps - Qty: 2-6 (as needed if originals are weak)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (overnight is best).
• If raising the front: lift with a floor jack and support with jack stands under the frame.
• Put your drain pan under the radiator drain area.
• Take a photo of the belt routing.
• Quick check: look at your fan—some F-150s have a mechanical fan/clutch, others use an electric fan. The steps below include both paths.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect battery (recommended)

• Use an 8mm socket to loosen the negative battery terminal and remove it.
• Move the cable aside so it can’t spring back onto the post.

Step 2: Drain the coolant

• Place a drain pan (at least 4-gallon) under the radiator drain area.
• Open the degas/overflow cap slowly to relieve any pressure.
• Use a flat-blade screwdriver (or hand-turn if equipped) to open the radiator drain petcock and drain coolant.
• If flow is slow, remove the lower splash shield (if equipped) using a plastic trim clip tool and 10mm socket.

Step 3: Remove the upper intake air duct (for access)

• Use an 8mm socket or flat-blade screwdriver to loosen the hose clamps on the intake duct.
• Disconnect any small breather tubes by hand, then lift the duct out.

Step 4: Remove the fan/shroud area (choose your setup)

• Mechanical fan/clutch setup:
• Remove the fan shroud fasteners using a 10mm socket.
• Use a 36mm fan clutch wrench set (specialty) and fan pulley holding tool (specialty) to loosen the fan clutch nut, then lift the fan and shroud out together.
• Lefty-loosey: loosen by turning counterclockwise.
• Electric fan setup:
• Unplug the fan electrical connector by hand (press the tab).
• Remove fan/shroud bolts using a 10mm socket, then lift the fan/shroud straight up and out.

Step 5: Remove the serpentine belt

• A serpentine belt tool is a long-handled lever that rotates the tensioner safely.
• Use a serpentine belt tool (specialty) to rotate the belt tensioner and slip the belt off the water pump pulley.
• Remove the belt from the rest of the pulleys and set it aside.

Step 6: Remove the water pump pulley

• Hold the pulley by hand and remove the pulley bolts using a 10mm socket.
• Remove the pulley and set it aside.

Step 7: Disconnect hoses at the water pump

• Use hose clamp pliers (specialty) to compress the spring clamps and slide them back on the hose.
• Twist the hose gently by hand to break it loose, then pull it off the water pump.
• Catch remaining coolant with the drain pan and use shop rags for spills.

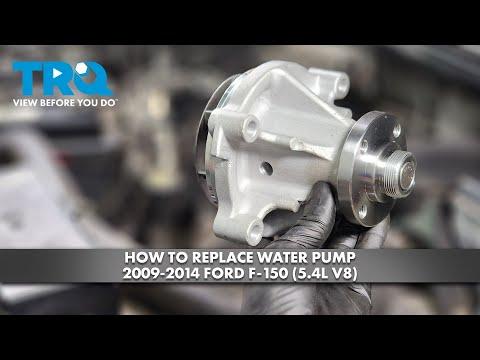

Step 8: Remove the water pump

• Remove the water pump mounting bolts using a 10mm socket and 13mm socket (bolt sizes can vary by location).
• Support the pump with one hand while removing the last bolts so it doesn’t drop.
• Pull the pump straight off the front cover. If stuck, tap gently with the palm of your hand—don’t pry hard on sealing surfaces.

Step 9: Clean the gasket surface

• Use a gasket scraper (plastic) to remove the old gasket material from the engine mating surface.
• Use a razor blade scraper carefully for stubborn spots.
• Wipe the surface clean with shop rags until it’s smooth and dry.
• Do not gouge the aluminum surface.

Step 10: Install the new water pump

• Install the new water pump gasket onto the new pump.
• Position the new pump on the engine and hand-thread all bolts first.
• Tighten the bolts evenly in a crisscross pattern using a 3/8" drive ratchet.
• Final tighten using a torque wrench: Torque to 20 Nm (15 ft-lbs).

Step 11: Reinstall the water pump pulley

• Install the pulley and hand-start the bolts.
• Snug the bolts using a 10mm socket, then final tighten with a torque wrench: Torque to 24 Nm (18 ft-lbs).

Step 12: Reconnect hoses

• Push hoses fully onto their fittings.
• Use hose clamp pliers (specialty) to position clamps back in their original spots.
• Double-check each hose is seated and clamps are tight.

Step 13: Reinstall serpentine belt

• Route the belt using the under-hood belt diagram (or your photo).
• Use the serpentine belt tool (specialty) to rotate the tensioner and slip the belt onto the last pulley.
• Visually confirm the belt is centered on every pulley rib.

Step 14: Reinstall fan/shroud and intake duct

• Reinstall the fan/shroud assembly and bolts using a 10mm socket.
• If mechanical fan: thread the fan clutch onto the hub, tighten with the 36mm fan clutch wrench set (specialty) while holding the pulley with the fan pulley holding tool (specialty).
• If electric fan: reconnect the electrical connector by hand until it clicks.
• Reinstall the intake duct and tighten clamps using an 8mm socket or flat-blade screwdriver.

Step 15: Refill and bleed the cooling system

• Close the radiator drain.
• Use a funnel to fill the degas bottle with 50/50 coolant to the correct level.
• Reconnect the negative battery cable using an 8mm socket.
• Start the engine and let it idle with the heater set to HOT (this helps move coolant through the heater core).
• As the thermostat opens, the coolant level may drop—top off as needed.
• Shut the engine off, let it cool, then recheck and adjust the coolant level again.

---

✅ After Repair

• Check for leaks around the water pump gasket and hose connections while idling and after a short drive.
• Watch the temperature gauge; it should warm up normally and stay steady.
• Verify the heater blows hot (a sign coolant is circulating).
• After 1-2 heat cycles (drive, cool down), recheck coolant level and inspect for any seepage.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,100 (parts + labor)

DIY Cost: $120-$280 (parts only)

You Save: $370-$980 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-6 hours.

---
