🔧 Corolla - Water Pump Replacement

Your Corolla’s water pump circulates coolant through the engine and radiator. If it’s leaking, noisy, or causing overheating, replacement is the correct fix to prevent engine damage.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the radiator cap hot; the system is pressurized.
• 🧤 Wear gloves and safety glasses; coolant is toxic and slippery.
• 🧰 Support the car with jack stands; never rely on a floor jack alone.
• ♻️ Catch and dispose of coolant properly; keep away from pets.
• 🔋 Battery disconnect is not required, but keep hands/tools clear of the cooling fan (it can turn on automatically).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 10-quart)
• Funnel
• Trim clip removal tool
• 10mm socket
• 12mm socket
• 14mm wrench
• 3/8" drive ratchet
• 3/8" drive extension (6")
• Torque wrench (inch-pound and foot-pound capable)
• Flat-blade screwdriver
• Pliers
• Plastic scraper
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump assembly (with gasket/O-ring) - Qty: 1
• Toyota Super Long Life Coolant (pink) premixed - Qty: 1-2 gallons
• Serpentine drive belt - Qty: 1 (optional if worn/cracked)
• Hose clamp(s) - Qty: 1-2 (optional if original clamps are weak)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool fully (ideally 2+ hours) so the coolant isn’t pressurized.
• Set the heater to HOT later during bleeding (this helps purge air from the heater core).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front and remove the lower cover

• Use a floor jack to lift the front, then support with jack stands.
• Remove the engine under cover/splash shield using a trim clip removal tool and 10mm socket.

Step 2: Drain the coolant

• Place a drain pan under the radiator drain.
• Slowly remove the radiator cap to relieve any remaining pressure (only when cool).
• Open the radiator drain cock using a flat-blade screwdriver (if equipped) and drain coolant.
• Tip: Save clean coolant only if it’s fresh.

Step 3: Remove the serpentine belt

• Locate the belt tensioner.
• Use a 14mm wrench on the tensioner hex and rotate to release belt tension, then slip the belt off.
• Tip: Take a quick photo of belt routing.

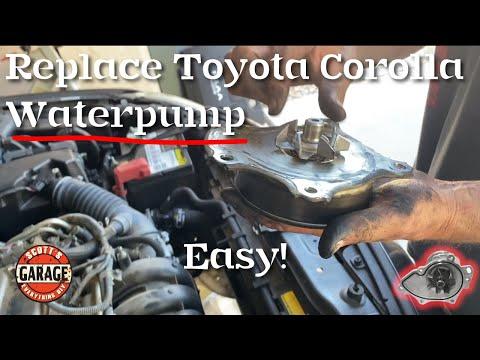

Step 4: Remove the water pump

• Place the drain pan under the water pump area for remaining coolant.
• Remove water pump mounting bolts using a 10mm socket and 3/8" drive ratchet with a 3/8" drive extension (6") as needed.
• Gently separate the pump from the engine. Use a plastic scraper if needed—do not gouge the aluminum surface.

Step 5: Clean the sealing surface

• Use a plastic scraper and shop towels to clean the engine mating surface until it’s smooth and dry.
• Make sure the old gasket/O-ring is fully removed and not stuck to the engine or pump.

Step 6: Install the new water pump

• Install the new gasket/O-ring onto the new pump (as supplied).
• Position the pump and start all bolts by hand to avoid cross-threading.
• Tighten bolts evenly using a 10mm socket.
• Torque to 10 Nm (89 in-lbs) using a torque wrench.
• Tip: Snug in a crisscross pattern.

Step 7: Reinstall the belt

• Route the belt correctly and use a 14mm wrench to rotate the tensioner again.
• Slip the belt on fully and confirm it’s seated in every pulley groove.

Step 8: Reinstall the under cover and lower the car

• Reinstall the splash shield using the trim clip removal tool and 10mm socket.
• Lower the vehicle using the floor jack.

Step 9: Refill and bleed the cooling system

• Refill with Toyota Super Long Life Coolant (pink) premixed using a funnel.
• Start the engine and set the heater to HOT with the fan on low.
• Let the engine idle and warm up; watch the coolant level and top off as it drops.
• When the radiator fan cycles on/off at least once, shut the engine off and let it cool.
• Recheck coolant level in the radiator and overflow bottle, then top off as needed.

---

✅ After Repair

• Check for leaks around the pump area with the engine running and after a short drive.
• Verify the heater blows hot air (a sign coolant is circulating through the heater core).
• Over the next 2-3 drives, recheck the overflow bottle level and top off if needed.
• If you hear belt squeal, re-check belt seating on all pulleys.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $120-$280 (parts only)

You Save: $330-$570 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
