🔧 RAV4 - Water Pump Replacement

You’ll be removing the serpentine belt, draining the coolant, then unbolting and replacing the water pump on your RAV4. This restores proper engine cooling and prevents overheating or leaks.

Difficulty Level: Intermediate | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Always work on a cold engine. Hot coolant can cause severe burns.
• ⚠️ Support the vehicle with jack stands, never rely only on a floor jack.
• ⚠️ Coolant is toxic. Avoid skin contact and keep away from children and pets.
• ⚠️ Wear safety glasses when working under the vehicle or when loosening hoses.
• ⚠️ Disconnect the negative battery cable to prevent accidental starts.
• ⚠️ Properly dispose of old coolant at a recycling center or service shop.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum)
• 🛠️ Wheel chocks
• 🛠️ 10mm socket
• 🛠️ 12mm socket
• 🛠️ 14mm socket
• 🛠️ 3/8" drive ratchet
• 🛠️ 3/8" drive torque wrench (5-75 ft-lbs range)
• 🛠️ Short extension (3" for 3/8" drive)
• 🛠️ 14mm combination wrench
• 🛠️ Flathead screwdriver (medium size)
• 🛠️ Needle-nose pliers
• 🛠️ Drain pan (at least 2-gallon capacity)
• 🛠️ Plastic trim clip remover (specialty)
• 🛠️ Shop towels or rags
• 🛠️ Safety glasses
• 🛠️ Mechanic gloves
• 🛠️ Funnel with small spout
• 🛠️ Coolant funnel or spill-free funnel kit (specialty)
• 🛠️ Small plastic scraper
• 🛠️ Flashlight or work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

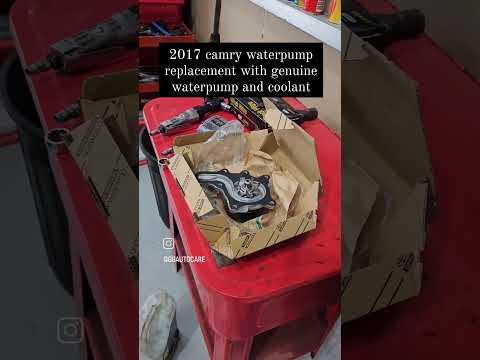

• 🔩 Engine water pump (with gasket or O-ring) - Qty: 1
• 🔩 Serpentine drive belt (A/C and alternator belt) - Qty: 1
• 🔩 Toyota Super Long Life Coolant (pink, pre-mixed 50/50) - Qty: 2-3 gallons
• 🔩 Water pump mounting bolts (optional, replace if corroded) - Qty: 7-8
• 🔩 New hose clamp for any damaged clamp - Qty: 1-2
• 🔩 Anti-seize compound (for bolt threads, optional) - Qty: 1
• 🔩 Brake cleaner or parts cleaner (for cleaning gasket surface) - Qty: 1 can

---

📋 Before You Begin

• Park the RAV4 on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Make sure the engine is completely cool (sitting at least 1-2 hours).
• Open the hood and remove the engine cover if equipped (pull up firmly).
• Disconnect the negative battery terminal using a 10mm socket and move the cable aside.
• Locate the coolant reservoir and radiator cap; do not open while hot.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the front of the RAV4

• Use the floor jack at the front jacking point (under the subframe crossmember) to lift the front of your RAV4.
• Place jack stands under the proper support points on both sides (pinch welds or frame pads).
• Lower the vehicle gently onto the jack stands and leave the jack lightly touching as backup.
• Try to gently rock vehicle to confirm stability.

Step 2: Remove the right front wheel and splash shield

• Use the floor jack to slightly lift the right front corner if needed.
• Remove the wheel lug nuts with a 21mm socket and set the wheel aside. If you do not have this socket, obtain one before proceeding.
• Use the plastic trim clip remover or flathead screwdriver to pop out the plastic clips holding the right front inner fender liner / splash shield.
• Remove any 10mm bolts at the splash shield using a 10mm socket.
• Pull the splash shield back to access the serpentine belt and water pump area.

Step 3: Drain engine coolant

• Place the drain pan under the radiator drain cock (bottom of radiator, passenger side).
• Use needle-nose pliers or fingers to open the plastic drain cock (turn counterclockwise).
• Slowly loosen the radiator cap at the top using your hand to let coolant flow faster.
• Let coolant drain fully, then close the drain cock by hand until snug (do not over-tighten).

Step 4: Remove the serpentine drive belt

• From the wheel well, locate the belt tensioner pulley and its 14mm hex head.
• Place a 14mm combination wrench or 14mm socket with ratchet on the tensioner bolt.
• Rotate the tensioner clockwise to relieve belt tension.
• While holding tension off, slide the belt off one of the top pulleys with your other hand.
• Slowly release the tensioner back to its rest position.
• Remove the belt completely and note the routing. Take a quick photo for reference.

Step 5: Remove components blocking access to the water pump

• Look through the wheel well; the water pump is mounted on the engine block near the crank pulley.
• If needed, remove any plastic covers or small brackets using a 10mm socket and ratchet.
• Disconnect any small hoses or wiring clips from brackets that limit access using needle-nose pliers or fingers.

Step 6: Remove the water pump

• Place the drain pan directly under the water pump area to catch remaining coolant.
• Remove the small coolant hose attached to the pump (if present) by releasing the clamp with needle-nose pliers and twisting the hose gently.
• Using a 10mm socket, remove the water pump mounting bolts. There are usually 7-8 bolts; remember their locations and lengths.
• Gently tap the old water pump with the handle of the flathead screwdriver to break it free. Do not pry hard against the engine block.
• Pull the pump straight off; more coolant will drain. Let it finish draining.

Step 7: Clean the gasket surface

• Use a plastic scraper to carefully remove old gasket material from the engine block surface.
• Spray a small amount of brake cleaner or parts cleaner on a rag and wipe the surface until it is clean and smooth.
• Do not scratch the metal surface or let debris fall inside the openings.
• Surface must be clean, dry, and smooth.

Step 8: Prepare and install the new water pump

• Confirm the new pump matches the old one (bolt holes and pulley size).
• Install the new gasket or O-ring onto the new pump as directed by the part instructions.
• If desired, apply a thin film of anti-seize compound to the threads of the mounting bolts. Do not get any on the gasket surface.
• Position the new pump onto the engine block, aligning all bolt holes.
• Install all mounting bolts by hand first using your fingers to avoid cross-threading.
• Using a 10mm socket and ratchet, snug the bolts in a crisscross pattern.
• Then torque each bolt with the torque wrench to 10 Nm (89 in-lbs, about 7 ft-lbs) in a crisscross pattern.

Step 9: Reconnect hoses and reinstall brackets/covers

• Reconnect any coolant hose to the pump and secure with the clamp using needle-nose pliers.
• Reinstall any brackets you removed using a 10mm socket or 12mm socket as needed and tighten snugly.
• Reinstall any plastic covers using the original clips and bolts with a 10mm socket.

Step 10: Install the new serpentine belt

• Route the new belt according to the belt diagram under the hood or the photo you took earlier.
• Make sure the belt sits fully in the grooves of each pulley.
• Use the 14mm combination wrench or 14mm socket with ratchet to rotate the tensioner clockwise again.
• Slip the belt over the final pulley, then slowly release the tensioner to tension the belt.
• Double-check that the belt is centered on every pulley.

Step 11: Reinstall splash shield and wheel

• Reposition the inner fender splash shield and secure it with the clips and bolts using the plastic trim clip remover and 10mm socket.
• Install the right front wheel and hand-tighten lug nuts.
• Use the floor jack to raise the vehicle slightly, remove the jack stands, then lower the vehicle to the ground.
• Tighten the wheel lug nuts in a star pattern using a 21mm socket to approximately 103 Nm (76 ft-lbs) with the torque wrench.

Step 12: Refill coolant and bleed air from the system

• Make sure the radiator drain cock is closed.
• Remove the radiator cap if not already off.
• Place the coolant funnel or regular funnel in the radiator neck.
• Slowly pour Toyota Super Long Life Coolant (pink) into the radiator until full.
• Fill the coolant reservoir to the “FULL” mark.
• Reconnect the negative battery cable with a 10mm socket.
• Start the engine and set the heater to maximum hot with the fan on medium.
• Let the engine idle. Watch for air bubbles in the funnel and add coolant as the level drops.
• Allow the engine to reach normal operating temperature; the radiator fan should cycle on and off.
• Once no more bubbles appear and the level stabilizes, shut off the engine and let it cool completely.
• Top off the radiator and reservoir again if the level drops.

Step 13: Final checks

• Inspect around the water pump, hoses, and drain cock for any coolant leaks using a flashlight.
• Make sure the belt is running straight and quiet with the engine idling.
• Reinstall the engine cover if removed by pressing it back into place.

---

✅ After Repair

• Take a short test drive of 10-15 minutes, using the heater to confirm warm air output.
• Watch the temperature gauge; it should stay in the normal range.
• Park the RAV4, let it cool fully, and recheck coolant level in the radiator and reservoir; top off if needed.
• Check under the vehicle and around the water pump area again for any new leaks.
• Over the next few days, recheck coolant level and inspect for dried coolant traces.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$750 (parts + labor)

DIY Cost: $120-$250 (parts only)

You Save: $330-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
