🔧 RAV4 - Water Pump Replacement

The water pump on your RAV4 circulates coolant through the engine. If it is leaking, noisy, or failing, replacing it promptly helps prevent overheating and engine damage.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• Let the engine cool completely before opening any cooling system parts. Hot coolant can cause serious burns.
• Use jack stands on a flat surface. Never rely on a floor jack alone.
• Disconnect the negative battery cable before removing the drive belt or working near the cooling fan area.
• Keep coolant away from children and pets. It is toxic.
• Dispose of old coolant properly according to local rules.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• Ratchet
• Breaker bar
• Torque wrench
• Serpentine belt tool
• Drain pan
• Pick tool
• Funnel
• Floor jack (rated 3-ton minimum)
• Jack stands
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Plastic scraper

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump assembly - Qty: 1
• Water pump gasket or seal - Qty: 1
• Engine coolant - Qty: 1 full refill
• Serpentine belt - Qty: 1
• Coolant drain plug washer - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool fully before starting.
• Disconnect the negative battery cable.
• Raise the front of the vehicle and support it securely on jack stands.
• Have a drain pan ready before opening the cooling system.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Remove the radiator drain plug or lower radiator hose and drain the coolant into a drain pan.
• Use a 10mm socket to remove any lower engine splash shield fasteners if needed for access.
• Keep coolant off painted surfaces.

Step 2: Remove the engine cover and intake ducting if needed

• Use a 10mm socket or hand pressure, depending on fastener type, to remove the engine cover and any intake duct pieces blocking access.
• Set all clips aside so they do not get lost.

Step 3: Remove the serpentine belt

• Use a serpentine belt tool or breaker bar to rotate the belt tensioner and release belt tension.
• Slip the belt off the water pump pulley and remove it from the engine bay.
• If the belt is cracked or glazed, replace it now.

Step 4: Remove the water pump pulley and access components

• Use a 10mm socket to remove the water pump pulley bolts while holding the pulley steady.
• Remove the pulley and set it aside.
• Move or remove any brackets or covers that block the pump bolts, using a 10mm socket or 12mm socket as needed.

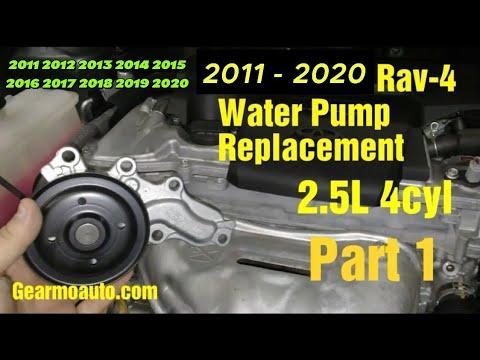

Step 5: Remove the water pump

• Use a 10mm socket to remove the water pump mounting bolts.
• Break the pump free carefully and pull it straight off the engine.
• If it sticks, use a plastic scraper only. Do not pry on sealing surfaces with metal tools.
• Remove the old gasket and clean the mounting surface until it is smooth and dry.

Step 6: Install the new water pump

• Place the new gasket or seal on the new pump.
• Install the water pump by hand first to avoid cross-threading.
• Use a 10mm socket to tighten the mounting bolts evenly in a crisscross pattern.
• Torque to 10 Nm (89 in-lbs).
• Tighten evenly to protect the gasket.

Step 7: Reinstall the pulley and belt

• Install the water pump pulley and tighten the bolts with a 10mm socket.
• Torque to 25 Nm (18 ft-lbs).
• Route the serpentine belt according to the belt routing diagram.
• Use the serpentine belt tool or breaker bar to release tension and slip the belt into place.

Step 8: Reinstall removed parts

• Reinstall any brackets, covers, intake parts, and the lower splash shield using the correct sockets.
• Reinstall the engine cover.
• Lower the vehicle after all tools are removed from the engine bay.

Step 9: Refill and bleed the cooling system

• Use a funnel to refill the cooling system with the correct engine coolant.
• Fill slowly to reduce trapped air.
• Start the engine with the heater set to hot and the blower on low.
• Let it warm up and top off coolant as the level drops.

Step 10: Check for leaks and final torque check

• Inspect the water pump area, hose connections, and drain plug for leaks.
• Verify the belt runs smoothly and stays aligned.
• Recheck coolant level after the engine cools down.

---

✅ After Repair

• Watch the temperature gauge during the first drive.
• Check for coolant leaks after a full heat cycle.
• Recheck coolant level the next morning and top off if needed.
• If you hear belt noise, inspect belt routing and tension again.

---

💰 DIY vs Shop Cost

Shop Cost: $700-$1,200 (parts + labor)

DIY Cost: $120-$280 (parts only)

You Save: $580-$920 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
