🔧 Water Pump - Replacement

Your RAV4 uses an engine-mounted water pump to circulate coolant through the engine and radiator. When it starts leaking, making noise, or moving coolant poorly, the pump must be replaced and the cooling system refilled and bled correctly.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• Let the engine cool completely before opening the cooling system. Hot coolant can cause severe burns.
• Disconnect the negative battery cable before starting. This is required for safe belt and accessory work.
• Use jack stands on a level surface. Never rely on a floor jack alone.
• Keep coolant away from children and pets. It is poisonous.
• Do not run the engine with the serpentine belt removed for more than a few seconds.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• Ratchet
• Breaker bar
• Torque wrench
• Serpentine belt tool (specialty)
• Drain pan
• Funnel
• Pliers
• Flat blade screwdriver
• Floor jack (rated 3-ton minimum)
• Jack stands
• Wheel chocks
• Gloves
• Safety glasses
• Shop towels
• Coolant fill funnel (spill-free) (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump assembly - Qty: 1
• Water pump gasket - Qty: 1
• Engine coolant (Toyota Super Long Life Coolant equivalent) - Qty: 1-2 gallons
• Serpentine belt - Qty: 1
• Thermostat gasket - Qty: 1
• Radiator drain plug washer - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine cool fully before draining coolant.
• Disconnect the negative battery cable.
• Raise the front of the vehicle and support it securely on jack stands.
• If equipped with an underbody splash shield, remove it before starting.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Place a drain pan under the radiator drain area.
• Use pliers or a flat blade screwdriver to open the radiator drain plug, if equipped.
• Drain the coolant until the level is below the water pump.
• Close the drain plug when finished.

Step 2: Remove access components

• Use a 10mm socket to remove the lower engine cover or splash shield.
• If access is tight, remove the right front wheel and inner fender liner with a 10mm socket.
• Keep the fasteners organized.

Step 3: Remove the serpentine belt

• Use a serpentine belt tool to rotate the belt tensioner.
• Slip the belt off one pulley and remove it from the engine bay.
• Inspect the belt now. Replace it if cracked, glazed, or noisy.

Step 4: Remove the water pump pulley

• Use a 12mm socket to remove the water pump pulley bolts.
• Hold the pulley steady by hand while loosening the bolts.
• Remove the pulley and set it aside.
• Do not bend the pulley.

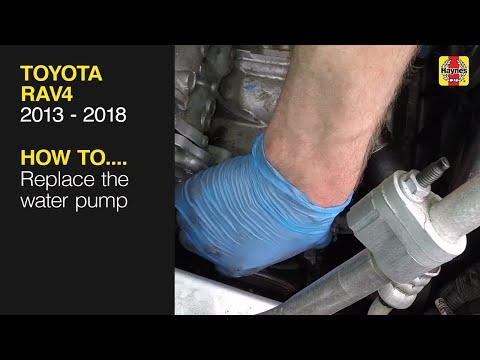

Step 5: Remove the water pump

• Use a 10mm socket to remove the water pump bolts.
• Break the pump loose and pull it straight away from the engine.
• Drain any remaining coolant into the pan.
• Remove the old gasket completely from the mounting surface.

Step 6: Clean and inspect the mounting surface

• Use a plastic scraper and shop towels to clean the engine surface.
• Make sure no gasket material remains.
• Inspect the pump area for cracks, corrosion, or coolant residue.
• Do not gouge the aluminum surface.

Step 7: Install the new water pump

• Install the new gasket on the new pump.
• Position the pump on the engine and start all bolts by hand.
• Use a 10mm socket to snug the bolts evenly in a crisscross pattern.
• Torque to 9 Nm (80 in-lbs).

Step 8: Reinstall the pulley and belt

• Install the water pump pulley and start the bolts by hand.
• Use a 12mm socket to tighten the pulley bolts evenly.
• Torque to 25 Nm (18 ft-lbs).
• Route the serpentine belt according to the belt diagram under the hood.
• Use the serpentine belt tool to relieve tension and slip the belt into place.

Step 9: Reassemble access parts

• Reinstall the inner fender liner and splash shield with a 10mm socket.
• Reinstall the wheel if removed.
• Lower the vehicle back to the ground.

Step 10: Refill and bleed the cooling system

• Use a funnel to fill the system with the correct Toyota-compatible coolant.
• Start the engine and set the heater to full hot.
• Let the engine idle and watch the coolant level.
• Add coolant as the air bubbles escape.
• Once the thermostat opens and heat is steady, install the radiator cap.
• Torque the drain plug only by hand snug; do not overtighten.

Step 11: Check for leaks and confirm operation

• Inspect around the pump, hose connections, and drain plug.
• Check belt tracking and listen for abnormal noise.
• Shut the engine off, let it cool, and recheck coolant level in the reservoir.

---

✅ After Repair

• Recheck coolant level after the first full heat cycle and again the next day.
• Look for dried coolant residue around the pump for the next few drives.
• If the temperature gauge rises above normal, shut the engine off and recheck the bleed procedure.
• Replace the belt if it was worn or contaminated with coolant.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,150 (parts + labor)

DIY Cost: $120-$280 (parts only)

You Save: $530-$870 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
