🔧 Wrangler - Water Pump Replacement

The water pump circulates coolant through your engine and radiator. If the pump leaks, makes bearing noise, or the engine runs hot, replacing it restores proper cooling and prevents overheating damage.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the cooling system hot; wait until fully cool.
• ⚠️ Support the Wrangler on jack stands before going underneath.
• ⚠️ Coolant is toxic; catch it in a drain pan and dispose properly.
• ⚠️ Keep hands/tools clear of the fan and belt path.
• Disconnecting the battery is not required, but it’s OK to remove the negative battery terminal for extra safety.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 3-gallon)
• Funnel
• Shop rags
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• Torque wrench (10-80 ft-lbs range)
• Flathead screwdriver
• Hose clamp pliers (specialty)
• Serpentine belt tool or long 3/8" breaker bar
• Fan clutch wrench set (specialty)
• Plastic gasket scraper
• Brake cleaner spray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket / O-ring (as equipped) - Qty: 1
• Engine coolant (HOAT type, 50/50 mix) - Qty: 2-3 gallons
• Distilled water - Qty: 1-2 gallons (if using concentrate)
• Radiator hose clamp(s) - Qty: 1-2 (optional if originals are weak)
• Serpentine belt - Qty: 1 (optional if cracked/glazed)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (upper radiator hose should feel cool).
• Set the HVAC to heat during bleeding later (this opens coolant flow through the heater core).
• If you raise the front, lift with a floor jack and support with jack stands under the frame.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Place a drain pan under the radiator.
• Remove the radiator cap once cool.
• Open the radiator drain (petcock) using an 8mm socket or turn by hand (varies by radiator).
• Let coolant drain fully, then close the drain.

Step 2: Remove the intake snorkel (if it blocks access)

• Loosen the intake clamps using an 8mm socket or flathead screwdriver.
• Lift the snorkel/ducting out and set it aside.

Step 3: Remove the fan shroud and fan/clutch assembly

• Remove the upper shroud fasteners using a 10mm socket.
• Use a fan clutch wrench set (specialty) to loosen the fan clutch nut at the water pump snout, then lift the fan/clutch out with the shroud.
• Fan threads can be stubborn—steady pressure helps.
• Tool note: A fan clutch wrench is a thin wrench made to fit the large fan nut in tight spaces.

Step 4: Loosen the water pump pulley bolts

• Before removing the belt, crack the pulley bolts loose using a 13mm socket while the belt still holds the pulley from spinning.
• Do not remove them all the way yet—just loosen.

Step 5: Remove the serpentine belt

• Rotate the belt tensioner using a 15mm socket with a ratchet (or a serpentine belt tool).
• Slip the belt off one pulley and slowly release the tensioner.
• If you’re reusing the belt, take a photo of the belt routing before removal.

Step 6: Remove the water pump pulley

• Finish removing the pulley bolts using a 13mm socket.
• Remove the pulley and set it aside.

Step 7: Remove hoses from the water pump

• Use hose clamp pliers (specialty) to slide the clamp back on the hose.
• Twist the hose gently to break it loose, then pull it off.
• Have shop rags ready for leftover coolant.
• Tool note: Hose clamp pliers lock the spring clamp open so you can move it safely.

Step 8: Remove the water pump

• Remove the water pump mounting bolts using a 13mm socket and extensions as needed.
• Pull the pump straight forward and out.
• If it’s stuck, tap gently with the palm of your hand—avoid prying on the sealing surface.

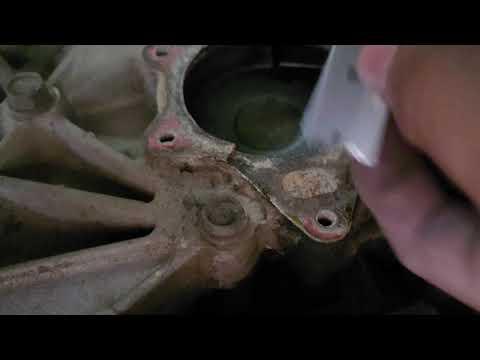

Step 9: Clean the mating surface

• Use a plastic gasket scraper to remove old gasket material from the engine.
• Spray brake cleaner on a rag and wipe until clean and dry.
• Do not gouge the aluminum surface.

Step 10: Install the new water pump

• Install the new gasket/O-ring onto the pump (match orientation exactly).
• Position the pump and start all bolts by hand to avoid cross-threading.
• Tighten bolts evenly in a crisscross pattern using a 13mm socket.
• Torque to 40 Nm (30 ft-lbs) using a torque wrench.

Step 11: Reinstall pulley, belt, fan, and shroud

• Install the pulley and thread bolts by hand using a 13mm socket.
• Snug the pulley bolts, then reinstall the belt using a 15mm socket to rotate the tensioner.
• Torque the pulley bolts using a torque wrench: 28 Nm (21 ft-lbs).
• Reinstall the fan/clutch and shroud using the fan clutch wrench set (specialty) and a 10mm socket for shroud bolts.

Step 12: Refill and bleed the cooling system

• Insert a funnel at the radiator fill and add HOAT coolant 50/50 until full.
• Fill the coolant reservoir to the “FULL COLD” line.
• Start the engine and let it idle with the heater set to hot.
• Watch the temp gauge and add coolant as the level drops.
• Once the thermostat opens (upper hose gets hot) and you have steady heat inside, install the radiator cap.
• Shut off, let cool полностью, then recheck radiator and reservoir and top off as needed.

---

✅ After Repair

• Check for leaks around the pump and hoses with the engine idling.
• Take a 10-15 minute drive, then recheck coolant level after it cools.
• Listen for belt squeal; confirm the belt is seated in all pulley grooves.
• Monitor the temperature gauge for the next few trips.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $120-$260 (parts only)

You Save: $390-$930 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
