🔧 Lancer - Water Pump Replacement

The water pump circulates coolant through your engine and radiator to prevent overheating. Replacing it means draining coolant, removing the drive belt, unbolting the pump, cleaning the sealing surface, and refilling/bleeding the cooling system.

Difficulty Level: Intermediate | Estimated Time: 3-5 hours

Assumption: Your Lancer’s water pump is the belt-driven external pump on the passenger-side/front of the engine (typical for the 2.4L).

---

⚠️ Safety & Precautions

• ⚠️ Never open the radiator cap on a hot engine; hot coolant can spray and burn you.
• ⚠️ Support the car with jack stands on solid, level ground; never rely on a jack alone.
• ⚠️ Coolant is toxic to people and pets; drain into a sealed pan and clean spills immediately.
• ⚠️ Keep fingers/tools away from the belt path; the tensioner is spring-loaded and can snap back.
• ⚠️ Battery disconnect is recommended if you’ll be working near the alternator wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Drain pan (at least 10-quart)
• Funnel
• Clean shop rags
• 19mm socket
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" torque wrench
• 3/8" breaker bar
• Serpentine belt tool (specialty)
• Trim clip remover
• Flat-head screwdriver
• Plastic scraper
• Small wire brush

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket or O-ring seal - Qty: 1
• Coolant (Asian vehicle blue, premixed 50/50) - Qty: 2-3 gallons
• Serpentine drive belt - Qty: 1 (recommended while you’re here)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Let the engine cool completely (ideally overnight).
• Disconnect the negative battery terminal using a 10mm socket if your hands/tools may contact alternator wiring.
• Position your drain pan under the radiator drain area before opening anything.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front of the car and remove the right-front wheel

• Loosen the lug nuts slightly using a 19mm socket and breaker bar.
• Lift the front with a floor jack and set it securely on jack stands.
• Remove the lug nuts with a 19mm socket and remove the wheel.
• Reinstall later and Torque to 100 Nm (74 ft-lbs).

Step 2: Remove the right splash shield (inner fender) for access

• Remove plastic clips and small screws using a trim clip remover and flat-head screwdriver.
• Pull the splash shield out to expose the belt/pulley side of the engine.
• Tip: Put clips in a cup.

Step 3: Drain the coolant

• Place the drain pan under the radiator drain.
• Slowly loosen the radiator cap to relieve any leftover pressure (engine must be cold).
• Open the radiator drain (petcock) carefully and let coolant drain fully into the pan.
• Use a funnel when transferring old coolant into sealed containers for proper disposal.

Step 4: Remove the serpentine (drive) belt

• Locate the belt tensioner (spring-loaded arm that keeps the belt tight).
• Use a serpentine belt tool (specialty) to rotate the tensioner and release belt tension.
• Slide the belt off one pulley first, then remove it fully.
• Tip: Take a photo of belt routing.

Step 5: Remove components blocking the water pump (as needed)

• If an accessory bracket or cover blocks access, remove its bolts using a 12mm socket or 14mm socket.
• Keep bolts organized by location/length on a towel.
• Tip: Hand-start every bolt on reassembly.

Step 6: Remove the water pump pulley (if equipped with a separate pulley)

• Hold the pulley from turning by hand, and remove pulley bolts using a 10mm socket (common) or the size that fits.
• Remove the pulley and set it aside.

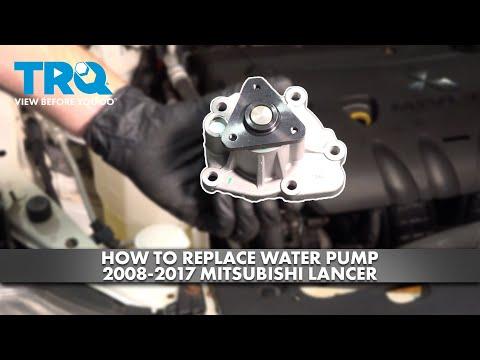

Step 7: Remove the water pump

• Place the drain pan under the pump area; extra coolant will spill.
• Remove the water pump mounting bolts using a 12mm socket.
• Gently break the seal and pull the pump away from the engine.
• Remove the old gasket/O-ring and clean any residue.

Step 8: Clean the sealing surface (this prevents leaks)

• Use a plastic scraper to remove old gasket material without gouging the aluminum.
• Use a small wire brush lightly where needed, then wipe clean with shop rags.
• Do not let debris fall into the opening.

Step 9: Install the new water pump and seal

• Install the new gasket/O-ring onto the new pump (match orientation exactly).
• Position the pump on the engine and hand-thread all bolts first.
• Tighten bolts evenly in a crisscross pattern using a 12mm socket and torque wrench.
• Torque to 11 Nm (97 in-lbs).

Step 10: Reinstall the pulley and belt

• Reinstall the water pump pulley (if removed) using a 10mm socket.
• Torque to 11 Nm (97 in-lbs).
• Route the belt according to your photo, then use the serpentine belt tool (specialty) to rotate the tensioner and slip the belt on.
• Visually confirm the belt ribs are seated straight in every pulley groove.

Step 11: Reinstall splash shield and wheel

• Reinstall the splash shield using the trim clip remover and flat-head screwdriver to set clips/screws.
• Reinstall the wheel using a 19mm socket.
• Lower the car and Torque to 100 Nm (74 ft-lbs) in a star pattern.

Step 12: Refill and bleed the cooling system

• Close the radiator drain securely.
• Fill the radiator with Asian vehicle blue premixed 50/50 coolant using a funnel.
• Fill the overflow reservoir to the “FULL” line.
• Reconnect the battery negative terminal using a 10mm socket.
• Start the engine and set the heater to HOT with the fan on low.
• Let it idle and watch the coolant level; add as needed as air burps out.
• When the radiator fan cycles on/off and heat is steady, shut the engine off and let it cool, then top off radiator and reservoir again.
• Tip: Air pockets can cause overheating.

---

✅ After Repair

• Check for leaks around the water pump while idling and again after a short drive.
• Watch the temperature gauge closely on the first drive; stop if it climbs hot.
• Recheck coolant level the next morning (cold engine) and top off the reservoir if needed.
• Listen for belt squeal; if present, re-check belt seating on all pulleys.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $120-$280 (parts only)

You Save: $530-$770 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
