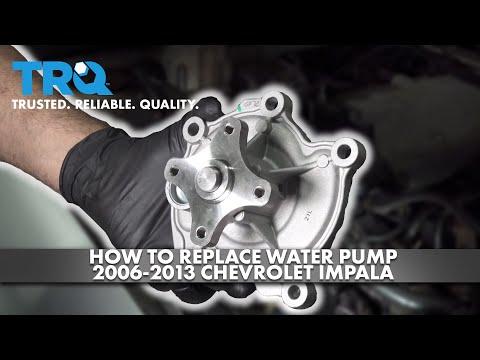

🔧 Impala - Water Pump Replacement

Your Impala’s water pump circulates coolant through the engine and radiator. When it leaks, makes bearing noise, or can’t keep the engine cool, replacement is the correct fix to prevent overheating and engine damage.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant system hot; let the engine cool fully.
• ⚠️ Disconnect the negative battery cable; electric fans can turn on unexpectedly.
• ⚠️ Use jack stands if you raise the front; never rely on a jack alone.
• ⚠️ Keep coolant off the ground; it’s toxic and attractive to pets.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Drain pan (at least 10-quart)
• Funnel
• Shop rags
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• 3/8" breaker bar
• Torque wrench (10-100 ft-lbs range)
• Flat trim tool
• Hose clamp pliers
• Gasket scraper
• Plastic razor blade scraper
• Brake cleaner spray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket / seal - Qty: 1
• Dex-Cool coolant (50/50 premix) - Qty: 2 gallons
• Serpentine belt - Qty: 1 Optional but smart if old/cracked
• Hose clamps - Qty: 2 Optional if originals are weak

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (upper radiator hose should feel cool).
• Disconnect the negative battery cable using a 10mm socket.
• Place a drain pan under the radiator drain area before opening anything.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Remove the coolant reservoir cap slowly by hand (only when cool).
• Position a drain pan (at least 10-quart) under the radiator drain.
• Open the radiator drain and let coolant drain. Use shop rags to control spills.

Step 2: Create access to the water pump area

• If needed, remove the upper intake duct/engine cover pieces using a flat trim tool and 10mm socket.
• Set all fasteners aside in a small tray so nothing gets lost. Take a quick photo first

Step 3: Loosen the water pump pulley bolts (before belt removal)

• With the belt still installed, loosen (do not remove yet) the water pump pulley bolts using a 10mm socket and 3/8" ratchet.
• This is easier because the belt helps hold the pulley from spinning.

Step 4: Remove the serpentine belt

• Rotate the belt tensioner using a 3/8" breaker bar on the tensioner’s square drive.
• Slide the belt off one smooth pulley, then release the tensioner slowly.
• Remove the belt and lay it out in the same orientation. Draw a quick belt-routing sketch

Step 5: Remove the water pump pulley

• Finish removing the pulley bolts using a 10mm socket.
• Remove the pulley and set it aside.
• On reassembly: Torque pulley bolts to 25 Nm (18 ft-lbs).

Step 6: Disconnect hoses at the water pump (as needed)

• Use hose clamp pliers to compress the clamp and slide it back on the hose.
• Twist the hose gently to break it free, then pull it off.
• Catch remaining coolant with the drain pan.

Step 7: Remove the water pump

• Remove the water pump mounting bolts using a 10mm socket and 13mm socket (bolt sizes can vary by location).
• Note bolt locations/lengths as you remove them. Cardboard “bolt map” helps a lot
• Pull the water pump away from the engine. If it’s stuck, tap gently with the handle of your ratchet—do not pry on sealing surfaces.

Step 8: Clean the mating surface

• Use a plastic razor blade scraper and gasket scraper to remove old gasket material.
• Spray a little brake cleaner spray on a rag and wipe until the surface is clean and dry.
• Do not gouge the aluminum sealing surface; it can cause leaks.

Step 9: Install the new water pump and gasket

• Install the new gasket/seal onto the new pump (match orientation exactly).
• Position the pump and start all bolts by hand to avoid cross-threading.
• Tighten evenly in a crisscross pattern using a 10mm socket / 13mm socket.
• Torque water pump bolts to 15 Nm (11 ft-lbs).

Step 10: Reinstall pulley and serpentine belt

• Install the pulley and hand-start the bolts using a 10mm socket.
• Install the belt following your routing sketch and rotate the tensioner using a 3/8" breaker bar.
• Torque pulley bolts to 25 Nm (18 ft-lbs).

Step 11: Refill and bleed the cooling system

• Close the radiator drain.
• Fill the system with Dex-Cool coolant (50/50 premix) using a funnel.
• If your Impala has a coolant air bleeder screw near the thermostat housing, open it using the appropriate socket/ratchet and close it once a steady stream of coolant (no bubbles) comes out.
• Reconnect the negative battery cable using a 10mm socket.
• Start the engine and set HVAC to full heat. Let it idle until the thermostat opens and the heater blows hot.
• Shut off, let cool, then top off the reservoir to the cold mark.

---

✅ After Repair

• Check for leaks around the water pump and hose connections with the engine running.
• Watch the temperature gauge on a 10-15 minute drive; it should stay normal.
• After the engine cools completely, recheck coolant level and top off if needed.
• Properly dispose of old coolant at a local recycling/parts store collection point in Panipat/Haryana.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $90-$220 (parts only)

You Save: $360-$680 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
