🔧 Suburban - Water Pump Replacement

Your Suburban’s water pump circulates coolant through the engine and radiator. If it’s leaking, making noise, or causing overheating, replacing it restores proper cooling and prevents engine damage.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap on a hot engine; hot coolant can spray and burn you.
• ⚠️ Keep hands/tools clear of the fan and belt path while the engine is running.
• ⚠️ Support the truck with jack stands if you raise it; never rely on a jack alone.
• ⚠️ Coolant is toxic—catch it in a drain pan and dispose of it properly.
• ⚠️ Disconnect the negative battery cable to prevent accidental cranking.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Drain pan (at least 4-gallon)
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 1/2" drive breaker bar
• 3/8" drive torque wrench (10-80 ft-lbs)
• 10mm socket
• 13mm socket
• 15mm socket
• 36mm fan clutch wrench
• Fan clutch holding tool (specialty)
• Flat-blade screwdriver
• Hose clamp pliers
• Trim clip remover
• Plastic gasket scraper
• Shop towels
• Funnel

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gaskets - Qty: 2
• Dex-Cool coolant (50/50 premix) - Qty: 4-5 gallons
• Serpentine belt - Qty: 1 (recommended if worn/cracked)
• Upper radiator hose - Qty: 1 (recommended if swollen/soft)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool fully (cool to the touch).
• Use a 10mm socket to disconnect the negative battery cable and move it aside.
• Place a drain pan under the radiator drain area.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Remove the coolant reservoir cap slowly by hand.
• Position the drain pan under the radiator drain (petcock).
• Open the drain using a flat-blade screwdriver (some drains are hand-turn; use the tool only if needed).
• Tip: Save time by draining into a clean pan.

Step 2: Remove the upper fan shroud section

• Remove any intake duct push-clips if they block access using a trim clip remover.
• Remove the upper shroud bolts using a 10mm socket.
• Lift the upper shroud up and out (set it aside).
• Fan shroud = the plastic cover around the fan.

Step 3: Remove the mechanical fan and clutch

• Install the fan clutch holding tool (specialty) to keep the pulley from turning.
• Use a 36mm fan clutch wrench on the large fan clutch nut and turn it counterclockwise to loosen.
• Spin the fan/clutch assembly off and lift it out carefully.
• Reinstall later: Torque to 55 Nm (41 ft-lbs).

Step 4: Remove the serpentine belt

• Use a 15mm socket with a 1/2" drive breaker bar on the belt tensioner and rotate to relieve tension.
• Slip the belt off the water pump pulley first, then remove it from the rest of the pulleys.
• Tip: Take a quick photo of belt routing.

Step 5: Disconnect hoses from the water pump

• Use hose clamp pliers to slide the clamps back.
• Remove the upper radiator hose from the water pump by twisting and pulling (use a flat-blade screwdriver gently if it’s stuck).
• Disconnect the heater hose(s) at the water pump using hose clamp pliers.
• Expect more coolant to drain—keep the drain pan underneath.

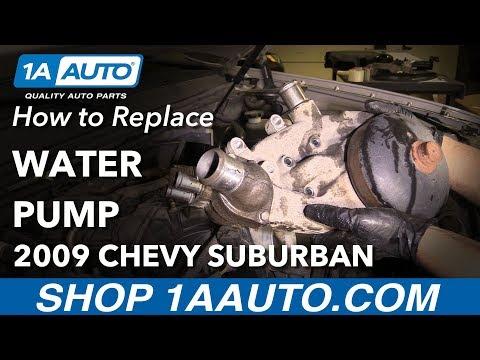

Step 6: Remove the water pump

• Remove the water pump bolts using a 10mm socket.
• Pull the water pump straight forward and out.
• Remove the old gaskets and clean the sealing surfaces using a plastic gasket scraper and shop towels.
• Do not use metal scrapers; they gouge aluminum.

Step 7: Install the new water pump

• Place the new water pump gaskets onto the pump (they locate in grooves/ports).
• Position the pump on the engine and start all bolts by hand.
• Tighten bolts evenly using a 10mm socket.
• Final tighten using a torque wrench: Torque to 30 Nm (22 ft-lbs).

Step 8: Reconnect hoses and reinstall the belt

• Reinstall all hoses and clamps using hose clamp pliers. Make sure clamps sit behind the hose bead.
• Route the serpentine belt back onto the pulleys.
• Use a 15mm socket with a 1/2" breaker bar to move the tensioner and slip the belt fully into place.
• Visually confirm the belt is centered in every pulley groove.

Step 9: Reinstall the fan/shroud

• Thread the fan/clutch assembly back on by hand to avoid cross-threading.
• Hold the pulley with the fan clutch holding tool (specialty) and tighten with the 36mm fan clutch wrench: Torque to 55 Nm (41 ft-lbs).
• Reinstall the upper shroud and tighten bolts using a 10mm socket.

Step 10: Refill and purge air from the cooling system

• Close the radiator drain (petcock) using a flat-blade screwdriver (snug only).
• Use a funnel to fill the coolant reservoir with Dex-Cool 50/50 premix to the “FULL COLD” line.
• Reconnect the negative battery cable using a 10mm socket.
• Start the engine and set HVAC to heat, fan on low.
• Let it idle until warm. Watch the coolant level and top off as it drops.
• When the upper radiator hose gets hot, the thermostat is open—top off again, then install the cap.

---

✅ After Repair

• With the engine fully warm, check for leaks at the pump gasket area and all hose connections.
• Verify the heater blows hot and the temperature gauge stays normal during a 10-15 minute test drive.
• After it cools completely, recheck the reservoir level and top off to “FULL COLD.”
• Look under the truck the next morning for any drips.

---

💰 DIY vs Shop Cost

Shop Cost: $700-$1,100 (parts + labor)

DIY Cost: $150-$350 (parts only)

You Save: $550-$750 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
