🔧 Wrangler - Water Pump Replacement

The water pump circulates coolant through your A/C-heater core, radiator, and engine. If it’s leaking, noisy, or the engine is overheating, replacing the pump restores proper cooling and prevents engine damage.

Difficulty Level: Intermediate | Estimated Time: 2.5-4.0 hours

---

⚠️ Safety & Precautions

• 🛑 Never open the radiator cap on a hot engine; wait until fully cool.
• 🧪 Coolant is toxic—keep it off skin/eyes and away from pets; use a drain pan and dispose properly.
• 🧤 Keep hands clear of the fan and belt area; do not work with the engine running.
• 🔌 If your hands/tools will be near the electric fan wiring, disconnect the negative battery terminal with a 10mm socket.
• 🧱 Support the Jeep securely if you lift it—use jack stands, not just a jack.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 3-gallon)
• Funnel
• Shop rags
• Plastic trim clip tool
• Flat-blade screwdriver
• Pliers
• Hose clamp pliers
• Ratchet (3/8" drive)
• Socket set (8mm-18mm)
• 10mm socket
• 13mm socket
• 15mm socket
• Torque wrench (3/8" drive)
• Serpentine belt tool (specialty)
• 36mm fan clutch wrench (specialty)
• Gasket scraper
• Brake cleaner spray

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket / seal (usually included with pump) - Qty: 1
• Coolant (HOAT-compatible, concentrate or premix) - Qty: 2-3 gallons total mix
• Distilled water (if using concentrate) - Qty: 1-2 gallons
• Serpentine belt - Qty: 1 (optional but smart if cracked)
• Hose clamps - Qty: 2-4 (optional if originals are weak)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (upper radiator hose should feel cool).
• Set the heater controls to full HOT later during bleeding (this helps purge air).
• If you choose to disconnect the battery: use a 10mm socket to remove the negative terminal and keep it from touching the post.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Place a drain pan (at least 3-gallon) under the radiator drain area.
• Slowly remove the radiator cap by hand once the engine is cool.
• Open the drain and let coolant flow into the pan (use pliers if needed for the drain petcock).
• Close the drain when finished.

Step 2: Remove the air intake tube (to create working room)

• Loosen the clamps with a flat-blade screwdriver and remove the intake tube.
• Unclip any small hoses/sensors carefully by hand.

Step 3: Remove the fan shroud and mechanical fan (if equipped)

• Remove the shroud fasteners using a 10mm socket.
• Use a 36mm fan clutch wrench (specialty) to loosen the fan clutch nut (typically loosens counterclockwise).
• Lift the fan and shroud out together if space allows.
• Tip: Go slow—radiator fins bend easily.

Step 4: Release and remove the serpentine belt

• Rotate the belt tensioner using a 15mm socket and a serpentine belt tool (specialty).
• Slip the belt off one pulley, then remove it fully.
• Take a quick photo of the belt routing before removal.

Step 5: Remove the water pump pulley

• Hold the pulley from turning by keeping slight tension on the belt (or hold it by hand carefully).
• Remove the pulley bolts using a 13mm socket.
• Remove the pulley and set it aside.
• During reassembly: Torque to 27 Nm (20 ft-lbs).

Step 6: Disconnect hoses at the water pump

• Use hose clamp pliers to move the clamps back.
• Twist the hose gently to break it free, then pull it off.
• Catch any remaining coolant with the drain pan.

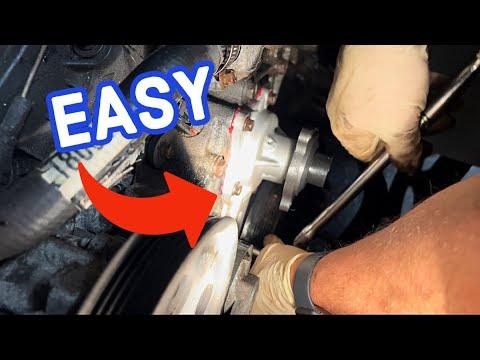

Step 7: Remove the water pump

• Remove the water pump mounting bolts using a 13mm socket.
• Pull the water pump away from the timing cover/engine.
• If it’s stuck, tap gently with the handle of a ratchet (3/8" drive)—do not pry hard against aluminum surfaces.

Step 8: Clean the mating surface

• Use a gasket scraper to remove old gasket material from the engine surface.
• Spray a rag with brake cleaner spray and wipe the surface clean and dry.
• Tip: Don’t gouge the aluminum.

Step 9: Install the new water pump and gasket

• Install the new gasket/seal onto the pump as directed by the pump instructions.
• Position the pump and start all bolts by hand (this prevents cross-threading).
• Tighten bolts evenly in a crisscross pattern using a 13mm socket.
• Final tighten with a torque wrench (3/8" drive): Torque to 40 Nm (30 ft-lbs).

Step 10: Reinstall pulley, belt, fan, and intake

• Install the pulley and bolts using a 13mm socket, then Torque to 27 Nm (20 ft-lbs).
• Route the belt and rotate the tensioner with a 15mm socket and serpentine belt tool (specialty).
• Reinstall the fan/shroud using the 36mm fan clutch wrench (specialty) and shroud fasteners with a 10mm socket.
• Reinstall the intake tube and tighten clamps with a flat-blade screwdriver.

Step 11: Refill and bleed the cooling system

• Make a 50/50 mix if using concentrate (use distilled water).
• Fill the radiator slowly using a funnel, then fill the overflow bottle to the “FULL COLD” line.
• Start the engine and set the heater to HOT with fan on low.
• Let it reach operating temperature; watch for bubbles and keep topping off as the level drops.
• Once the thermostat opens (upper hose gets hot), install the radiator cap.
• Shut down, let it cool fully, then recheck radiator and bottle level and top off.

---

✅ After Repair

• Check for leaks around the water pump and hose connections with the engine running.
• Verify the heater blows hot air (a common sign air is fully bled out).
• After 1-2 drives and a full cool-down, recheck coolant level and inspect for seepage.
• Listen for belt squeal; confirm the belt is centered on all pulleys.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$950 (parts + labor)

DIY Cost: $120-$260 (parts only)

You Save: $430-$690 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
