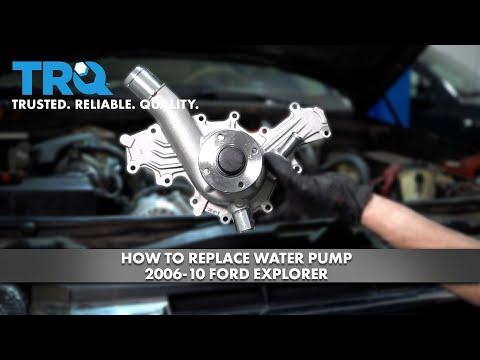

🔧 Explorer - Water Pump Replacement

The water pump circulates coolant through the engine and radiator. If it’s leaking, noisy, or causing overheating, replacing it restores proper cooling and prevents engine damage.

Difficulty Level: Intermediate | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Only work on a fully cool engine; hot coolant can cause severe burns.
• ⚠️ Support the SUV with jack stands if you raise it; never rely on a jack alone.
• ⚠️ Keep hands and tools clear of the fan and belt path.
• ⚠️ Coolant is toxic; catch it in a drain pan and dispose of it properly.
• ⚠️ Battery disconnect is recommended if you’ll be near the fan/alternator wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 3-gallon)
• Funnel
• Shop towels
• Plastic trim clip tool
• Flathead screwdriver
• Pliers (hose clamp pliers)
• Serpentine belt tool or 1/2" breaker bar
• Socket set: 8mm, 10mm, 13mm, 15mm sockets
• Ratchet (3/8")
• Extensions (3/8")
• Torque wrench (10-100 ft-lb range)
• Fan clutch wrench set 36mm (specialty)
• Pulley holding tool (specialty)
• Gasket scraper (plastic)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket/seal - Qty: 1
• Thermostat housing O-ring (recommended while coolant is drained) - Qty: 1
• Engine coolant (Ford Premium Gold / HOAT equivalent) - Qty: 2-3 gallons (mixed 50/50)
• Distilled water - Qty: 1-2 gallons (if not using pre-mix)
• Serpentine belt (recommended if cracked/glazed) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (ideally overnight).
• Open the hood and remove the coolant reservoir/degas bottle cap slowly to release any residual pressure.
• Disconnect the negative battery cable using a 10mm socket.
• Take a quick photo of the belt routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Place a drain pan under the radiator drain (petcock).
• Open the drain using a flathead screwdriver (if equipped) and let coolant drain.
• If flow is slow, loosen the upper radiator hose clamp using pliers (hose clamp pliers) and carefully crack the hose loose to help it drain.

Step 2: Remove the air intake duct (if it blocks access)

• Loosen the intake clamps using a flathead screwdriver.
• Unclip/remove the duct and set it aside.

Step 3: Remove the fan shroud

• Remove the upper shroud fasteners using an 8mm socket and ratchet (3/8").
• Release any push clips using a plastic trim clip tool.
• Lift the shroud up slightly but keep it in the bay for now (it often comes out together with the fan).

Step 4: Remove the mechanical fan/clutch

• Use a fan clutch wrench set 36mm (specialty) to loosen the fan clutch nut at the front of the water pump hub.
• Hold the pulley with a pulley holding tool (specialty) so it doesn’t spin.
• Turn the nut counterclockwise to loosen (standard right-hand threads).
• Lift the fan and shroud out together carefully.
• Move slowly—fan blades crack easily.

Step 5: Loosen the water pump pulley bolts

• Before removing the belt, slightly loosen the water pump pulley bolts using a 10mm socket and ratchet (3/8").
• Do not remove them yet—just break them loose.

Step 6: Remove the serpentine belt

• Rotate the belt tensioner using a serpentine belt tool or 1/2" breaker bar.
• Slip the belt off one pulley and slowly release the tensioner.
• Remove the belt from the front of the engine bay.

Step 7: Remove the water pump pulley

• Remove the loosened pulley bolts using a 10mm socket.
• Remove the pulley and set it aside.

Step 8: Disconnect hoses from the water pump

• Use pliers (hose clamp pliers) to slide the clamps back.
• Twist the hoses by hand to break them loose, then pull them off.
• Catch remaining coolant with the drain pan and use shop towels to control spills.

Step 9: Remove the water pump

• Remove the water pump mounting bolts using a 10mm socket and 13mm socket with a ratchet (3/8") and extensions (3/8") as needed.
• Note bolt locations and lengths (lay them out on cardboard in the same pattern).
• Pull the water pump straight off. If stuck, tap gently with the handle of your ratchet—do not pry hard on aluminum surfaces.

Step 10: Clean the gasket surface

• Use a gasket scraper (plastic) to remove old gasket material from the timing cover/engine surface.
• Wipe clean with shop towels. The surface must be clean and dry.
• Do not gouge the aluminum sealing surface.

Step 11: Install the new water pump

• Install the new gasket/seal onto the new pump.
• Position the pump and hand-start all bolts.
• Tighten bolts evenly in a crisscross pattern using a torque wrench: Torque to 18 Nm (13 ft-lb).

Step 12: Reinstall pulley, belt, fan, and shroud

• Reinstall the pulley and start the bolts by hand using a 10mm socket.
• Snug the bolts, then install the serpentine belt using a serpentine belt tool or 1/2" breaker bar.
• Torque the pulley bolts with a torque wrench: Torque to 25 Nm (18 ft-lb).
• Reinstall the fan/clutch using the fan clutch wrench set 36mm (specialty) and hold the pulley with the pulley holding tool (specialty): Torque to 68 Nm (50 ft-lb).
• Reinstall the fan shroud fasteners using an 8mm socket.

Step 13: Refill and bleed the cooling system

• Close the radiator drain (petcock).
• Fill the degas bottle using a funnel with Ford Premium Gold / HOAT equivalent 50/50 mix until it reaches the cold fill mark.
• Reconnect the negative battery cable using a 10mm socket.
• Start the engine and set the heater to max heat.
• Let it idle and warm up; add coolant as the level drops.
• Once warm, shut it off, let it cool, and recheck the level (top off to the cold mark).

---

✅ After Repair

• Check for leaks around the pump and hose connections with the engine idling.
• Verify the heater blows hot (a sign coolant is circulating properly).
• Watch the temperature gauge on a short test drive (10-15 minutes).
• After the next full cool-down, recheck coolant level and top off if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $90-$220 (parts only)

You Save: $560-$830 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
