🔧 Frontier - Water Pump Replacement

On your Frontier, the water pump is driven by the timing chain and sits behind the front timing cover. Replacing it is a bigger job than most water pumps because you must remove the front cover and carefully manage the timing chain tensioners to avoid a timing slip.

Difficulty Level: Advanced | Estimated Time: 6-10 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine; hot coolant can cause severe burns.
• ⚠️ Support the truck with jack stands; never rely on a floor jack.
• ⚠️ Keep fingers clear of the fan and belts when rotating the engine.
• ⚠️ Timing components: if the chain jumps time, the engine may not run and internal damage is possible.
• 🔋 Disconnect the negative battery cable before starting.
• 🧯 Clean spills immediately; coolant is toxic to pets and people.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (10-quart minimum)
• Funnel
• Coolant spill-free funnel kit (specialty)
• Shop towels
• Plastic trim tool
• Razor scraper
• Torque wrench (10-250 ft-lb range)
• Breaker bar (1/2-inch drive)
• Ratchet (3/8-inch drive)
• Ratchet (1/2-inch drive)
• Socket set (8mm-19mm)
• 10mm socket
• 12mm socket
• 14mm socket
• 19mm socket
• Wrench set (10mm-19mm)
• Torx bit set
• Hex key set
• Harmonic balancer puller kit (specialty)
• Serpentine belt tool (specialty)
• Gasket sealant RTV (applicator nozzle)
• Pry bar
• Rubber mallet
• Paint marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump O-ring / gasket - Qty: 1
• Front timing cover RTV sealant (engine RTV) - Qty: 1
• Engine coolant (Nissan Long Life Antifreeze/Coolant blue premix equivalent) - Qty: 2-3 gallons
• Serpentine drive belt - Qty: 1
• Thermostat with gasket - Qty: 1
• Radiator cap - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Disconnect the negative battery terminal using a 10mm socket.
• Raise the front and support with jack stands under the frame.
• Take photos as you go. They help a lot during reassembly.
• Assumption: Stock VQ40DE layout; no aftermarket accessories blocking the front cover.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Place a drain pan (10-quart minimum) under the radiator drain.
• Open the radiator cap slowly, then open the drain cock and drain coolant.
• Remove the lower splash shield if equipped using a 10mm socket and plastic trim tool.

Step 2: Remove the intake duct and fan shroud

• Loosen the intake tube clamps using a 8mm socket (or screwdriver style clamp head) and remove the duct.
• Remove the upper fan shroud fasteners using a 10mm socket.
• If equipped with a mechanical fan/clutch, remove it carefully using the appropriate wrench set (10mm-19mm).
• Fan edges are sharp—wear gloves.

Step 3: Remove the serpentine belt

• Use a serpentine belt tool (specialty) to rotate the belt tensioner and slip the belt off.
• Set the belt aside; replacing it now is recommended.

Step 4: Remove front accessories blocking the timing cover

• Disconnect and unbolt components that block access (as equipped): alternator, power steering pump bracket, and any front brackets.
• Use a 10mm socket, 12mm socket, and 14mm socket as needed.
• Keep bolts organized by location; front cover bolts are different lengths.

Step 5: Remove the crankshaft pulley (harmonic balancer)

• Remove the crank bolt using a 19mm socket and breaker bar (1/2-inch drive).
• If needed, use a harmonic balancer puller kit (specialty) to pull the pulley straight off.
• Reinstall later and tighten the crank bolt to Torque to 177 Nm (131 ft-lbs).
• Do not pry against the timing cover.

Step 6: Set the engine to Top Dead Center (TDC) and mark components

• Rotate the engine by hand using a 19mm socket on the crank bolt until cylinder #1 is at TDC on compression.
• Use a paint marker to add your own alignment marks on the timing chain and sprockets.
• Your marks are backup insurance.

Step 7: Remove the front timing cover

• Remove front cover bolts using a 10mm socket and 12mm socket.
• Gently break the RTV seal with a plastic trim tool and light taps from a rubber mallet.
• Do not gouge aluminum sealing surfaces; avoid using a screwdriver as a wedge.

Step 8: Release timing chain tension at the water pump

• Locate the timing chain tensioner that applies tension to the chain path near the water pump.
• Use the correct socket set (8mm-19mm) to remove the tensioner fasteners.
• What a tensioner is: a spring/oil-fed device that keeps the chain tight.
• Compress and pin the tensioner if applicable using a hex key set (some designs accept a small pin/Allen key).

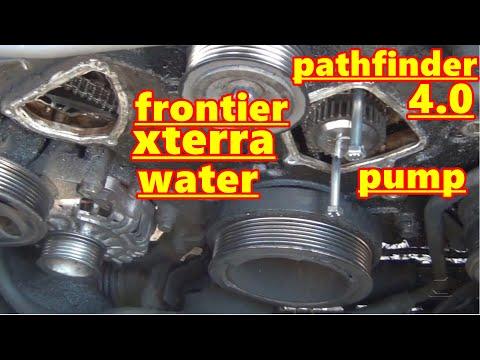

Step 9: Remove the water pump

• Remove the water pump bolts using a 10mm socket.
• Remove the pump and O-ring/gasket.
• Clean the mating surfaces with a razor scraper and shop towels until they are smooth and dry.
• Do not let debris fall into the engine.

Step 10: Install the new water pump

• Install the new O-ring/gasket onto the new pump.
• Position the pump and start all bolts by hand.
• Tighten bolts evenly using a torque wrench.
• Water pump bolts: Torque to 12 Nm (106 in-lbs).

Step 11: Reinstall timing components and confirm timing marks

• Reinstall the tensioner(s) using the correct socket set (8mm-19mm).
• Remove the retaining pin/Allen key (if used) so the tensioner applies tension.
• Rotate the engine by hand two full turns with a 19mm socket and re-check that timing marks line up.
• If it binds, stop and re-check timing.

Step 12: Reseal and reinstall the front timing cover

• Clean the cover and engine sealing surfaces using a razor scraper and shop towels.
• Apply a continuous bead of front timing cover RTV sealant (engine RTV) per the RTV manufacturer instructions.
• Install the cover and hand-start all bolts.
• Tighten cover bolts evenly using a torque wrench; common small cover fasteners are typically Torque to 12 Nm (106 in-lbs).
• Even tightening prevents leaks.

Step 13: Reinstall crank pulley and accessories

• Install the crank pulley fully seated.
• Install the crank bolt using a 19mm socket and tighten to Torque to 177 Nm (131 ft-lbs).
• Reinstall brackets/accessories using a 10mm socket, 12mm socket, and 14mm socket.

Step 14: Install the belt, shroud, and intake duct

• Route the new belt correctly and release tension using the serpentine belt tool (specialty).
• Reinstall the fan/shroud using a 10mm socket.
• Reinstall the intake duct and tighten clamps using an 8mm socket.

Step 15: Refill and bleed the cooling system

• Close the radiator drain.
• Fill with engine coolant (Nissan Long Life Antifreeze/Coolant blue premix equivalent) using a coolant spill-free funnel kit (specialty).
• Start the engine and set the heater to full hot.
• Let the engine reach operating temperature and watch for air bubbles; top off as needed.
• Shut down, cool completely, then recheck the radiator and reservoir levels.

---

✅ After Repair

• Inspect for coolant leaks around the timing cover and water pump area with the engine idling.
• Verify the belt tracks straight and does not squeal.
• Road test 10-15 minutes, then recheck coolant level after cool-down.
• Check for any warning lights and unusual noises from the front cover area.

---

💰 DIY vs Shop Cost

Shop Cost: $1,100-$2,000 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $650-$1,700 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 6-10 hours.

---
