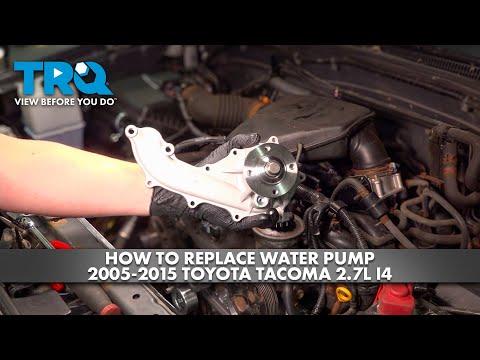

🔧 Tacoma - Water Pump Replacement

Replacing the water pump on your Tacoma means draining the cooling system, removing the drive belt, unbolting the old pump, cleaning the sealing surface, and installing a new pump with a fresh gasket. The water pump moves coolant through the engine, so a leaking or noisy pump should be replaced before it causes overheating.

Difficulty Level: Intermediate | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Work only on a completely cool engine. Hot coolant can cause serious burns.
• ⚠️ Disconnect the negative battery cable before working near the fan, belt, and electrical connectors.
• ⚠️ Never remove the radiator cap when the engine is hot.
• ⚠️ Keep coolant away from children and pets. It is toxic and can taste sweet.
• ⚠️ Support the vehicle safely if raising the front. Never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 3/8-inch ratchet
• 3/8-inch extension set
• 14mm box-end wrench
• 10mm wrench
• Serpentine belt tool (specialty)
• Flat-blade screwdriver
• Plastic gasket scraper
• Drain pan, 2-gallon minimum
• Funnel with long neck
• Torque wrench, 5-50 ft-lb range
• Pliers
• Shop towels
• Floor jack, rated 2-ton minimum
• Jack stands, rated 2-ton minimum
• Wheel chocks
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine water pump - Qty: 1
• Water pump gasket - Qty: 1
• Toyota-compatible coolant, red or pink premixed 50/50 - Qty: 2 gallons
• Serpentine drive belt - Qty: 1
• Thermostat gasket - Qty: 1 if thermostat housing is disturbed

---

📋 Before You Begin

• Park your Tacoma on level ground and let the engine cool fully.
• Set the parking brake and place wheel chocks behind the rear wheels.
• Open the hood and remove the radiator cap only after the engine is cold.
• Use a 10mm wrench to disconnect the negative battery cable.
• If extra space is needed, raise the front with a floor jack, rated 2-ton minimum and support it with jack stands, rated 2-ton minimum.
• A serpentine belt is the single long belt that drives accessories like the alternator and water pump.
• A torque wrench tightens bolts to the correct tightness so small aluminum engine parts are not damaged.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the Engine Splash Shield

• Put on safety glasses and nitrile gloves.
• Use a 10mm socket and 3/8-inch ratchet to remove the lower engine splash shield fasteners.
• Set the shield and bolts aside in order.
• Take photos before removing parts.

Step 2: Drain the Coolant

• Place a drain pan, 2-gallon minimum under the radiator drain area.
• Use a flat-blade screwdriver or your fingers to open the radiator drain cock slowly.
• Remove the radiator cap if it has not already been removed, then allow the coolant to drain.
• Close the radiator drain cock once the coolant flow slows to a drip.

Step 3: Remove the Fan Shroud

• Use a 10mm socket, 3/8-inch ratchet, and 3/8-inch extension set to remove the upper fan shroud bolts.
• Use pliers to release any hose clips attached to the fan shroud.
• Lift the fan shroud slightly and leave it loose around the fan for now.

Step 4: Loosen the Cooling Fan

• Use a 12mm wrench or 12mm socket to loosen the four fan clutch nuts at the water pump pulley.
• If the pulley turns, hold another nut with a 12mm wrench while loosening the opposite nut.
• Remove the fan and shroud together by lifting them straight upward.
• Do not bend radiator fins.

Step 5: Remove the Serpentine Belt

• Draw a quick belt routing picture or take a clear photo with your phone.
• Use a serpentine belt tool (specialty) or 14mm box-end wrench on the belt tensioner.
• Rotate the tensioner to relieve belt tension, then slide the belt off the pulleys.
• Slowly release the tensioner. Do not let it snap back.

Step 6: Remove the Water Pump Pulley

• Use a 12mm socket and 3/8-inch ratchet to remove the water pump pulley bolts.
• If the pulley spins, hold it by hand with a shop towel for grip.
• Remove the pulley and set it aside.

Step 7: Remove Hoses and Brackets Near the Pump

• Use pliers to squeeze and slide back any spring hose clamps attached to the water pump area.
• Twist hoses gently by hand to break them loose, then pull them off.
• Use a 10mm socket or 12mm socket to move any small brackets blocking pump access.
• Mark hose locations with tape if needed.

Step 8: Remove the Old Water Pump

• Use a 10mm socket, 12mm socket, 3/8-inch ratchet, and 3/8-inch extension set to remove the water pump bolts.
• Note bolt locations because some bolts may be different lengths.
• Gently tap the pump by hand or wiggle it loose. Do not pry hard against the aluminum timing cover.
• Remove the water pump and old gasket.

Step 9: Clean the Sealing Surface

• Use a plastic gasket scraper to clean the engine-side sealing surface.
• Use shop towels to wipe away old coolant and gasket material.
• Do not gouge or scratch the aluminum surface.
• Clean metal seals better.

Step 10: Install the New Water Pump

• Place the new water pump gasket onto the new engine water pump.
• Position the pump by hand and start all bolts finger-tight first.
• Use a 10mm socket, 12mm socket, and torque wrench, 5-50 ft-lb range to tighten the water pump bolts evenly in a crisscross pattern.
• Torque water pump bolts to 21 Nm (15 ft-lbs).

Step 11: Reinstall Hoses, Brackets, and Pulley

• Use pliers to reinstall the hose clamps in their original positions.
• Use a 10mm socket or 12mm socket to reinstall any brackets removed earlier.
• Install the water pump pulley by hand.
• Use a 12mm socket and torque wrench, 5-50 ft-lb range to tighten the pulley bolts.
• Torque water pump pulley bolts to 21 Nm (15 ft-lbs).

Step 12: Reinstall the Serpentine Belt

• Route the belt over the pulleys using your photo or belt diagram.
• Use the serpentine belt tool (specialty) or 14mm box-end wrench to rotate the tensioner.
• Slide the belt onto the final pulley, then slowly release the tensioner.
• Check that the belt ribs sit fully inside every pulley groove.

Step 13: Reinstall the Fan and Shroud

• Lower the fan and fan shroud together carefully into place.
• Use a 12mm socket and torque wrench, 5-50 ft-lb range to tighten the fan clutch nuts.
• Torque fan clutch nuts to 18 Nm (13 ft-lbs).
• Use a 10mm socket to reinstall the fan shroud bolts.

Step 14: Refill the Cooling System

• Use a funnel with long neck to fill the radiator with Toyota-compatible coolant, red or pink premixed 50/50.
• Fill the coolant reservoir to the “FULL” line.
• Reconnect the negative battery cable with a 10mm wrench.
• Leave the radiator cap off for the first warm-up.

Step 15: Bleed Air from the Cooling System

• Start the engine and set the heater to full hot with the fan on low.
• Watch the coolant level in the radiator. Add coolant with the funnel with long neck as the level drops.
• Let the engine reach normal operating temperature and wait for warm air from the vents.
• When bubbles stop appearing, install the radiator cap by hand.
• Check for leaks around the water pump, hoses, and radiator drain.

Step 16: Reinstall the Splash Shield

• Shut the engine off and let it cool enough to work safely.
• Use a 10mm socket and 3/8-inch ratchet to reinstall the lower splash shield.
• If the vehicle was raised, remove the jack stands, rated 2-ton minimum and lower it with the floor jack, rated 2-ton minimum.

---

✅ After Repair

• ✅ Drive your Tacoma gently for 10-15 minutes while watching the temperature gauge.
• ✅ Let the engine cool completely, then recheck the radiator and reservoir coolant levels.
• ✅ Look under the front of the engine for any coolant drips.
• ✅ Recheck the serpentine belt alignment with a flashlight.
• ✅ Dispose of old coolant at a recycling center or auto parts store that accepts used coolant.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$850 (parts + labor)

DIY Cost: $120-$260 (parts only)

You Save: $430-$590 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-4 hours.

---
