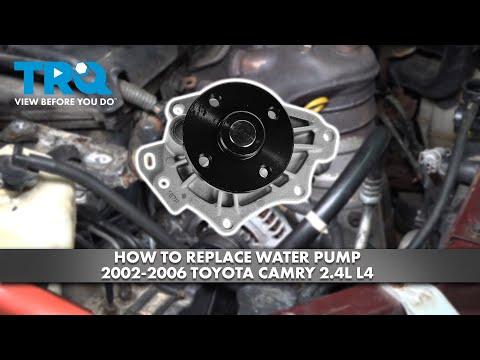

🔧 Camry - Water Pump Replacement

The water pump circulates coolant through your Camry’s engine and radiator. When it leaks or the bearing wears out, you can lose coolant and overheat, so replacing it promptly prevents engine damage.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Only work on a fully cool engine; hot coolant can cause severe burns.
• ⚠️ Support the car with jack stands before going underneath; never rely on a floor jack alone.
• ⚠️ Keep coolant off the ground; it’s toxic and attractive to pets.
• ⚠️ Keep hands clear of the belt path; do not start the engine with tools in the engine bay.
• ⚠️ Battery disconnect is not required, but keep the key out of the ignition while working.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Drain pan (at least 2-gallon)
• Funnel
• Shop rags
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• Torque wrench (10–80 ft-lbs range)
• Flat-blade screwdriver
• Pliers
• Trim clip remover
• Serpentine belt tool (specialty)
• Plastic gasket scraper

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Water pump - Qty: 1
• Water pump gasket / O-ring (as supplied with pump) - Qty: 1
• Engine coolant (Toyota-compatible long-life) - Qty: 2 gallons
• Serpentine drive belt - Qty: 1 (recommended while you’re here)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool completely (overnight is best).
• Set your HVAC to HOT later during bleeding; this helps push air out of the heater core.
• Plan for coolant capture: have a drain pan ready (a wide container that catches drained coolant).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and access the passenger-side engine area

• Use a floor jack (rated 2-ton minimum) to lift the front of the car at the front jacking point.
• Set the car onto jack stands (rated 2-ton minimum) at the proper support points.
• Use a trim clip remover and 10mm socket to remove the lower splash shield/under cover as needed for access.

Step 2: Drain the coolant

• Place a drain pan (at least 2-gallon) under the radiator drain.
• Open the radiator cap slowly (engine cold only).
• Open the radiator drain cock using a flat-blade screwdriver (if needed) and drain the coolant into the pan.
• Close the drain cock when finished (snug only—do not over-tighten).

Step 3: Remove the serpentine belt

• Locate the belt tensioner near the belt path.
• Use a serpentine belt tool (specialty) to rotate the tensioner and release belt tension (this is a long-handled tool made to move the tensioner safely).
• Slide the belt off one pulley, then remove it from the rest of the pulleys.
• Take a quick photo of belt routing.

Step 4: Remove the water pump pulley

• Hold the pulley from turning by keeping tension on it with your hand while loosening bolts.
• Use a 10mm socket and 3/8" drive ratchet to remove the water pump pulley bolts.
• Remove the pulley.
• During reassembly: Torque the pulley bolts to 21 Nm (15 ft-lbs).

Step 5: Remove the water pump

• Place the drain pan under the pump area; more coolant will spill.
• Use a 10mm socket, 12mm socket, ratchet, and extensions to remove the water pump mounting bolts.
• Pull the pump straight off the engine.
• Remove the old gasket/O-ring (depending on the pump design).

Step 6: Clean the sealing surface

• Use a plastic gasket scraper to clean the engine’s water pump sealing surface.
• Wipe clean with shop rags.
• Don’t gouge the aluminum surface.

Step 7: Install the new water pump

• Install the new gasket/O-ring onto the new pump (match the original orientation).
• Position the pump onto the engine.
• Hand-thread all mounting bolts first to avoid cross-threading.
• Use a torque wrench (10–80 ft-lbs range) to tighten the water pump bolts evenly in a crisscross pattern.
• Torque the water pump bolts to 10 Nm (89 in-lbs).

Step 8: Reinstall the pulley and serpentine belt

• Install the pulley and start all pulley bolts by hand.
• Use a torque wrench to tighten: Torque the pulley bolts to 21 Nm (15 ft-lbs).
• Route the belt back onto all pulleys.
• Use the serpentine belt tool (specialty) to rotate the tensioner and slip the belt on fully.
• Visually confirm the belt is centered on every pulley groove.

Step 9: Reinstall splash shield and lower the car

• Reinstall the under cover using the 10mm socket and trim clip remover.
• Raise the car slightly with the floor jack, remove the jack stands, then lower to the ground.

Step 10: Refill and bleed the cooling system

• Insert a funnel and refill the radiator with Toyota-compatible long-life coolant.
• Fill the coolant reservoir to the “FULL” line.
• Start the engine and set the heater to HOT with the fan on low.
• Let it idle and watch the temperature gauge; as the thermostat opens, the coolant level may drop—add coolant as needed.
• When no more bubbles appear and heat is steady, reinstall the radiator cap.

---

✅ After Repair

• With the engine running, inspect around the new water pump for leaks using a bright light and shop rags.
• Take a short test drive, then re-check for leaks and re-check the coolant reservoir level after the engine cools.
• Recheck the reservoir level again the next morning (cold engine) and top off if needed.
• If the temperature rises or heater blows cold, shut it off and re-bleed—there’s likely trapped air.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $90-$220 (parts only)

You Save: $360-$630 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
